Connector Terminal Identification
›
Generator
›
Grand PRIX
Grand PRIX

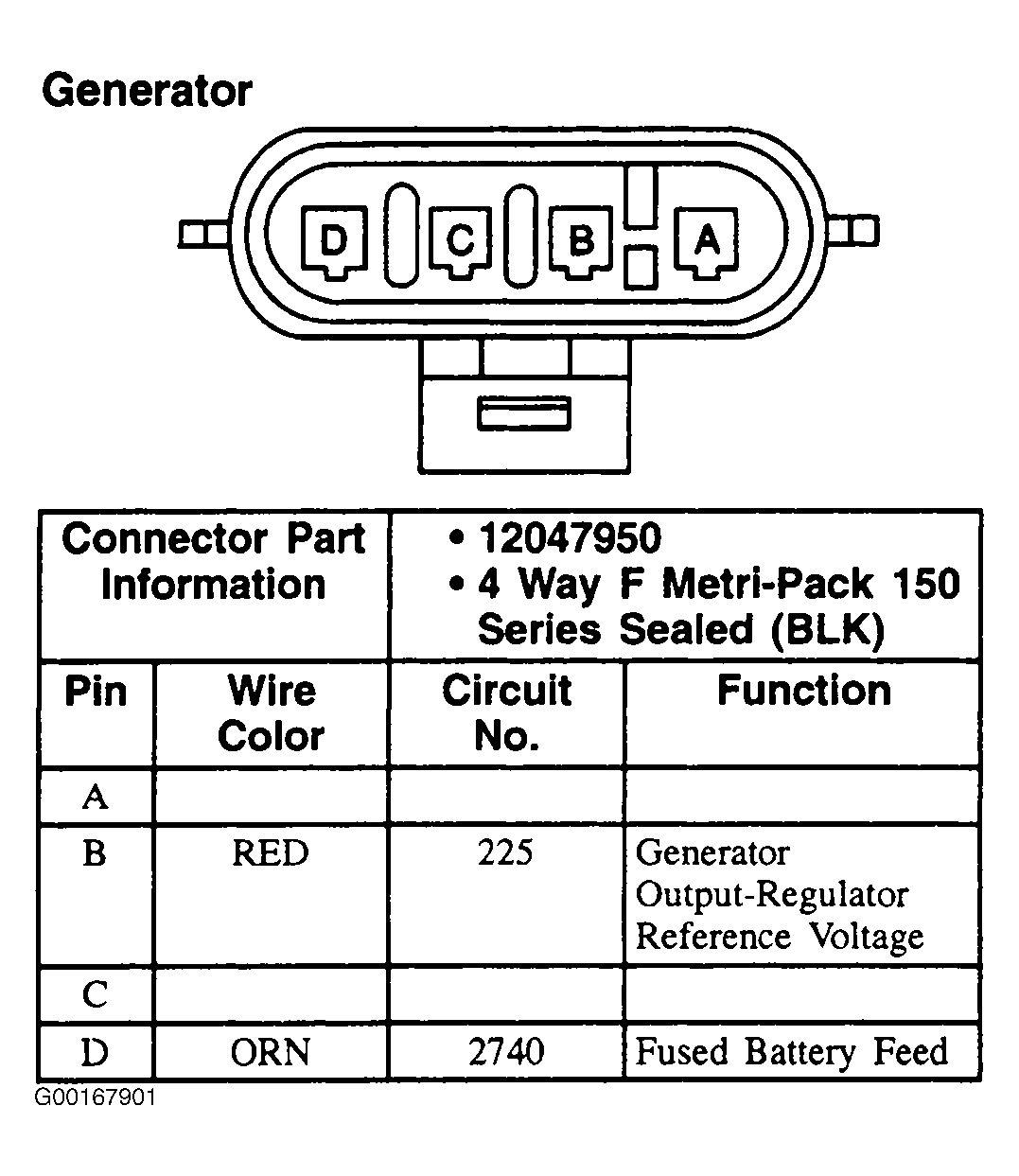

Fig 1: Generator (Grand Prix) - 4-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
