Blower Motor Control Module C2

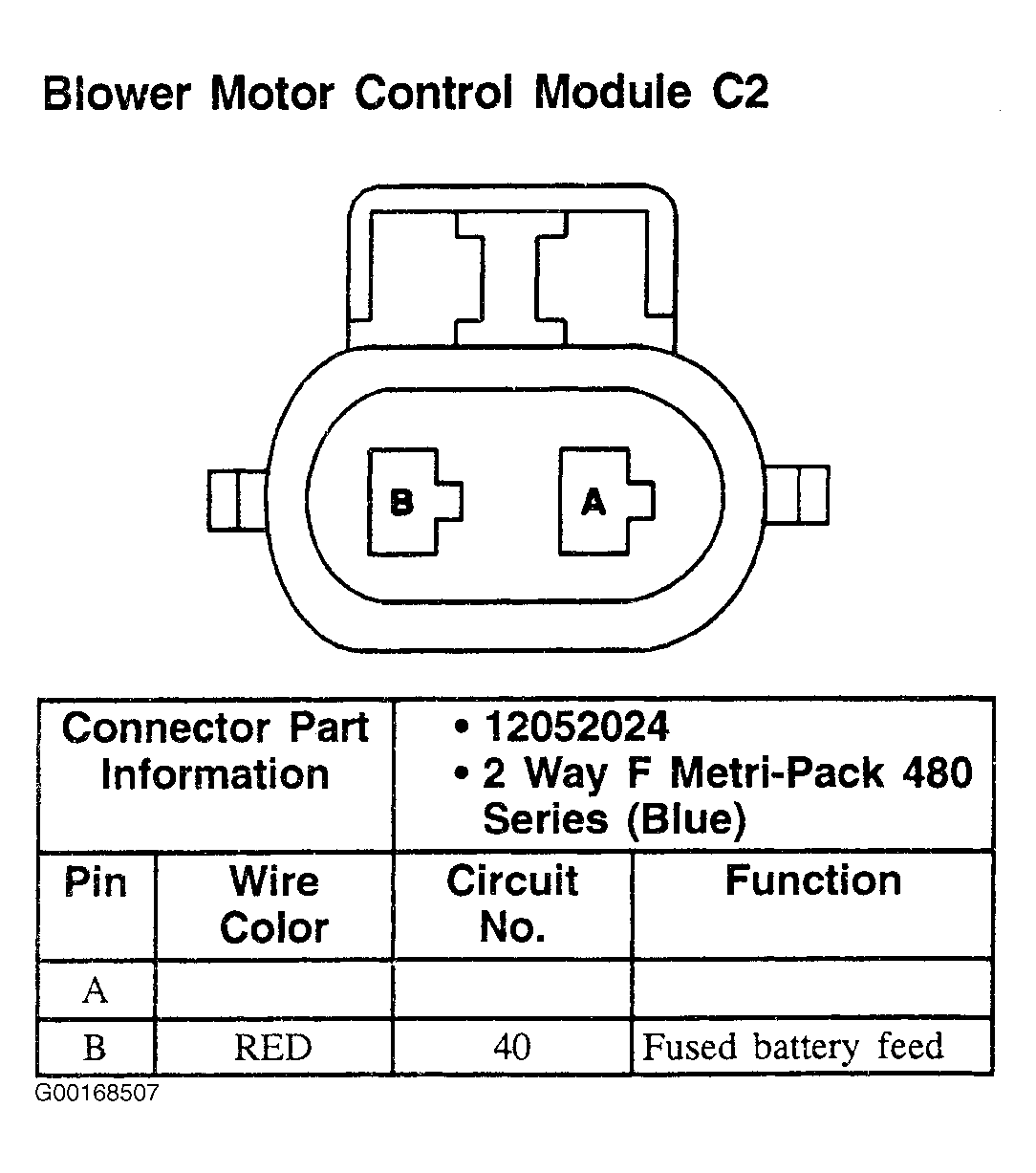

Fig 1: Blower Motor Control Module C2 (Cutlass Supreme, Lumina & Monte Carlo) - 2-Pin Connector (Blue)
G00168507Courtesy of GENERAL MOTORS CORP.
