Connector Terminal Identification
›
Brake Motor
›
Century & Regal
Century & Regal

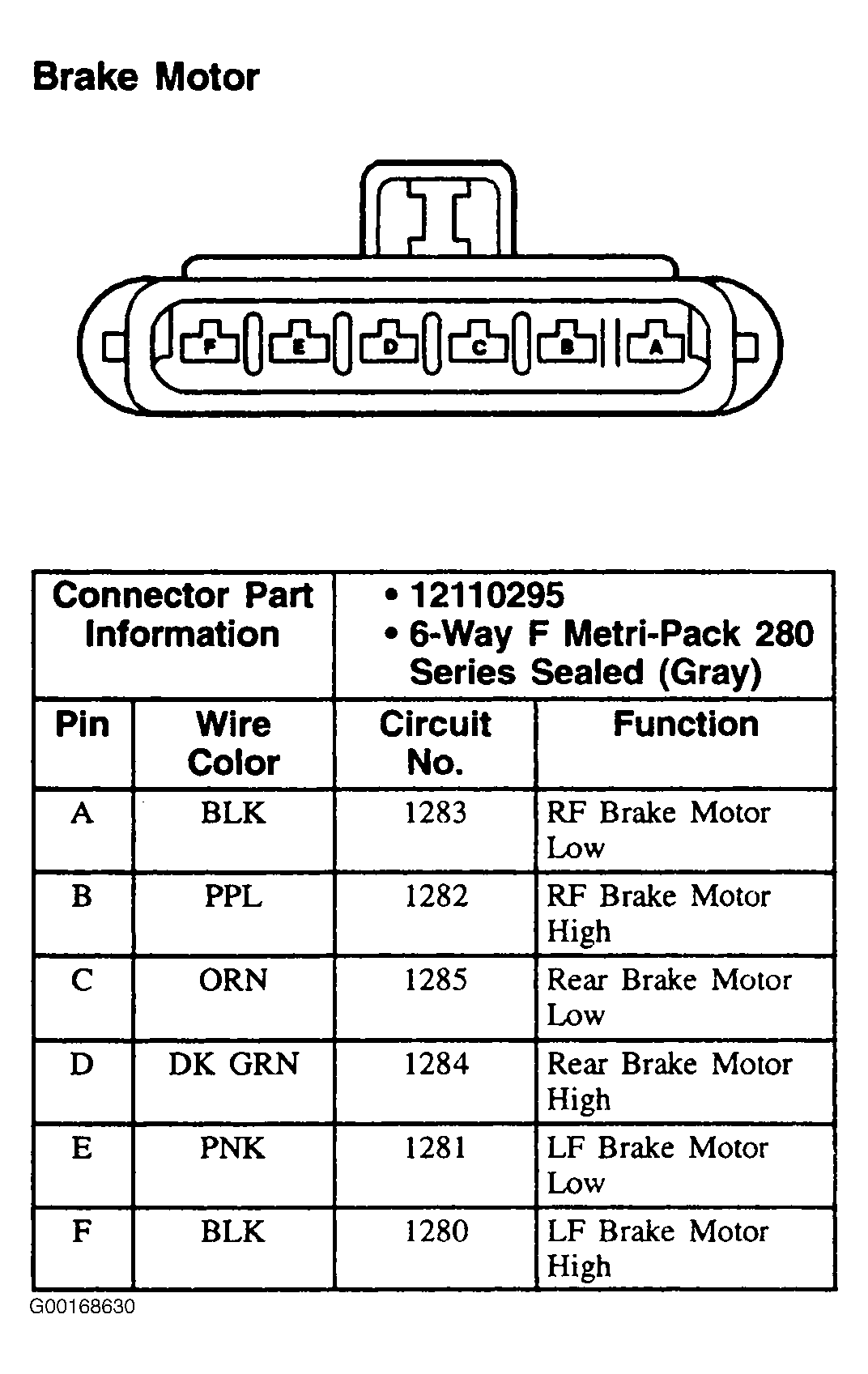

Fig 1: Brake Motor (Century & Regal) - 6-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
