Connector Terminal Identification
›
Electric Actuator (HVAC System)
›
Grand PRIX
›
Left Hand - A/C Front, Automatic Temperature Control
Left Hand - A/C Front, Automatic Temperature Control

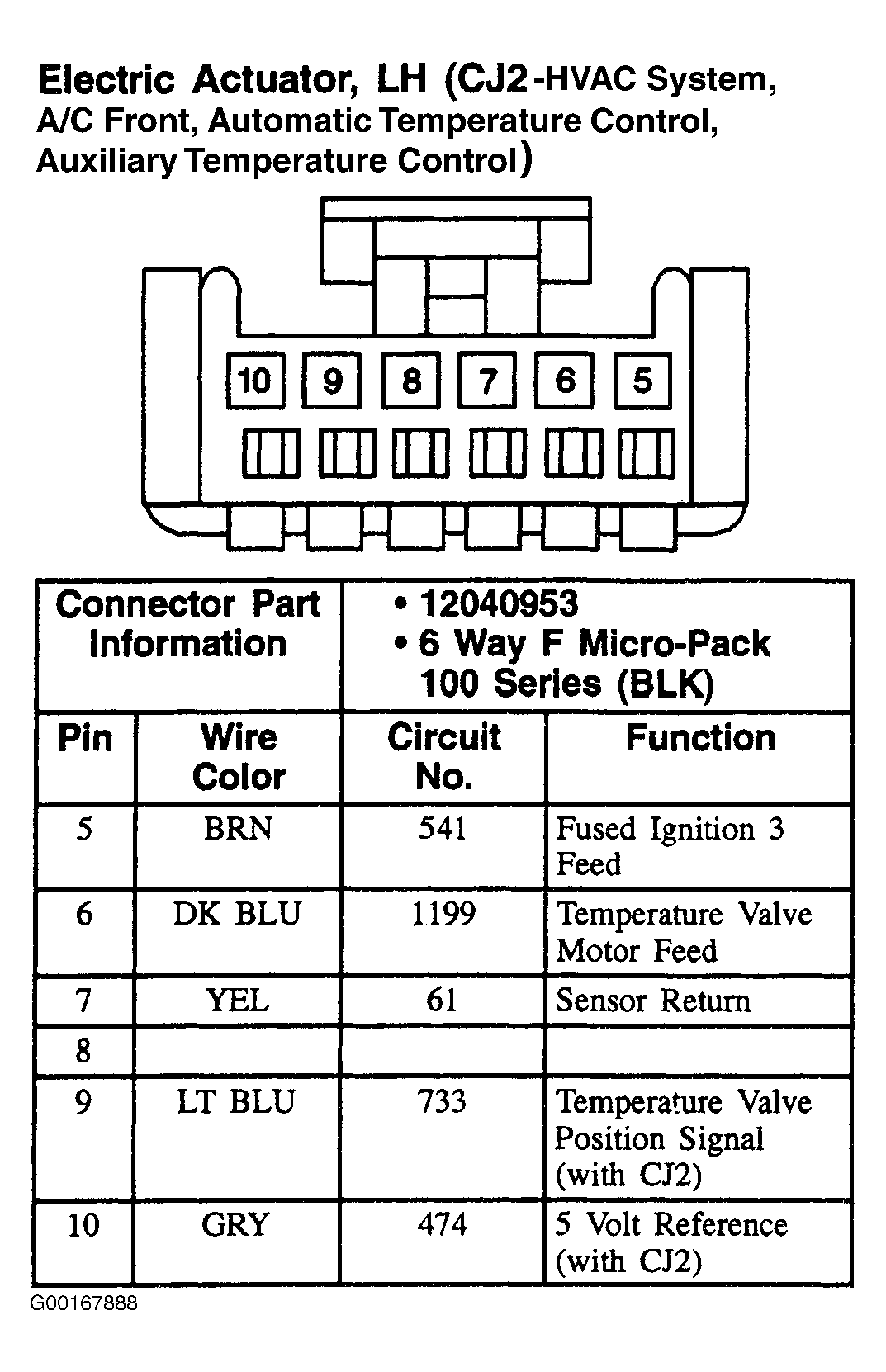

Fig 1: Electric Actuator, Left Hand (CJ2 - HVAC System, A/C Front, Automatic Temperature Control, Auxiliary Temperature Control) (Grand Prix) - 6-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
