Connector Terminal Identification
›
Transaxle
›
Century & Regal
›
Transaxle Range Switch C2
Transaxle Range Switch C2

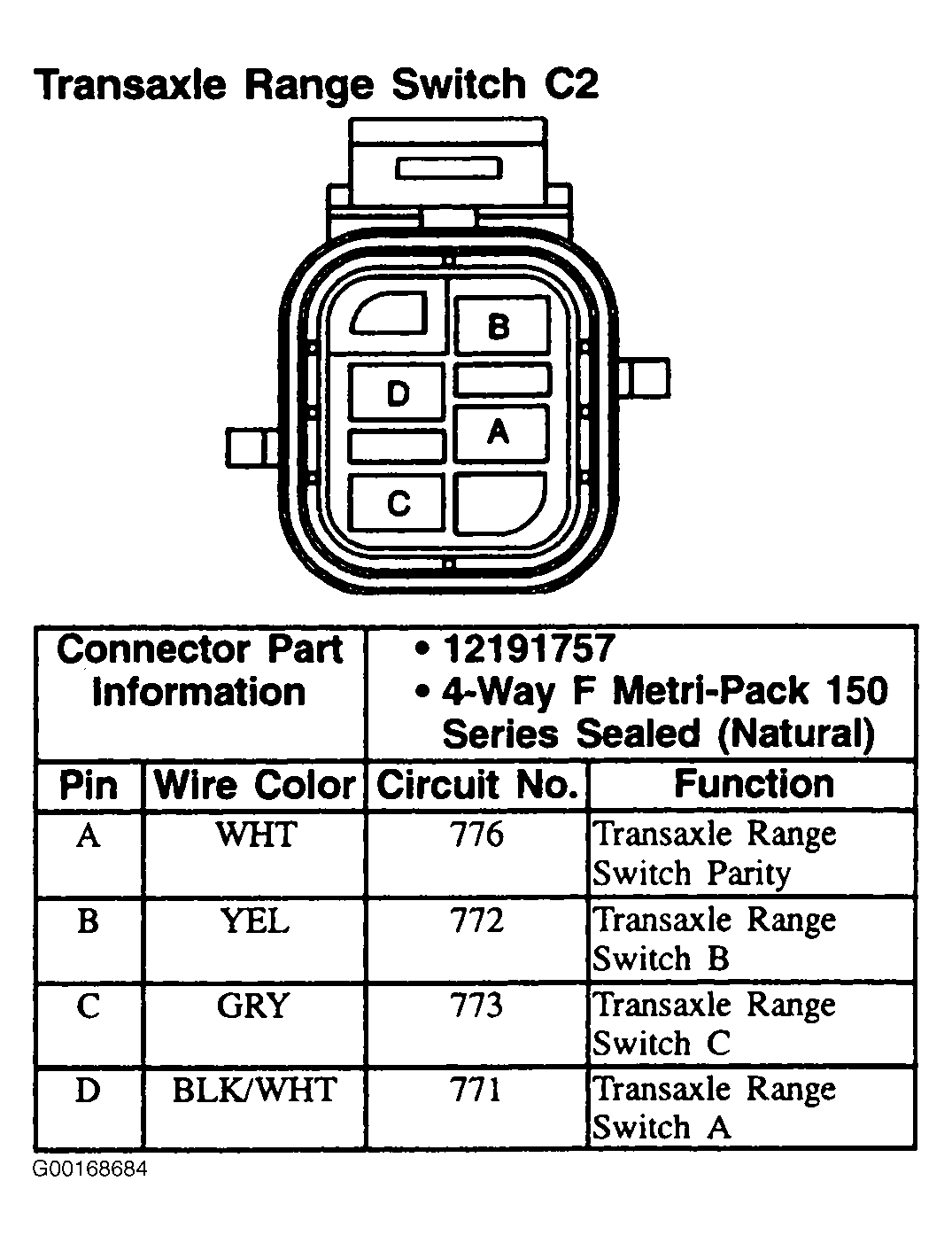

Fig 1: Transaxle Range Switch C2 (Century & Regal) - 4-Pin Connector (Natural)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
