Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Control Module | Below Left Side Of Instrument Panel, Left Of Steering Column. |

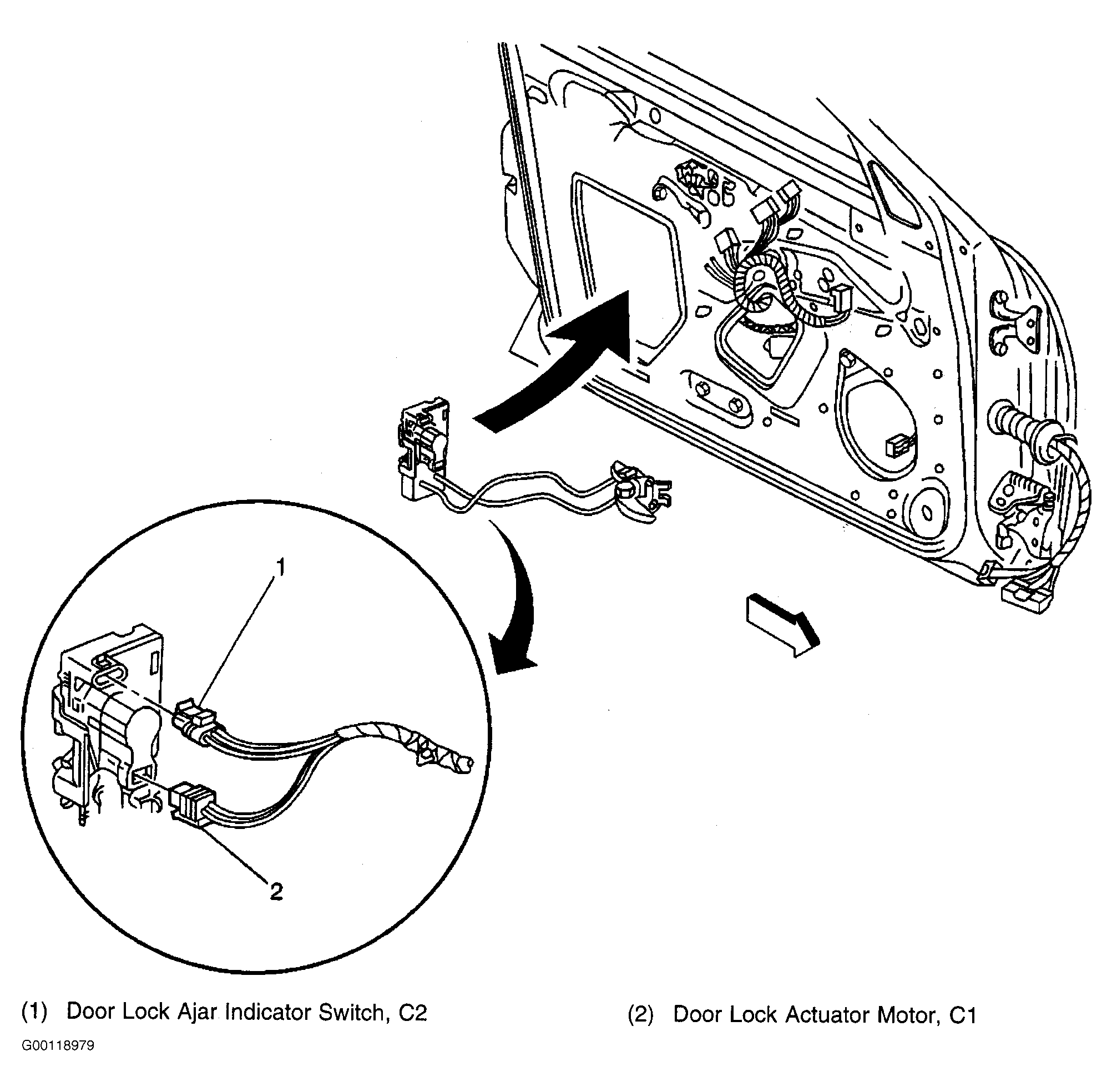

| Door Lock (Actuator Motor) | Rear of Door Panel, Inside Door Latch. See Fig 1 . |
| Door Lock Relay | Behind Instrument Panel Attached To Cross-Car Beam. |

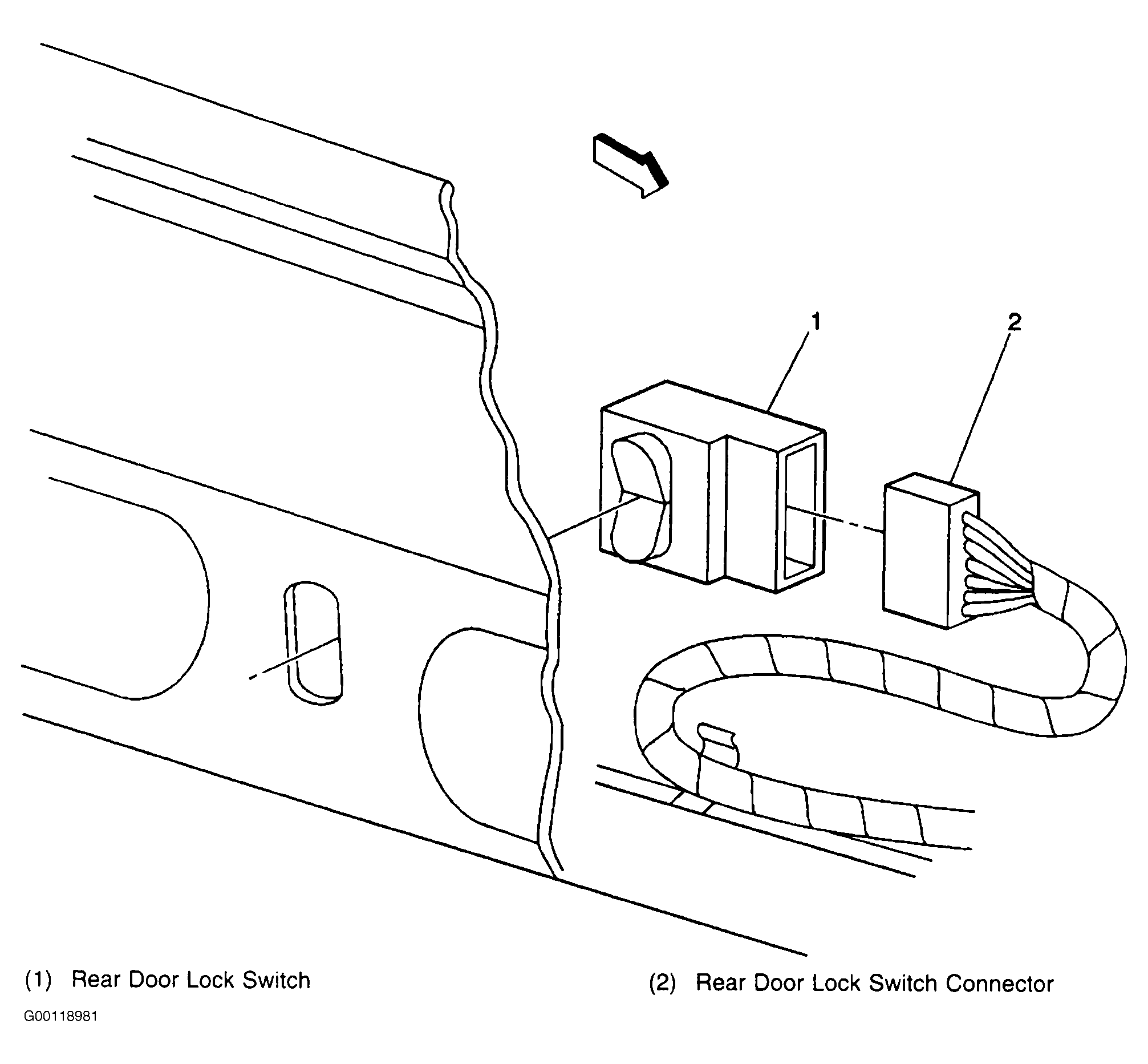

| Door Lock Switch (Left) | Center Of Door Panel. See Fig 3 . |
| Door Lock Switch (Right) | Center Of Door Panel. See Fig 3 . |
| Fuse Block | Right Side Of Instrument Panel, In Right Front Door Opening. |
| Powertrain Control Module (PCM) | Front Left Side Of Engine, Inside Air Cleaner Assembly. |
| Splice Pack SP205 | Below Instrument Panel, Right Side Of Steering Column. |
| Underhood Accessory Wiring Junction Block | Right Side Of Engine Compartment, Mounted To Strut Tower. |
| C101 (20 Cavities) | Instrument Panel Wiring Harness-To-Engine Wiring Harness, Left Side Of Engine Compartment, On Strut Tower. |

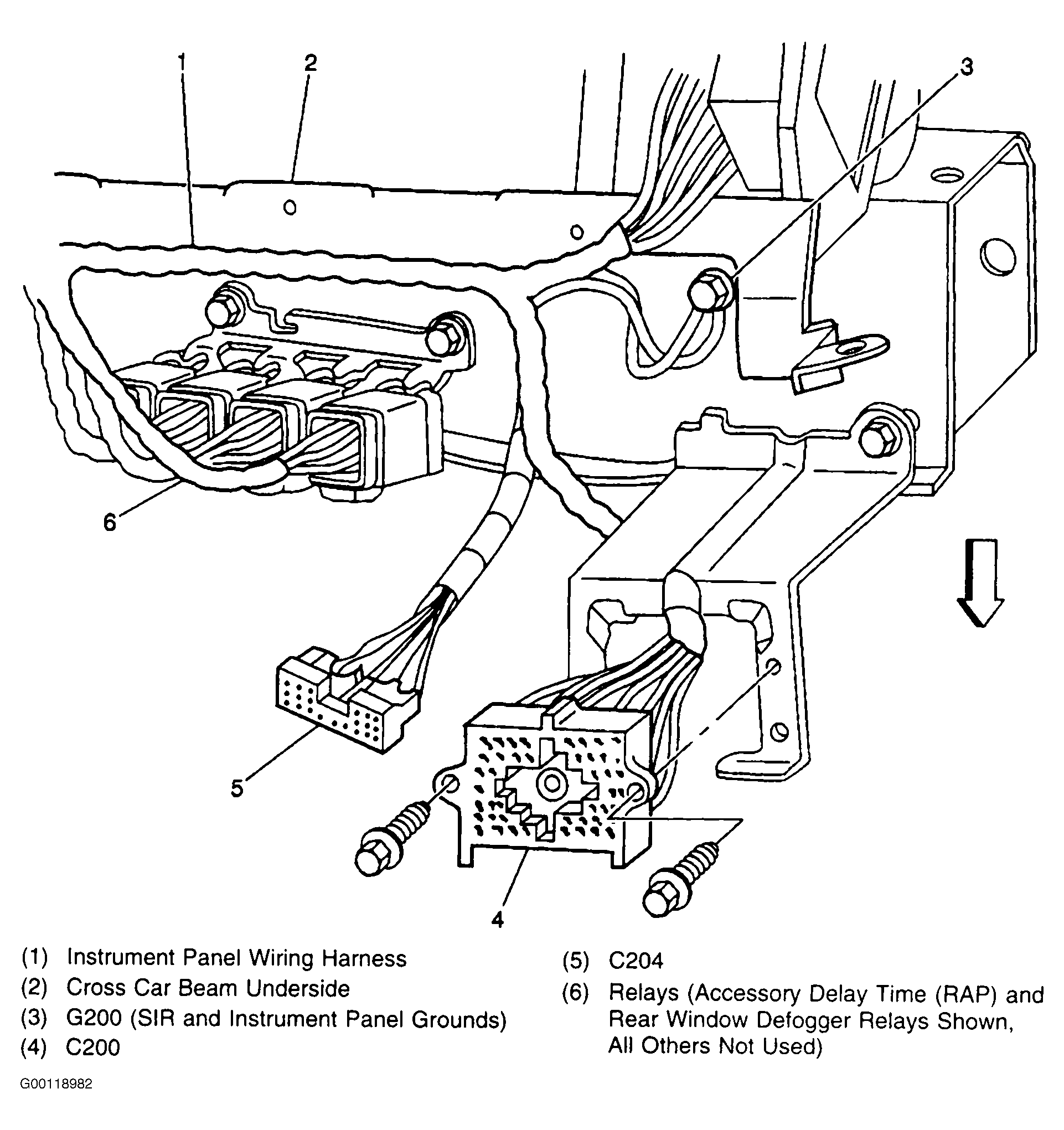

| C200 (56 Cavities) | Instrument Panel Wiring Harness-To-Body Wiring Harness, Behind Right Side Of Instrument Panel. See Fig 4 . |
| C301 (16 Cavities) | Body Wiring Harness-To-Left front Door Wiring Harness, In A-Pillar. |
| C302 (16 Cavities) | Body Wiring Harness-To-Right Front Door Wiring Harness, In A-Pillar. |

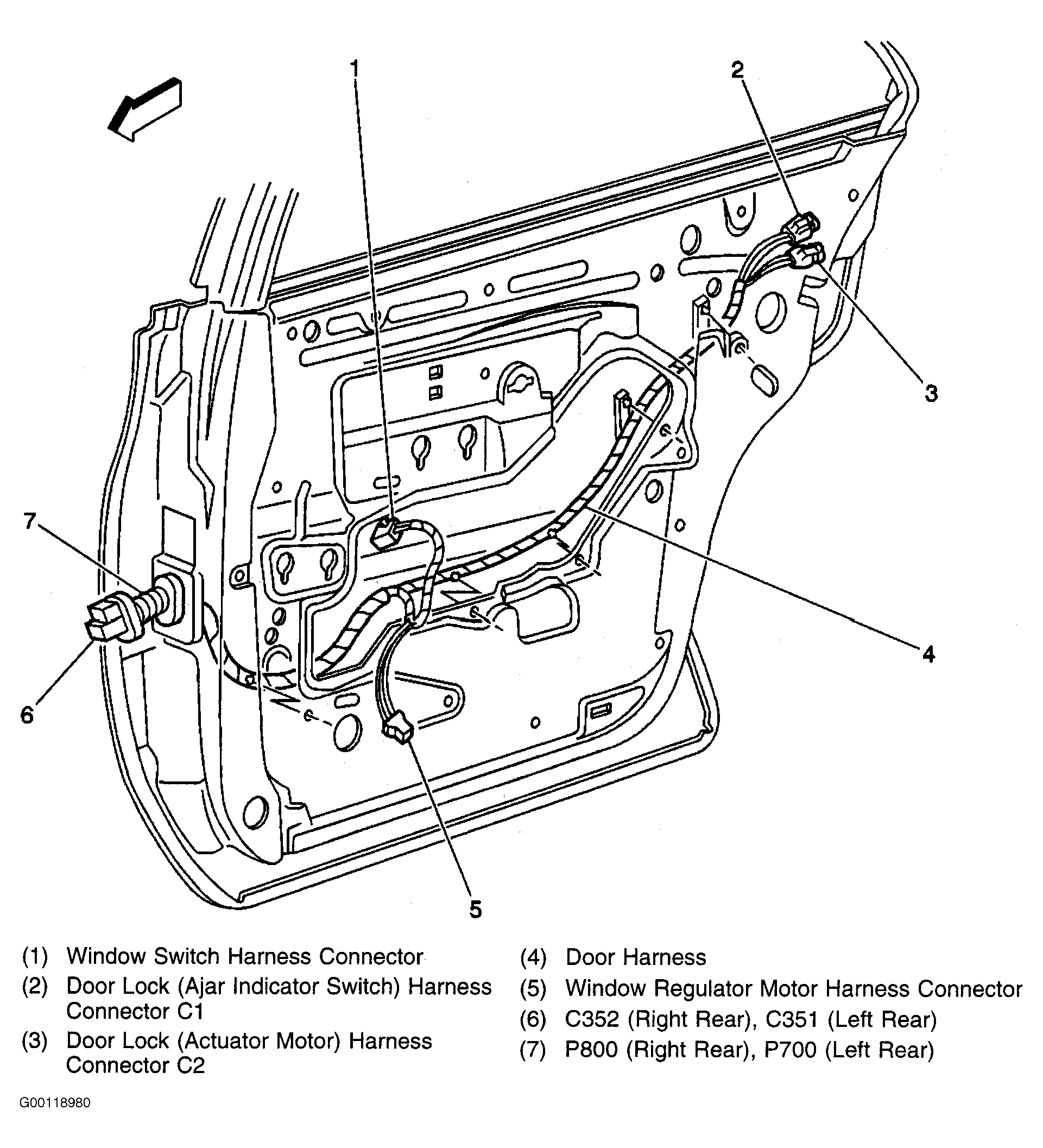

| C351 (10 Cavities) | Body Wiring Harness-To-Left Rear Door Wiring Harness, In B-Pillar. See Fig 2 . |
| C352 (10 Cavities) | Body Wiring Harness-To-Right Rear Door Wiring Harness, In B-Pillar. See Fig 2 . |
| G201 | Below Instrument Panel, Left Side Of Steering Column. |
| G203 | Below Instrument Panel, Right Side Of Steering Column. |
| G301 | Inside Left Door Sill, Forward Of Left Front Seat. |
| P100 | Lower Right Side Of Dash Panel. |
| P101 | Upper Left Side Of Dash Panel. |
| P700 | Left B-Pillar. See Fig 2 . |
| P800 | Right B-Pillar. See Fig 2 . |
| S211 | Instrument Panel Wiring Harness. |
| S234 | Instrument Panel Wiring Harness. |
| S269 | Instrument Panel Wiring Harness. |
| S270 | Instrument Panel Wiring Harness. |
| S283 | Instrument Panel Wiring Harness. |
| S303 | Body Wiring Harness. |
| S307 | Body Wiring Harness. |
| S314 | Body Wiring Harness. |
| S315 | Body Wiring Harness. |
| S325 | Body Wiring Harness. |
| S410 | Body Wiring Harness. |
| S504 | Left Front Door Wiring Harness, In Left Front Door. |
| S604 | Right Front Door Wiring Harness, In Right Front Door. |
