Wiring Diagrams

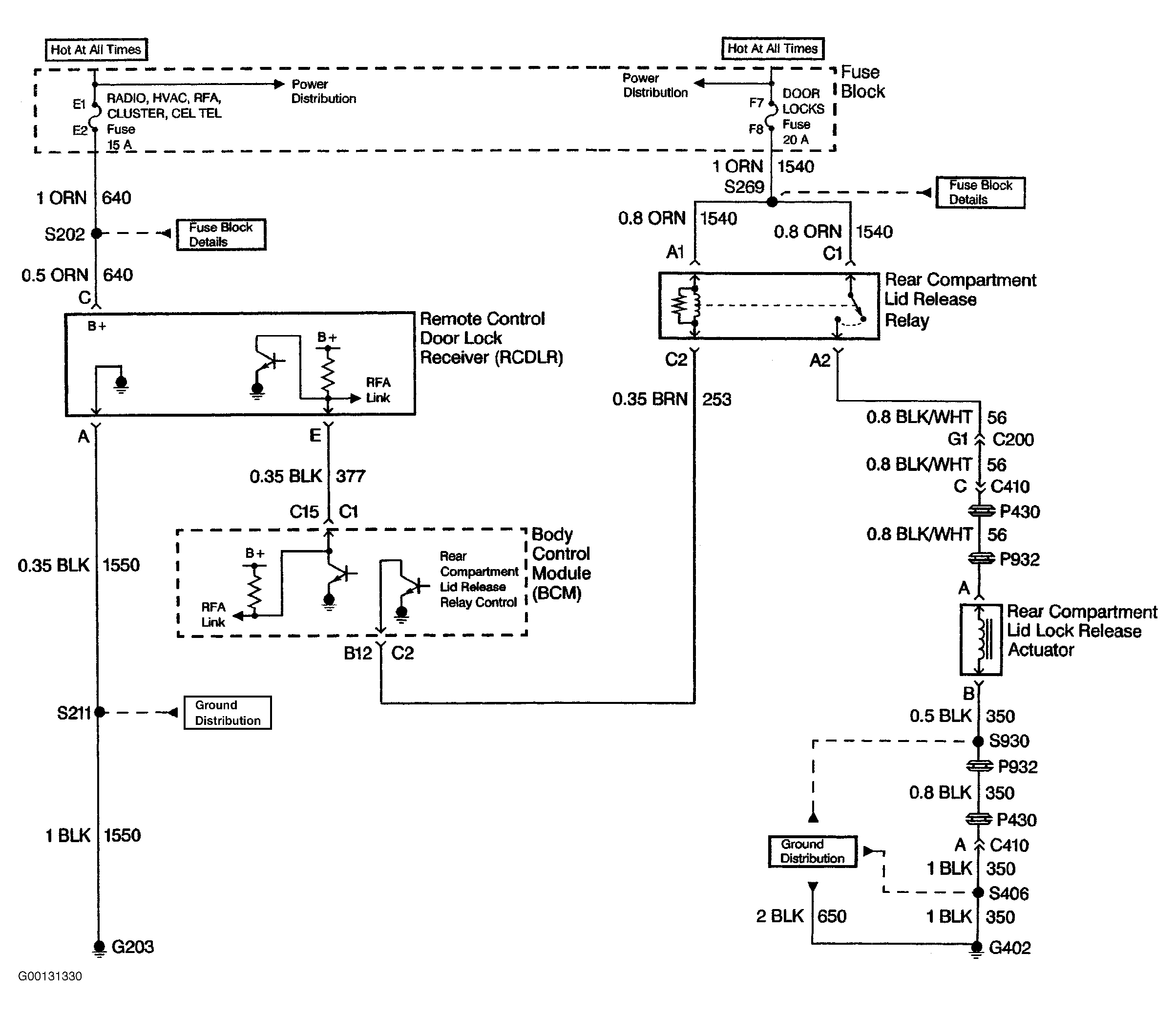

Fig 1: Keyless Entry Wiring Diagram
G00131330Courtesy of GENERAL MOTORS CORP.

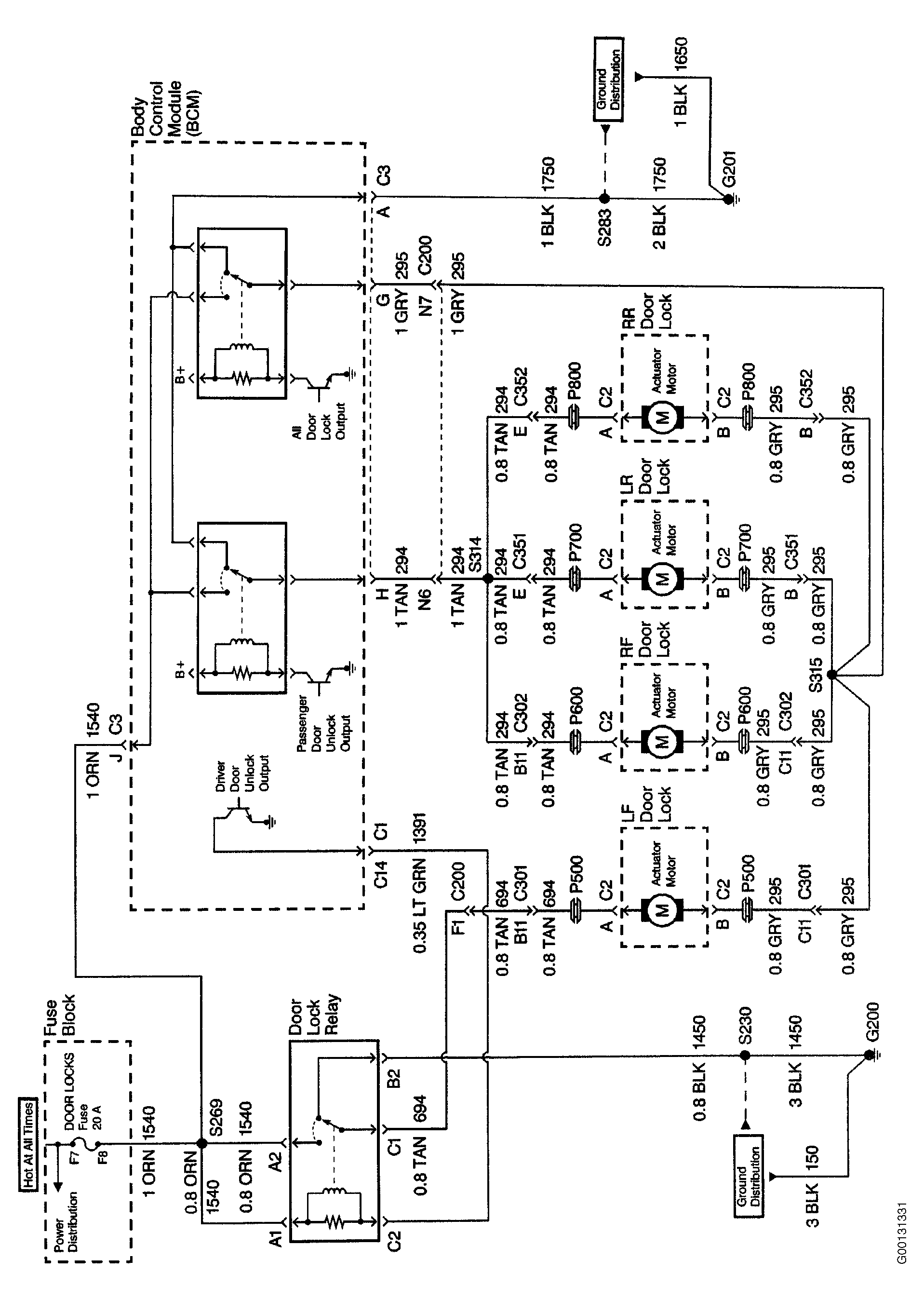

Fig 2: Power Door Lock Wiring Diagram
G00131331Courtesy of GENERAL MOTORS CORP.
