Installation (Front)

  1. Connect the electrical connector to the front door speaker.
  2. Install the speaker to the front door.

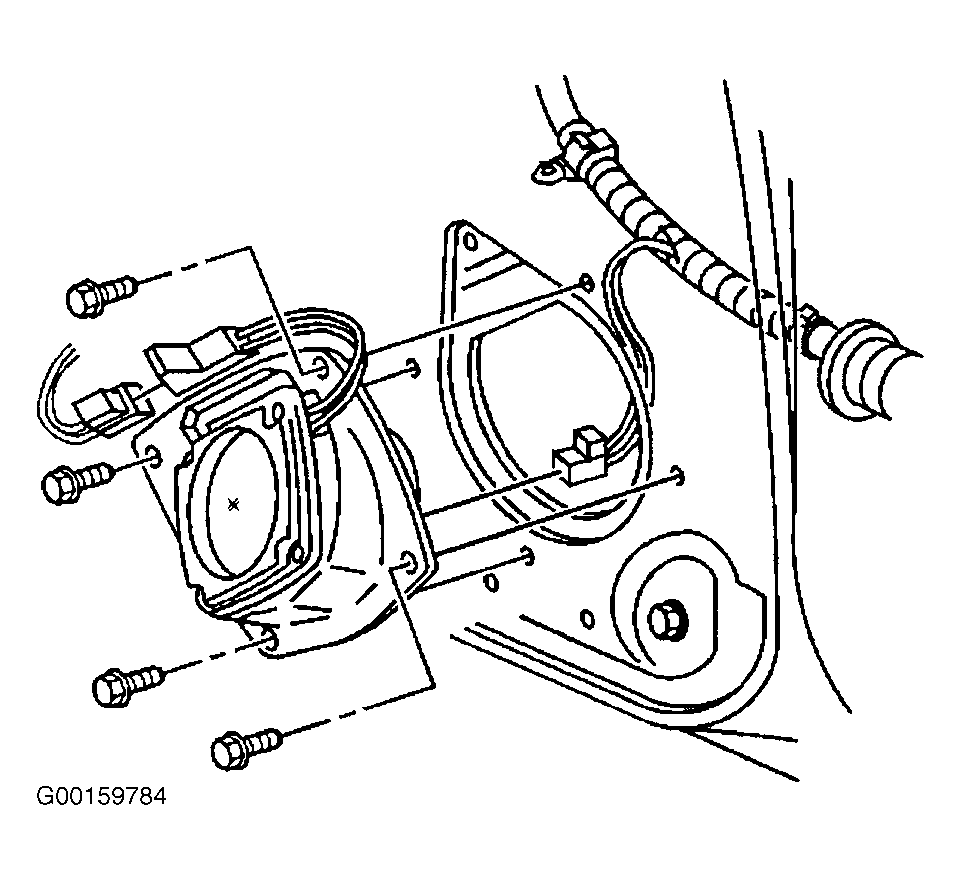

  3. Install the speaker retaining screws. See Figure. Tighten the front door speaker screws to 18 INCH lbs. (2 N.m).
  4. Install the front door inner trim panel. See DOOR TRIM PANEL .
