Installation (Rear)

  1. Position the rear door window regulator motor and bracket to the rear door window regulator.

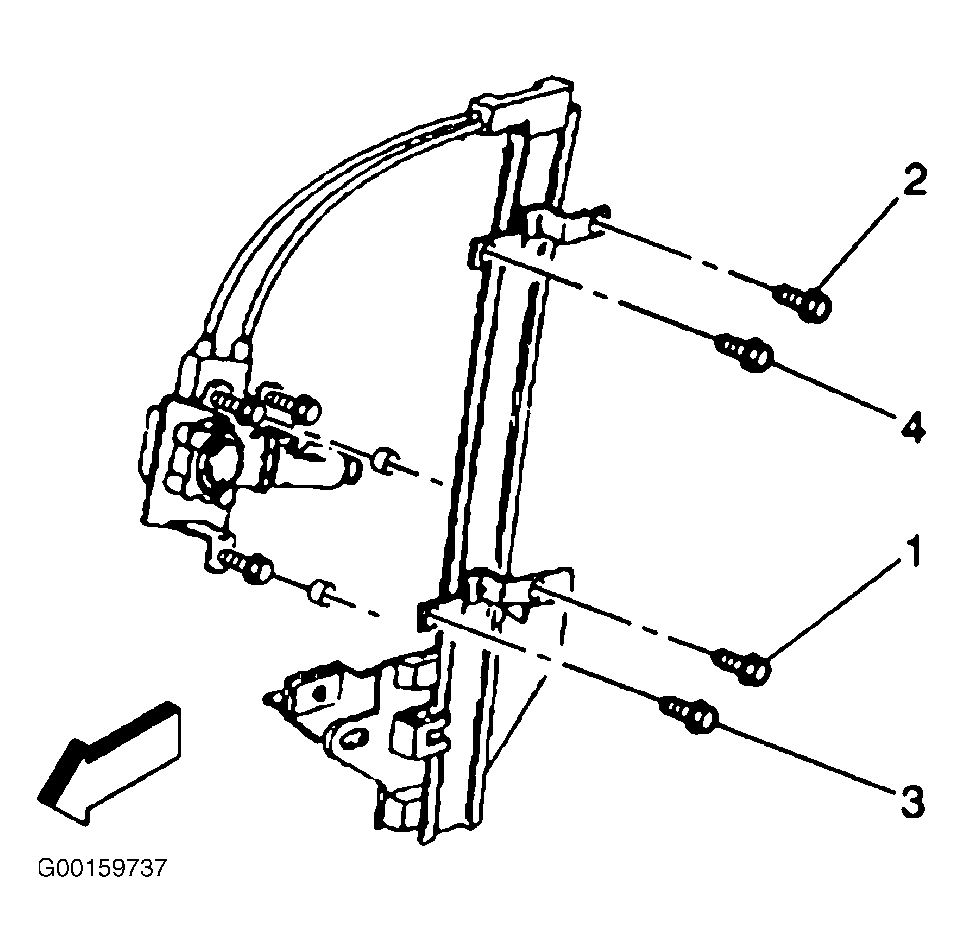

  2. Install the rear door window regulator motor screws. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems. See Figure. Tighten the screws to 53 INCH lbs. (6 N.m).
  3. Connect the rear door window regulator motor electrical connector.

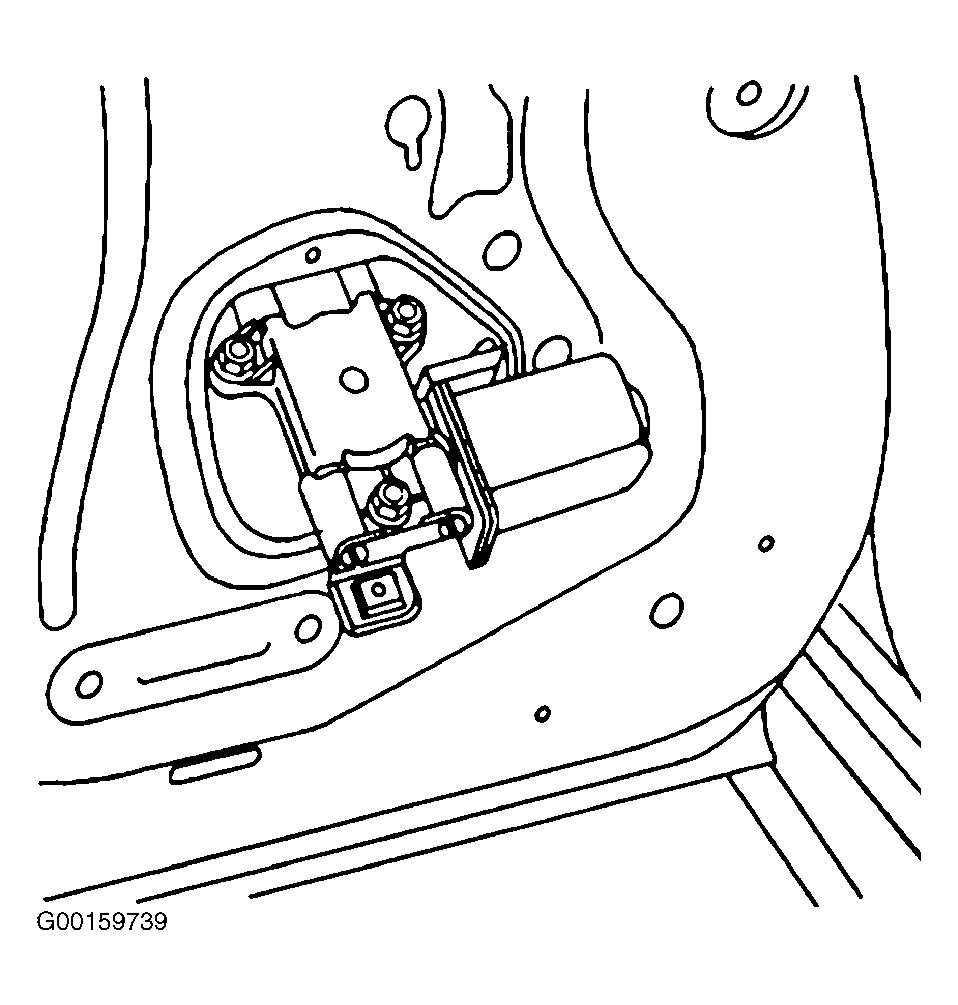

  4. Position the rear door window regulator motor inside the rear door and install it into the key slots in the inner door panel. See Figure.
  5. Hand tighten the rear door window regulator screws. Tighten the screws to 89 INCH lbs. (10 N.m).
  6. Install the water deflector. See WATER DEFLECTOR .
  7. Install the rear door trim panel. See DOOR TRIM PANEL .
