January 2000 Labor Time Guide Updates (99-00-89-023)

Publication date: 2000-01-01
Reference number: 99-00-89-023

JANUARY 2000 LABOR TIME GUIDE UPDATES

JANUARY 2000 LABOR TIME GUIDE UPDATES

TECHNICAL SERVICE BULLETIN

Reference Number(s): 99-00-89-023, Date of Issue:  January, 2000

JANUARY, 2000 LABOR TIME GUIDE UPDATES

Model(s): 1994-2001 GM Passenger Cars and Trucks

Section: 00 - General Information

Bulletin No.: 99-00-89-023

Date: January, 2000

SERVICE INFORMATION

This bulletin addresses changes to the published General Motors Labor Time Guides. See Fig 1 through Fig 10 . These changes (new or revised) are the result of new time studies and/or dealer "Requests For Review" being handled by the GM Service Operations Group. They are effective upon receipt. All changes will appear in the next printing of the Labor Time Guide.

NOTE: IMPORTANT: Please retain any changes made to the A, B, D and L Car Labor Time Guides as these vehicles have been discontinued since 1997 and the Labor Time Guides will not be republished. Changes to the P/H Truck Chassis should also be retained. The vehicle was discontinued in December, 1998. Please note: Labor Time Guides for these discontinued vehicles will not be republished.

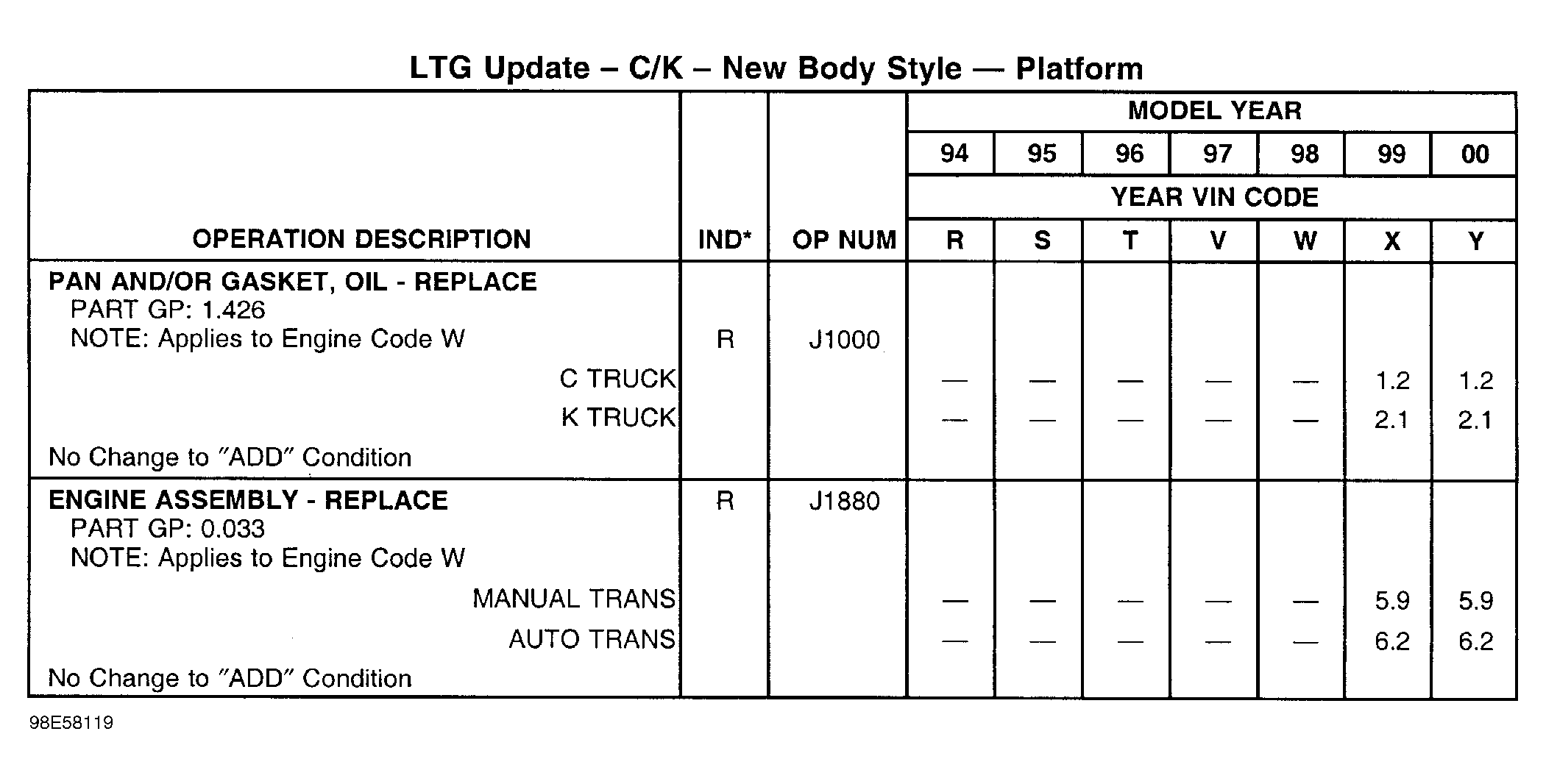

Fig 1: LTG Update - C/K - New Body Style - Platform
G98E58119

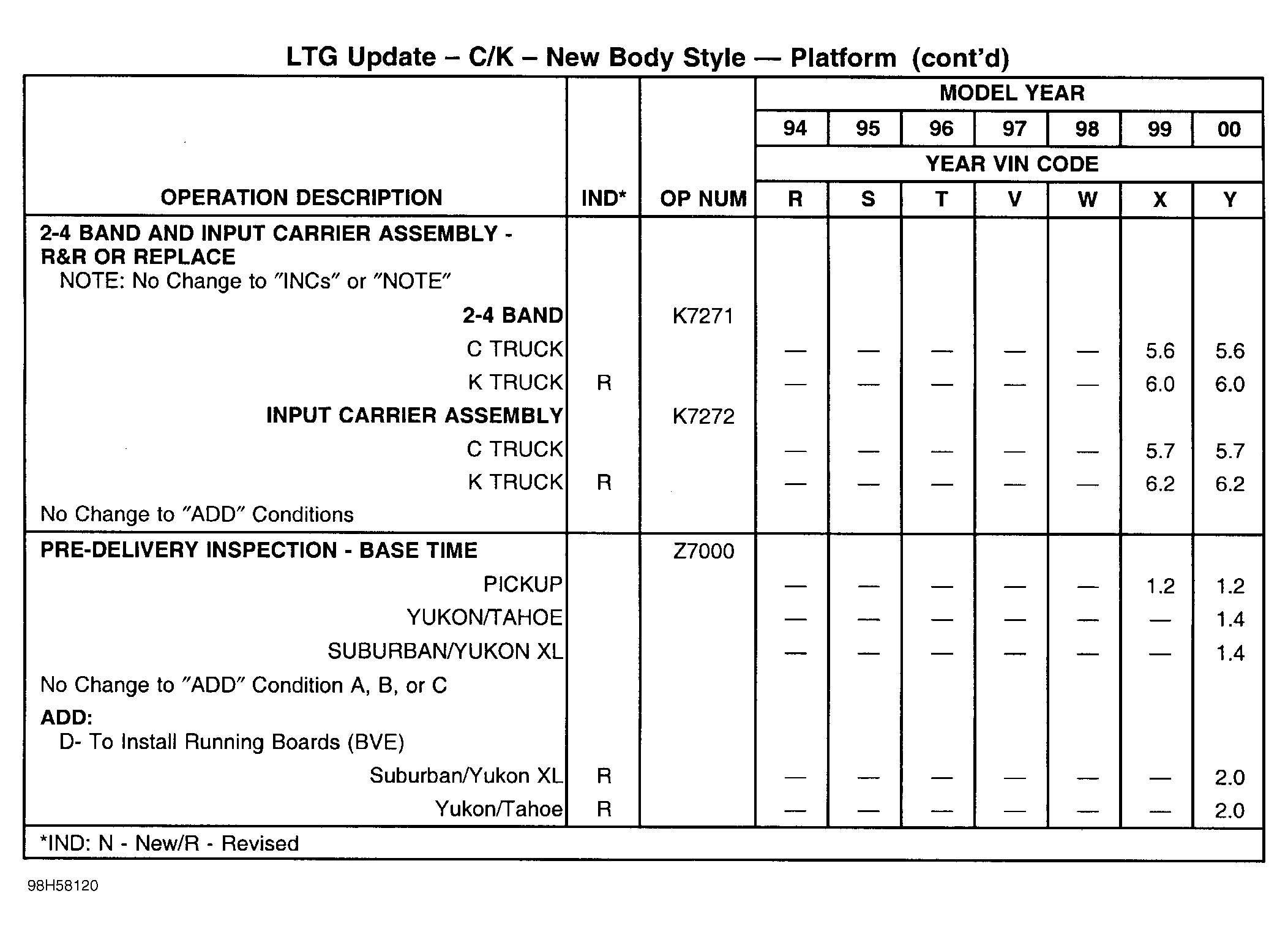

Fig 2: LTG Update - C/K - New Body Style - Platform (cont'd)
G98H58120

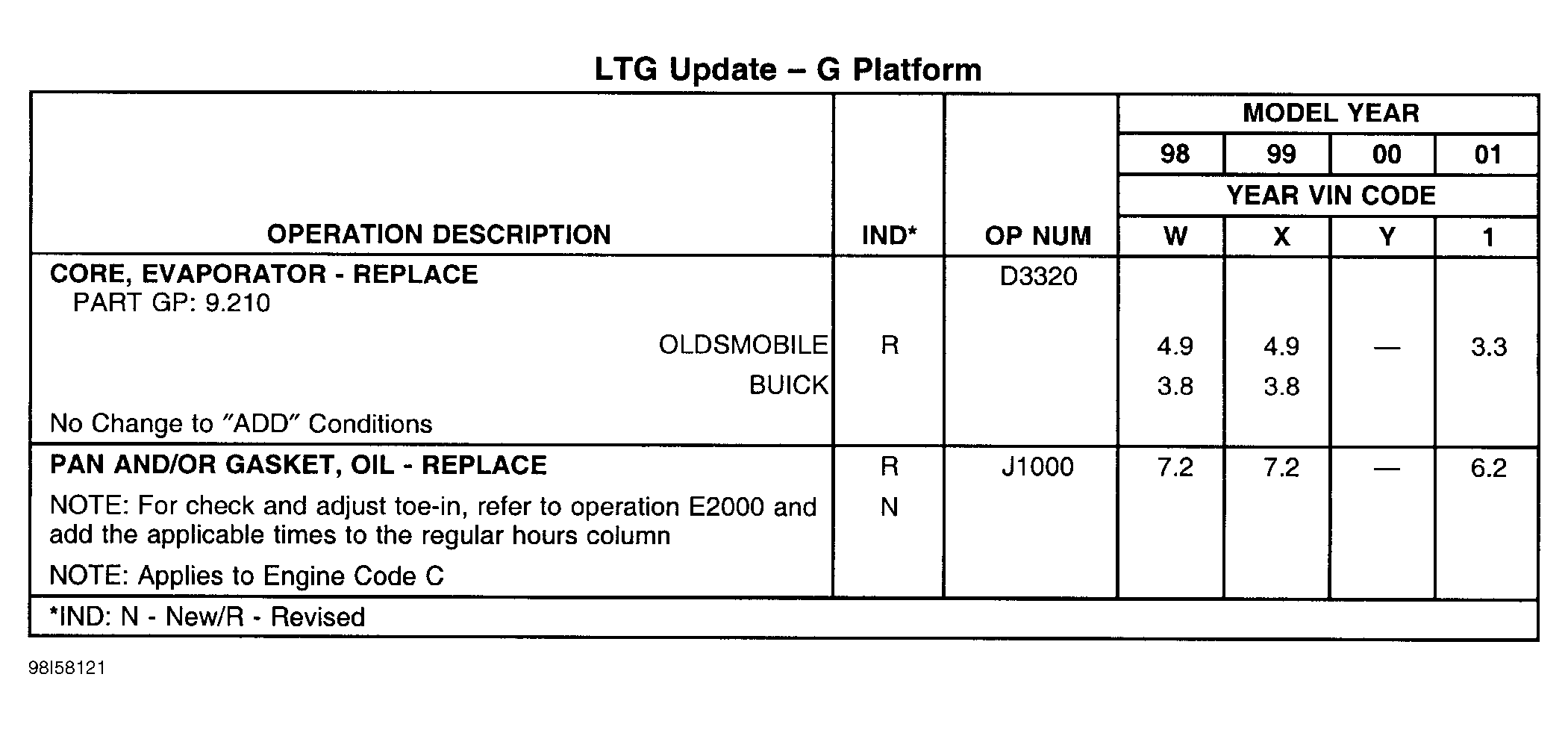

Fig 3: LTG Update - G Platform
G98I58121

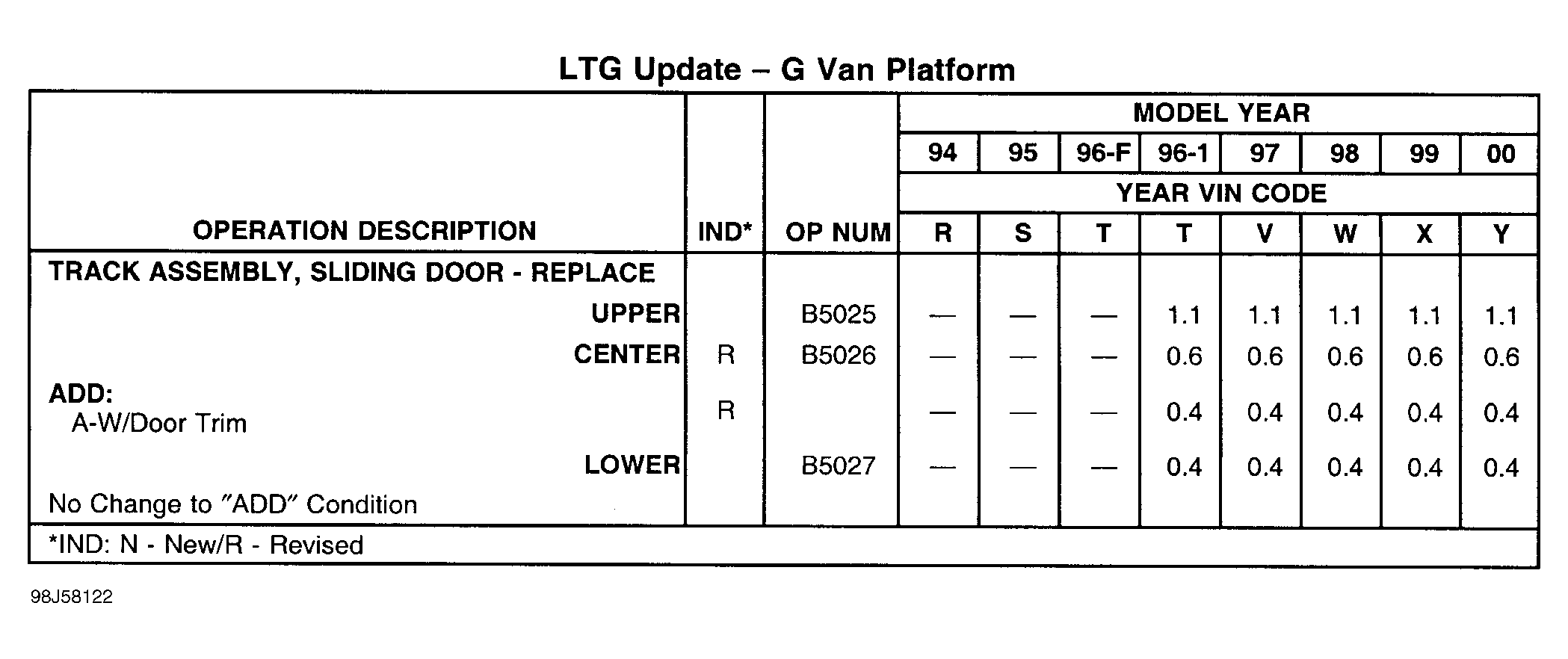

Fig 4: LTG Update - G Van Platform
G98J58122

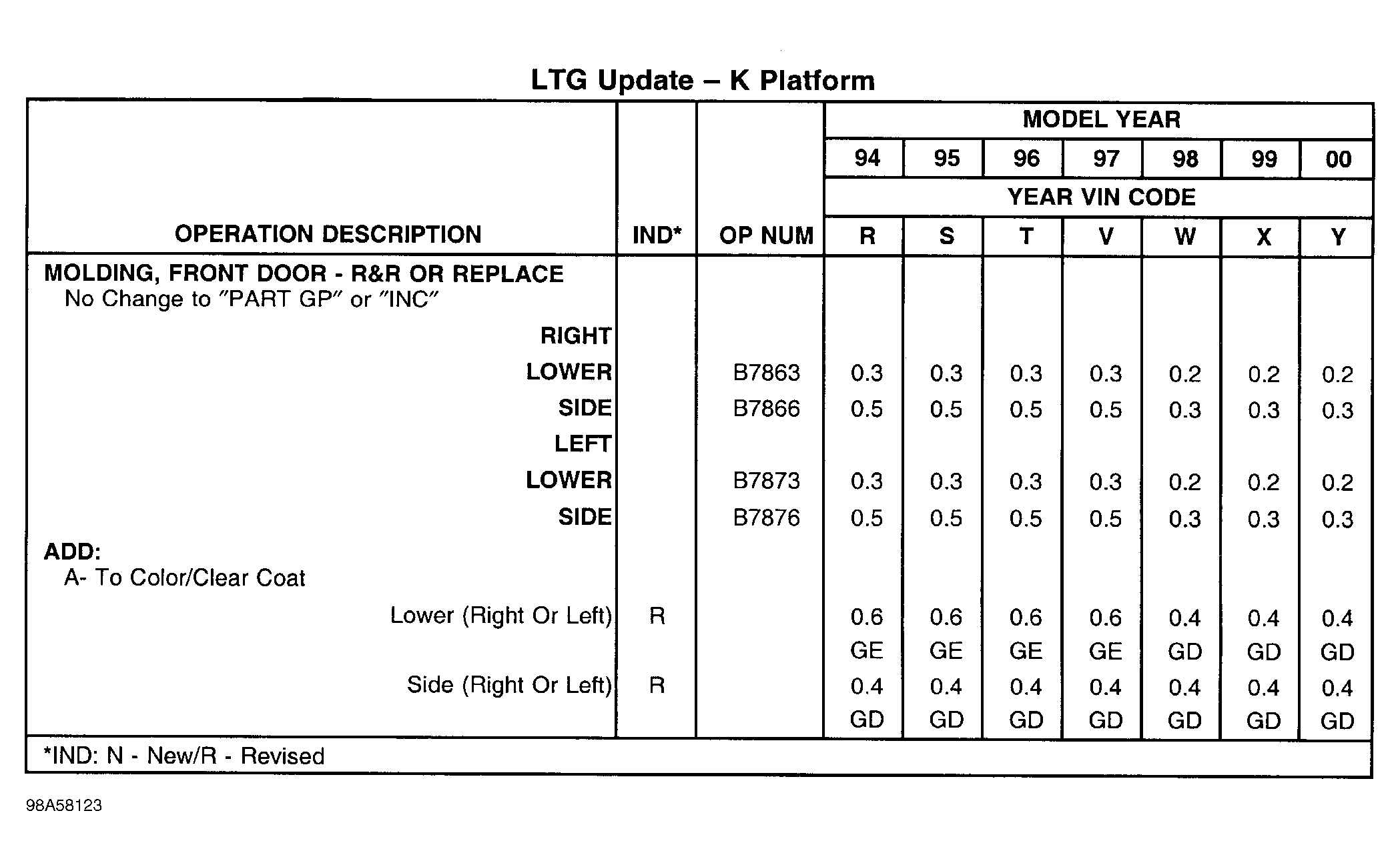

Fig 5: LTG Update - K Platform
G98A58123

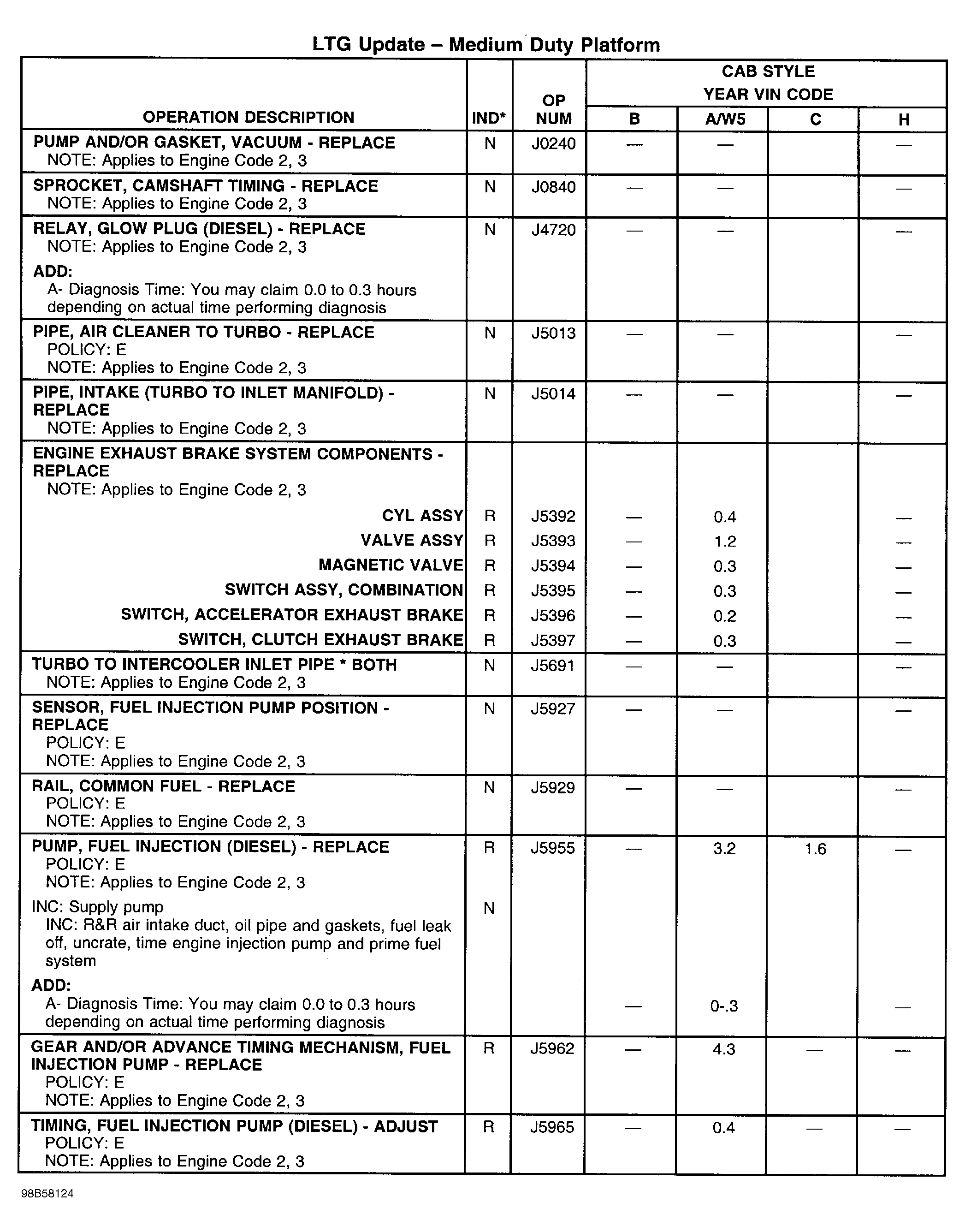

Fig 6: LTG Update - Medium Duty Platform
G98B58124

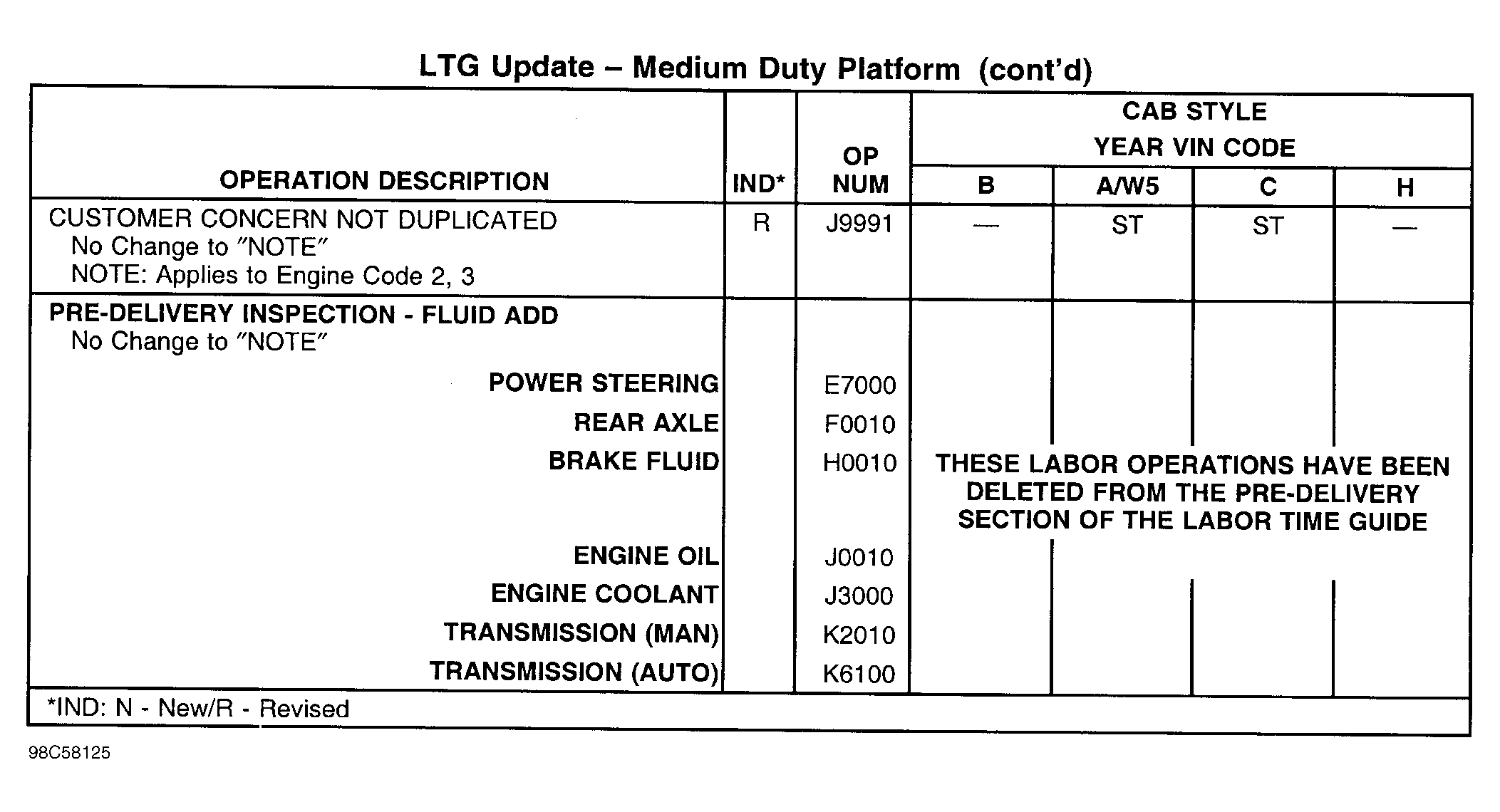

Fig 7: LTG Update - Medium Duty Platform (cont'd)
G98C58125

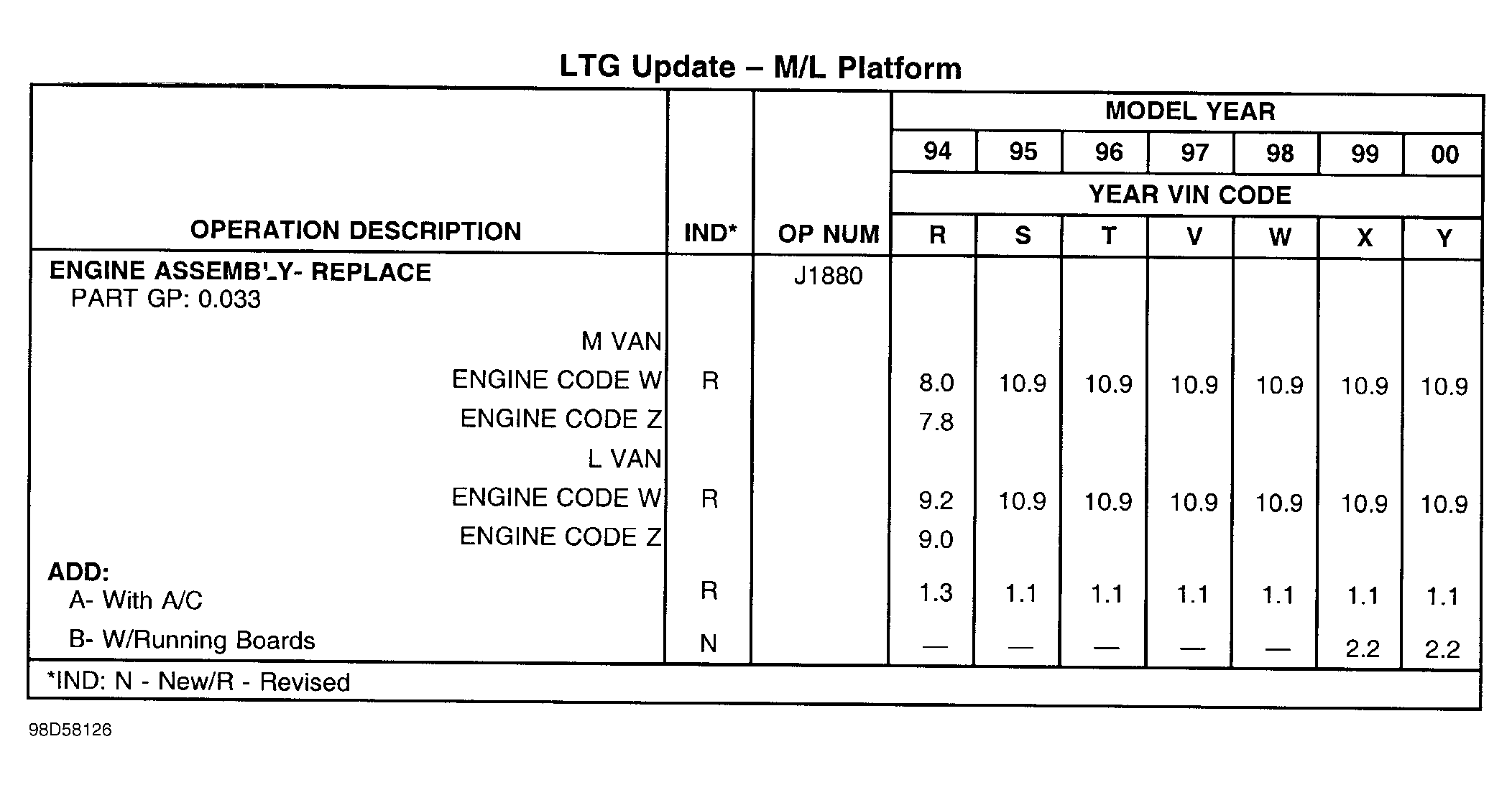

Fig 8: LTG Update - M/L Platform
G98D58126

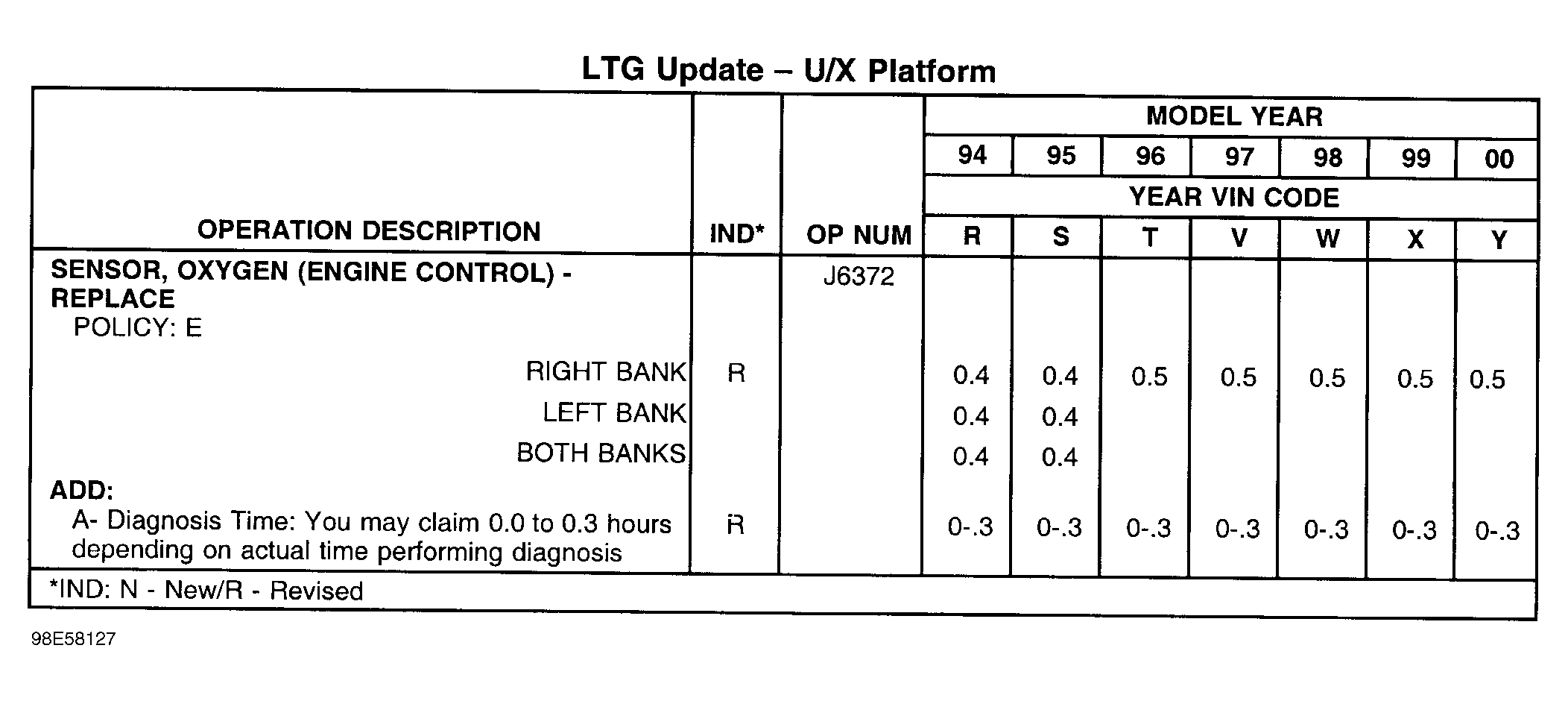

Fig 9: LTG Update - U/X Platform
G98E58127

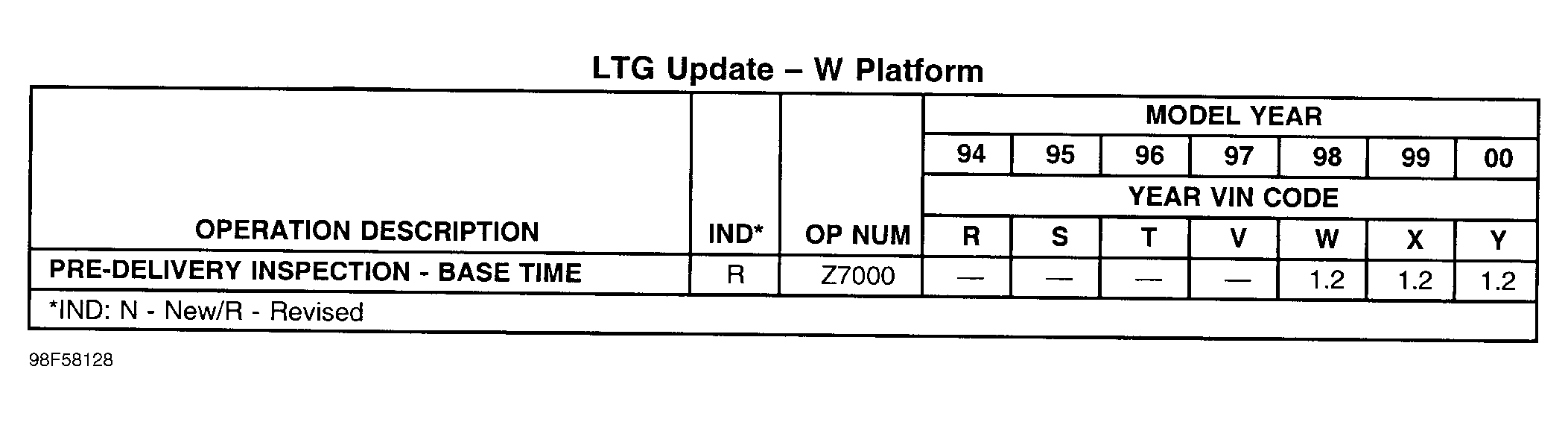

Fig 10: LTG Update - W Platform
G98F58128
