Entertainment Component Views

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

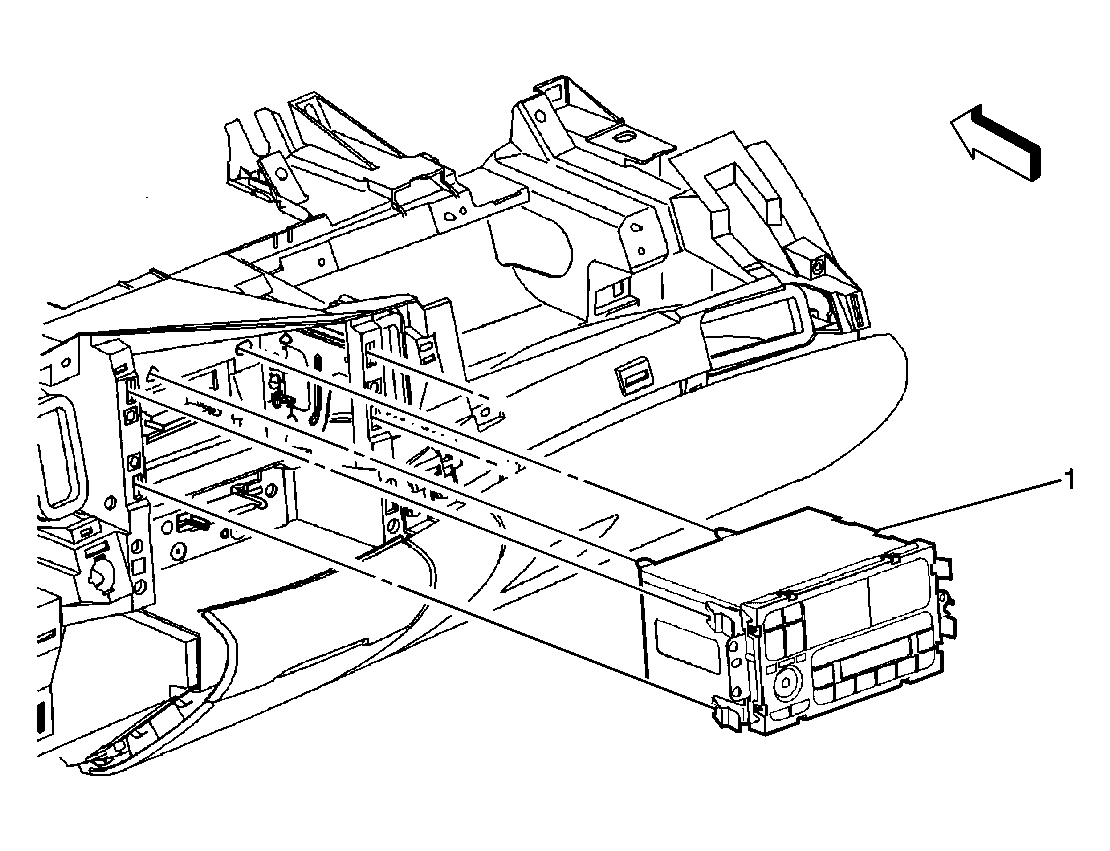

Fig 1: Center of the Instrument Panel, Above the A/C Controls Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio

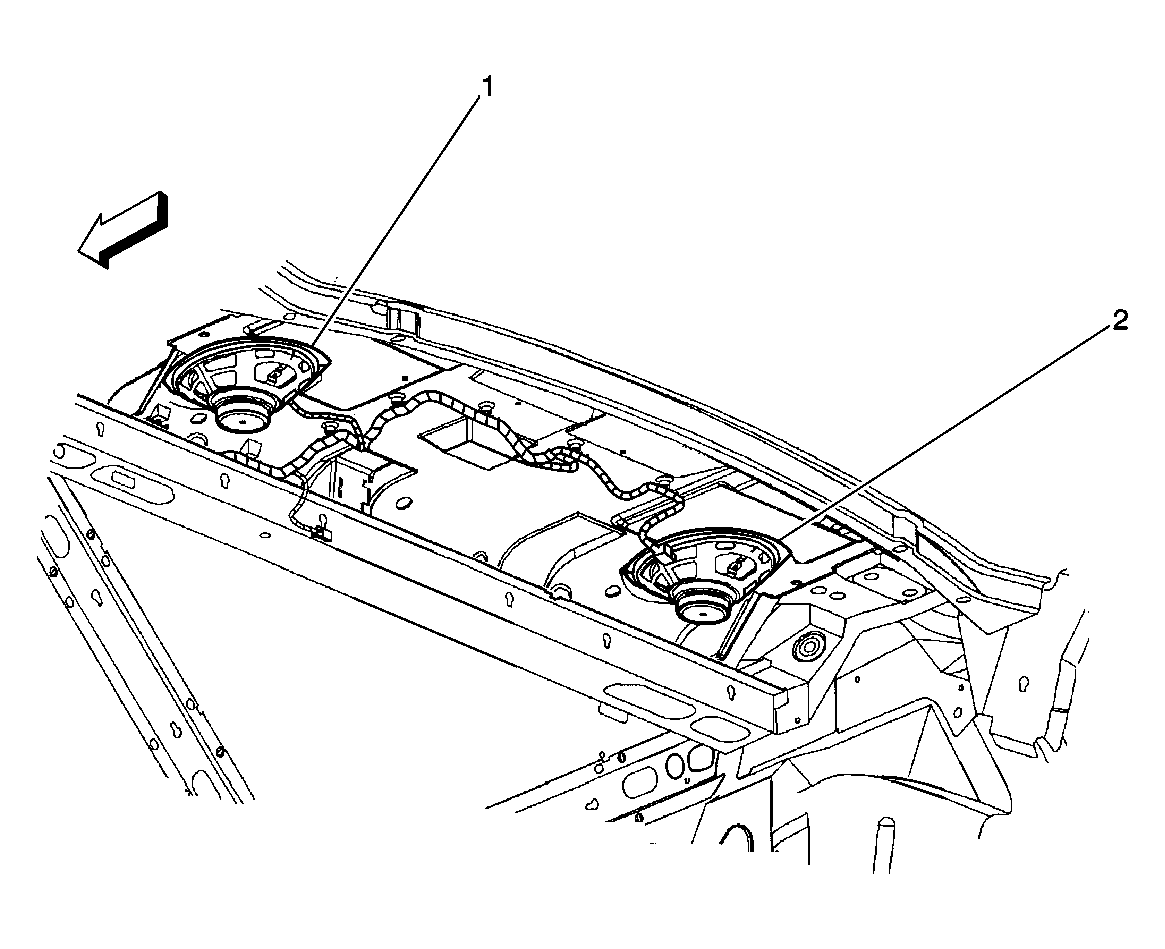

Fig 2: Rear Compartment, Below the Rear Shelf Trim Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LR
2	Speaker - RR

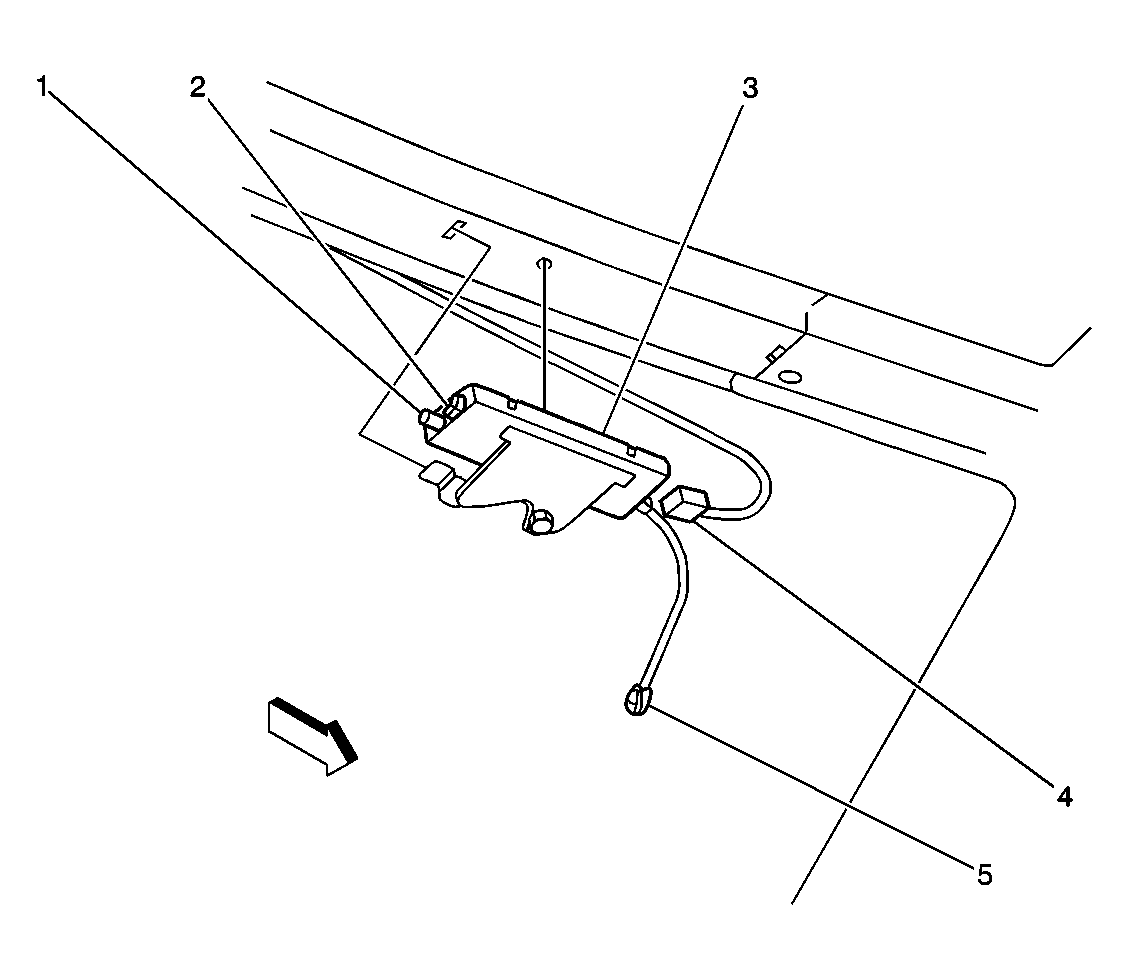

Fig 3: Center Rear of Headliner Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RF Radio Signal Coax Cable
2	Front Windshield FM Antenna Coax Cable
3	Radio Antenna Module
4	Radio Antenna Module Connector
5	Rear Glass Antenna Connector

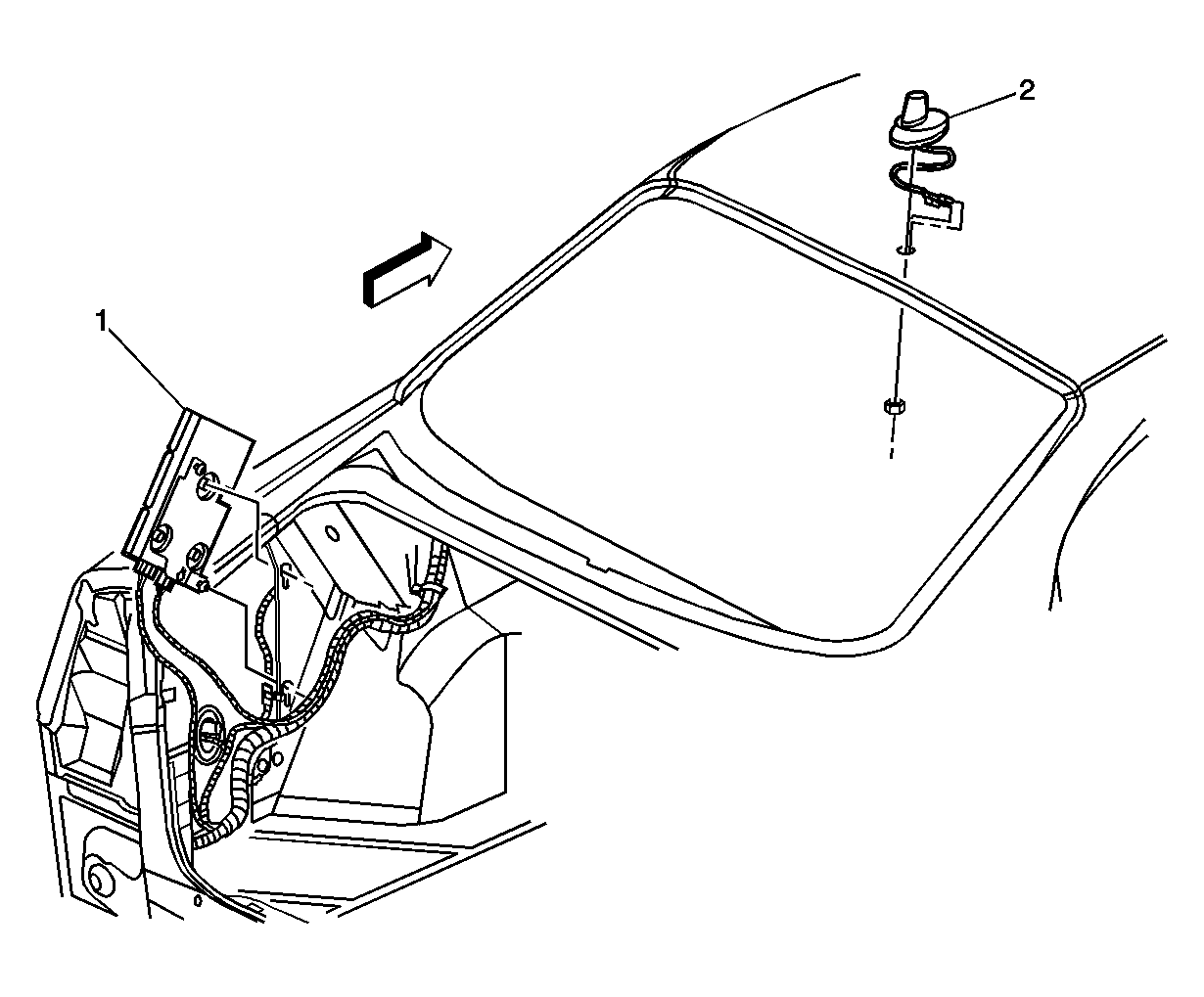

Fig 4: Digital Radio Receiver and Antenna Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Reciever (U2K)
2	Digital Radio Antenna and OnStar Cellular Antenna (U2K or UE1)
