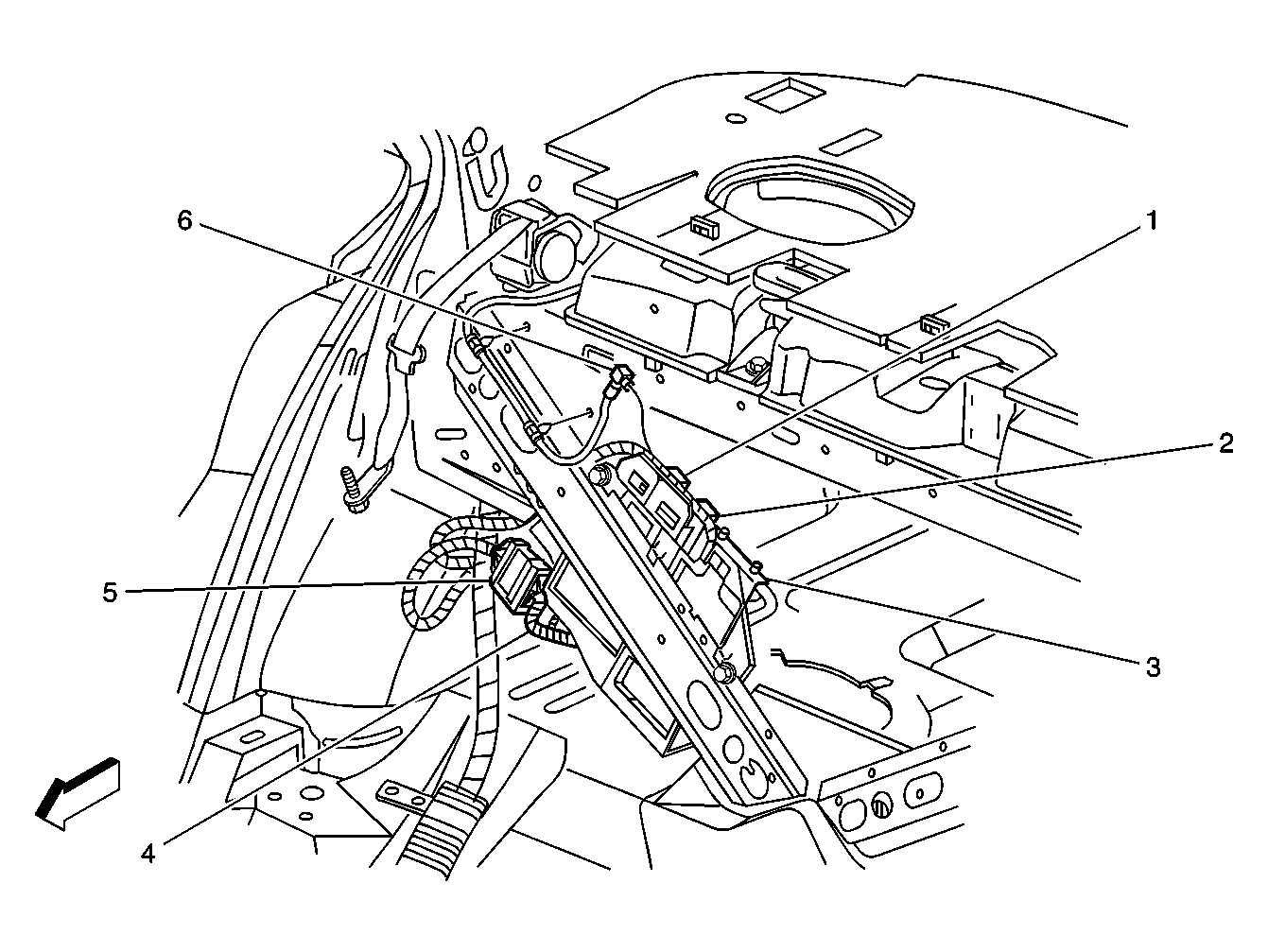

Cellular Communication Component Views
WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Vehicle Interface Unit (VIU) |
| 2 |
OnStar® GPS Antenna Lead |
| 3 |
Vehicle Communication Unit (VCU) |
| 4 |
S360 and S361 |
| 5 |
C345 (Body Harness to OnStar® Harness) |
| 6 |
OnStar® Cellular Antenna Lead |
