Lighting Systems Component Views

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

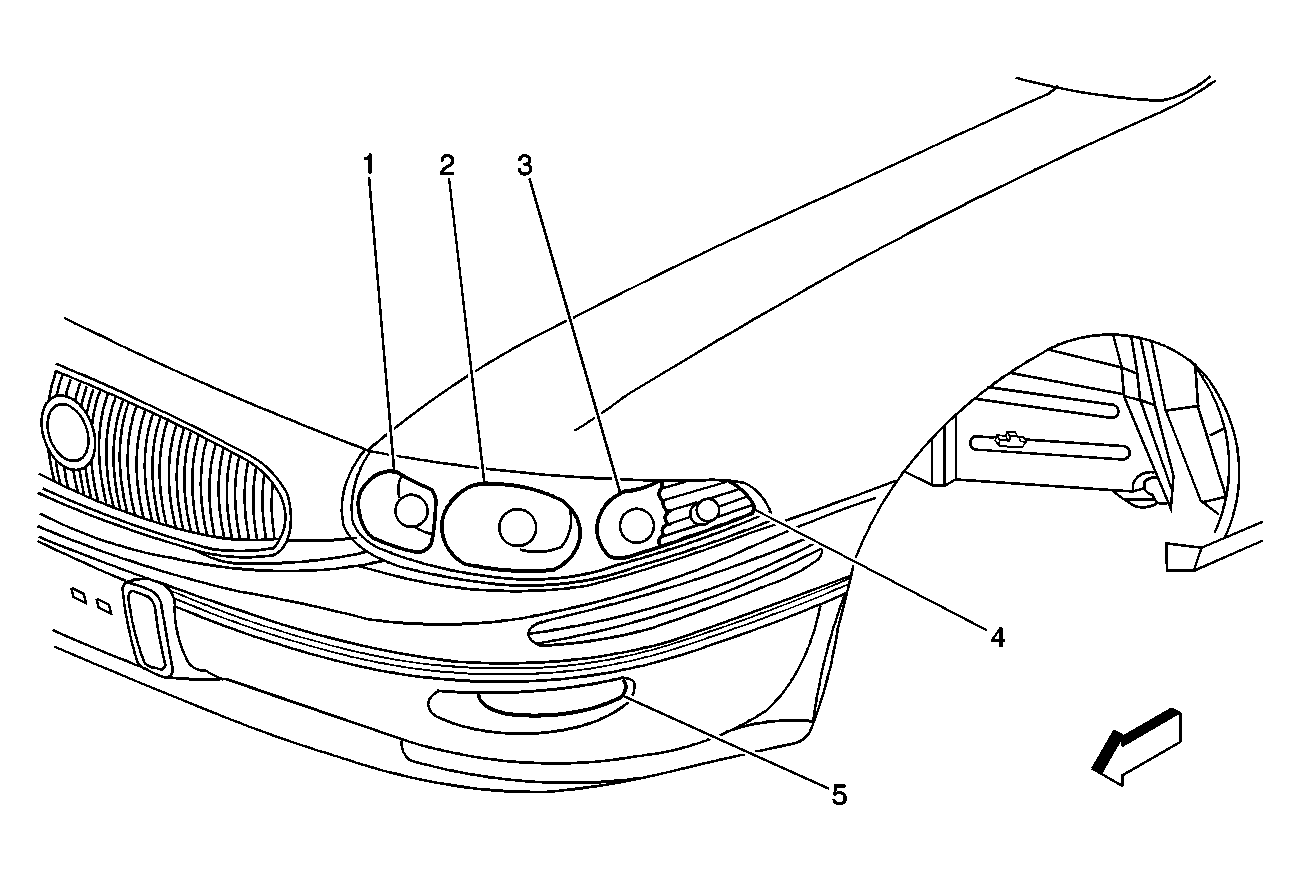

Fig 1: Front Exterior Lighting Component View

GM491498

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Low Beam - Left (Right Similar)
2	Headlamp - High Beam - Left (Right Similar)
3	Cornering Lamp Left (Right Similar)
4	Left Front Side Marker Lamp (Right Similar)
5	Park/Turn Signal Lamp - Left (Right Similar)

Fig 2: Accessory Controls Component View

GM491508

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Hazard Switch
3	Steering Wheel Controls -Left
4	Right Steering Wheel Controls - Right
5	Cruise Control Switch - Right
6	Cruise Control Switch - Left
7	Turn Signal/Multifunction Switch

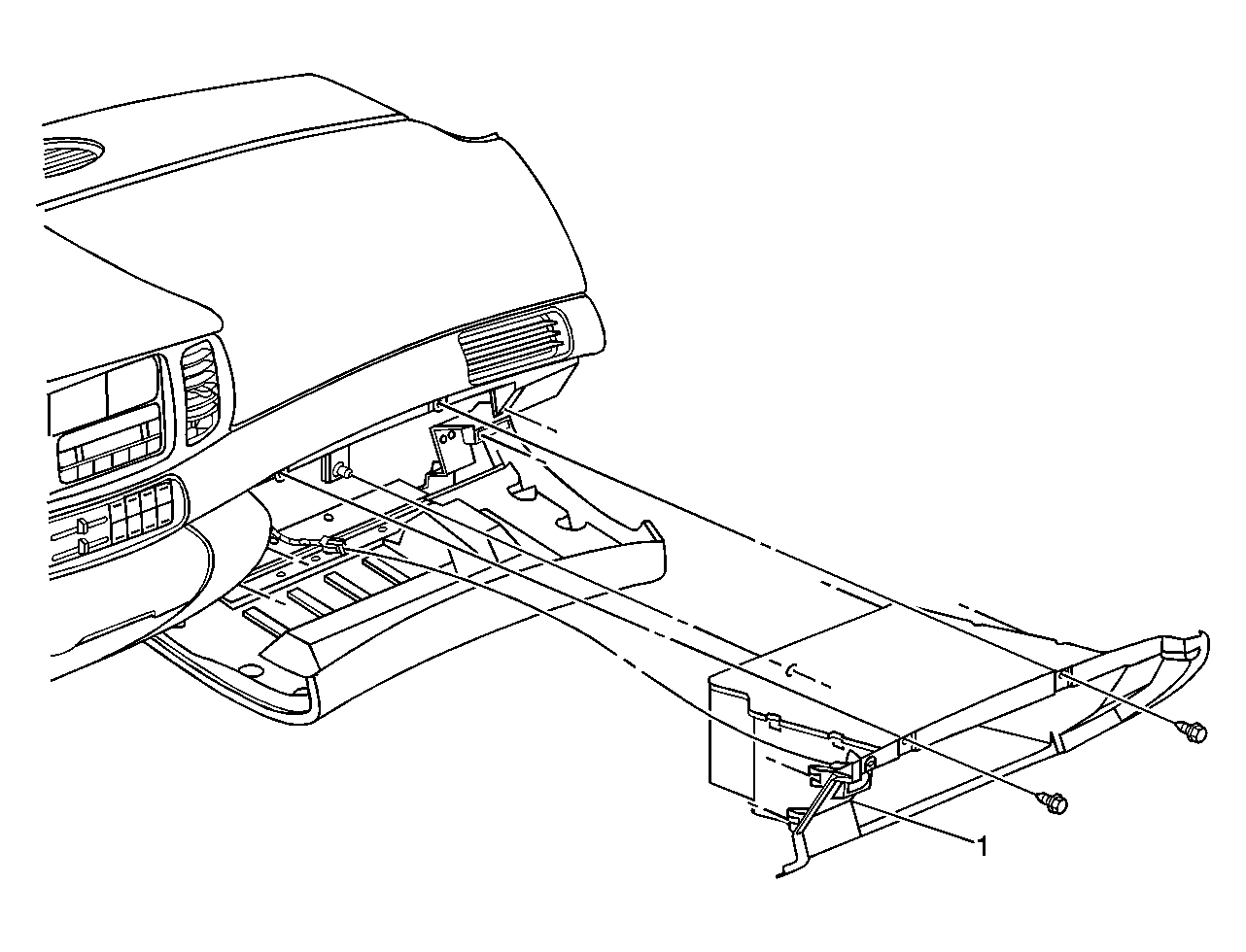

Fig 3: I/P Compartment Lamp and Switch Component View

GM513597

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Compartment Lamp and Switch

Fig 4: Brake Switches Component Views

GM461056

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop lamp/Automatic Trans Shift Lock Control Switch, C1
2	Stop lamp/Automatic Trans Shift Lock Control Switch, C2
3	Stop lamp/Automatic Trans Shift Lock Control Switch
4	Stop lamp Switch
5	Stop lamp Switch Connector

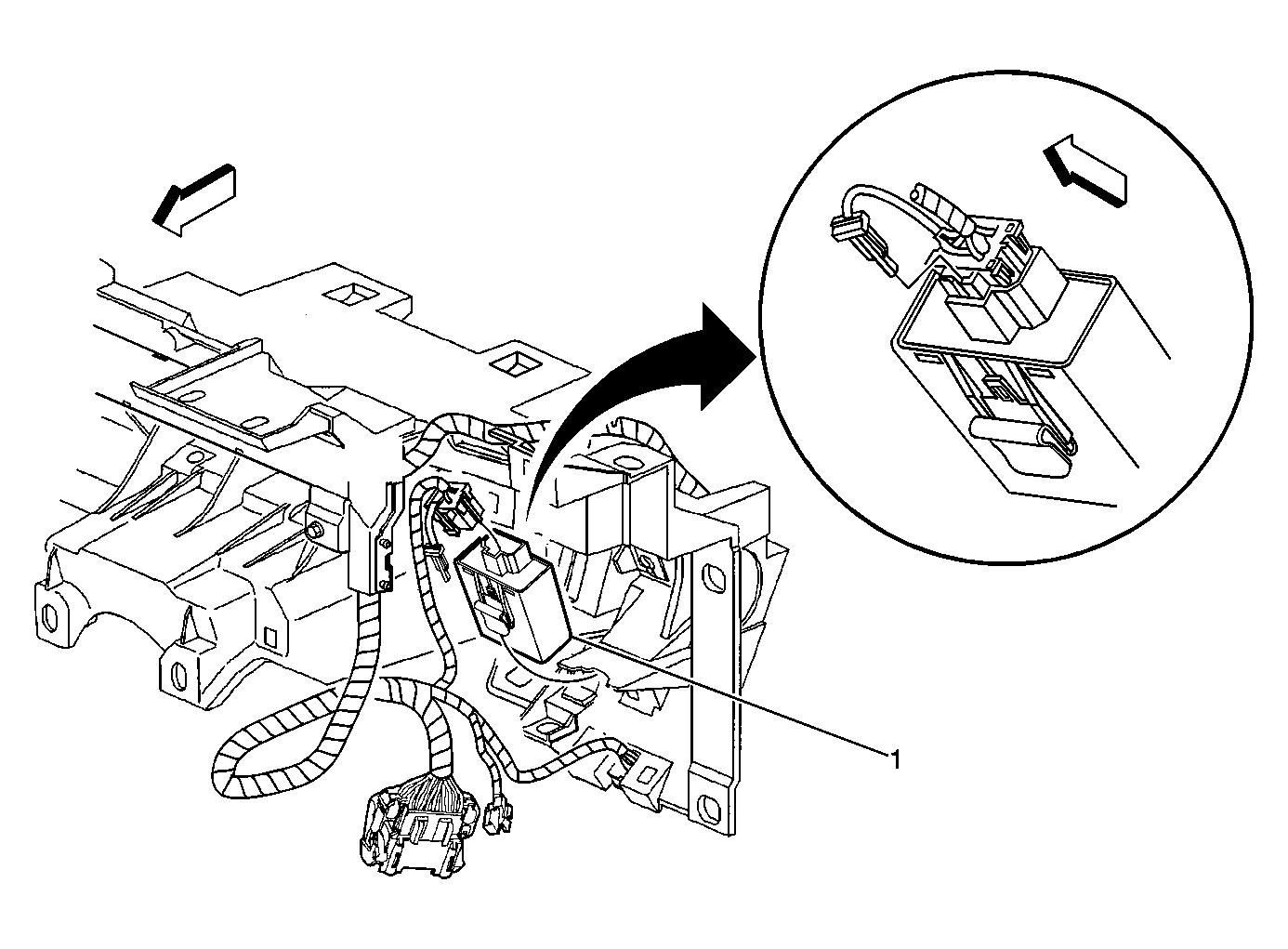

Fig 5: Turn Signal/Hazard Flasher Module Component View

GM491538

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Hazard Flasher Module

Fig 6: Left Front Door Trim Panel Component Views

GM482487

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Driver
2	Speaker - LF Door Tweeter (UW6) (RF Similar)
3	Memory Seat Switches (A45)
4	Heated Seat Switch - Driver (KA1) (Right Door Similar)
5	Outside Rearview Mirror Switch
6	Window Switch - Driver
7	Hood Release
8	Trunk Lock Out Switch
9	Speaker - LF Door
10	Courtesy Lamp - Left Front Door
11	Door Courtesy Lamp - LF

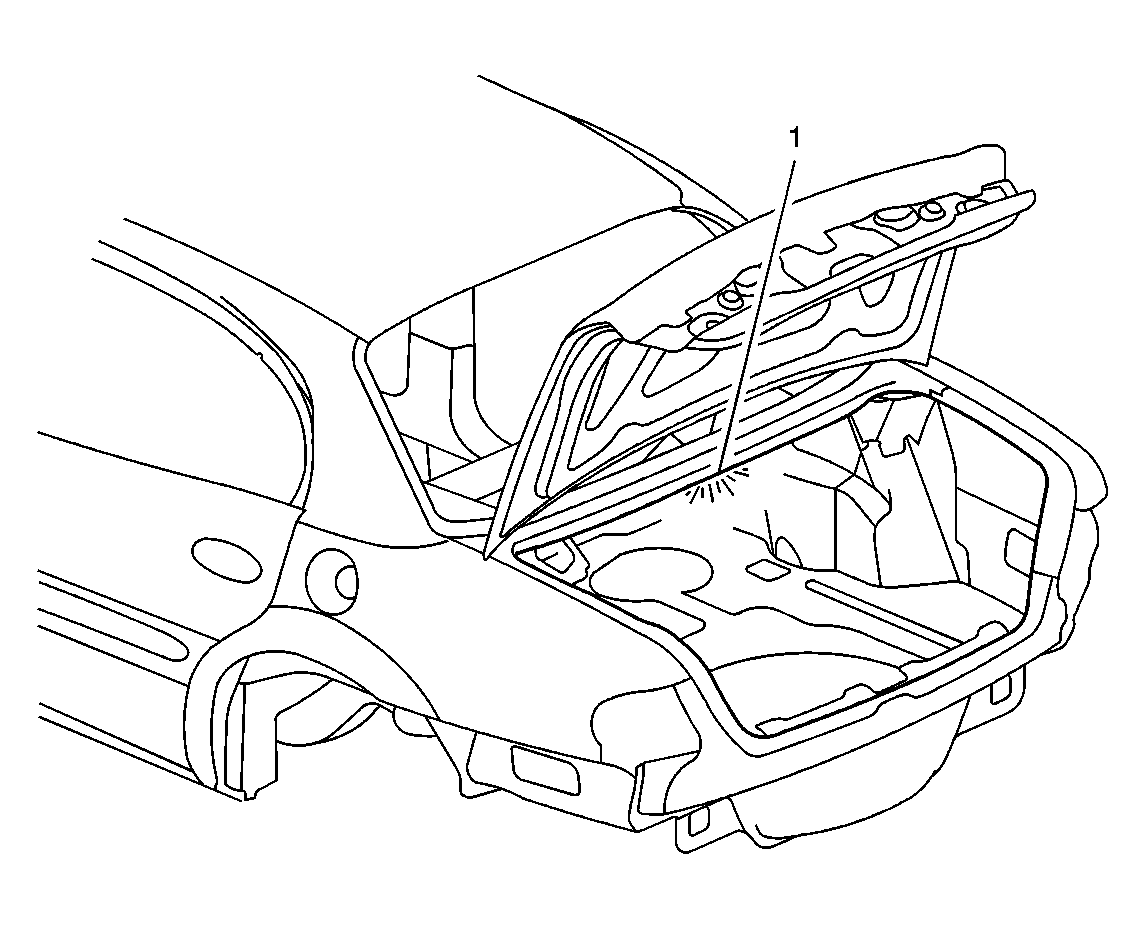

Fig 7: Rear Compartment Courtesy Lamp Component View

GM491505

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Courtesy Lamp

Fig 8: Right Front Door Trim Panel Component Views

GM482488

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock - Front Passenger
2	Courtesy Lamp - Left Front Door
3	Door Courtesy Lamp - RF
4	Window Switch - Front Passenger
5	HVAC Air Temperature Switch Assembly - Right

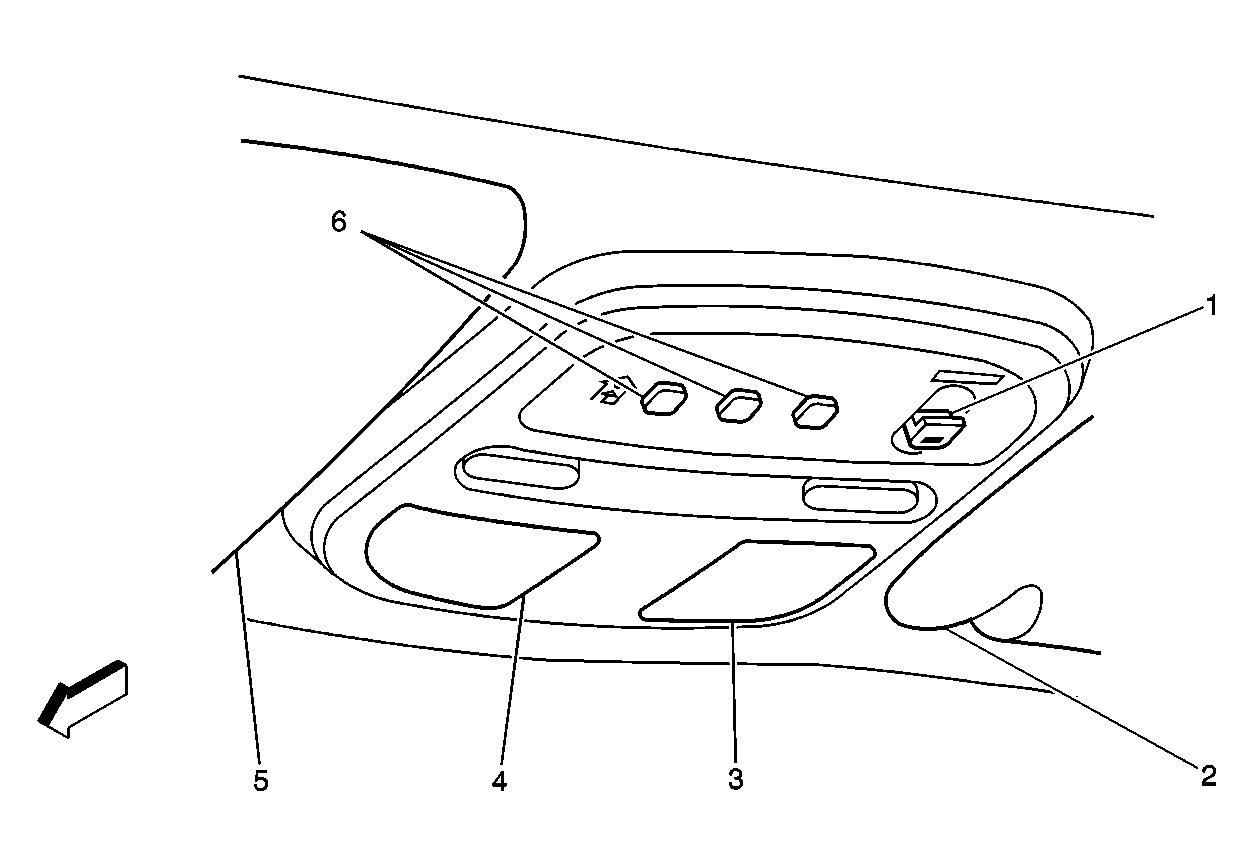

Fig 9: Overhead Console Component Views

GM491764

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Switch
2	Vanity Mirror - Right (on sunshade)
3	Courtesy/Reading Lamp - Right
4	Courtesy/Reading Lamp - Left
5	Vanity Mirror - Left (on sunshade)
6	Universal Garage Door Opener (UGDO)

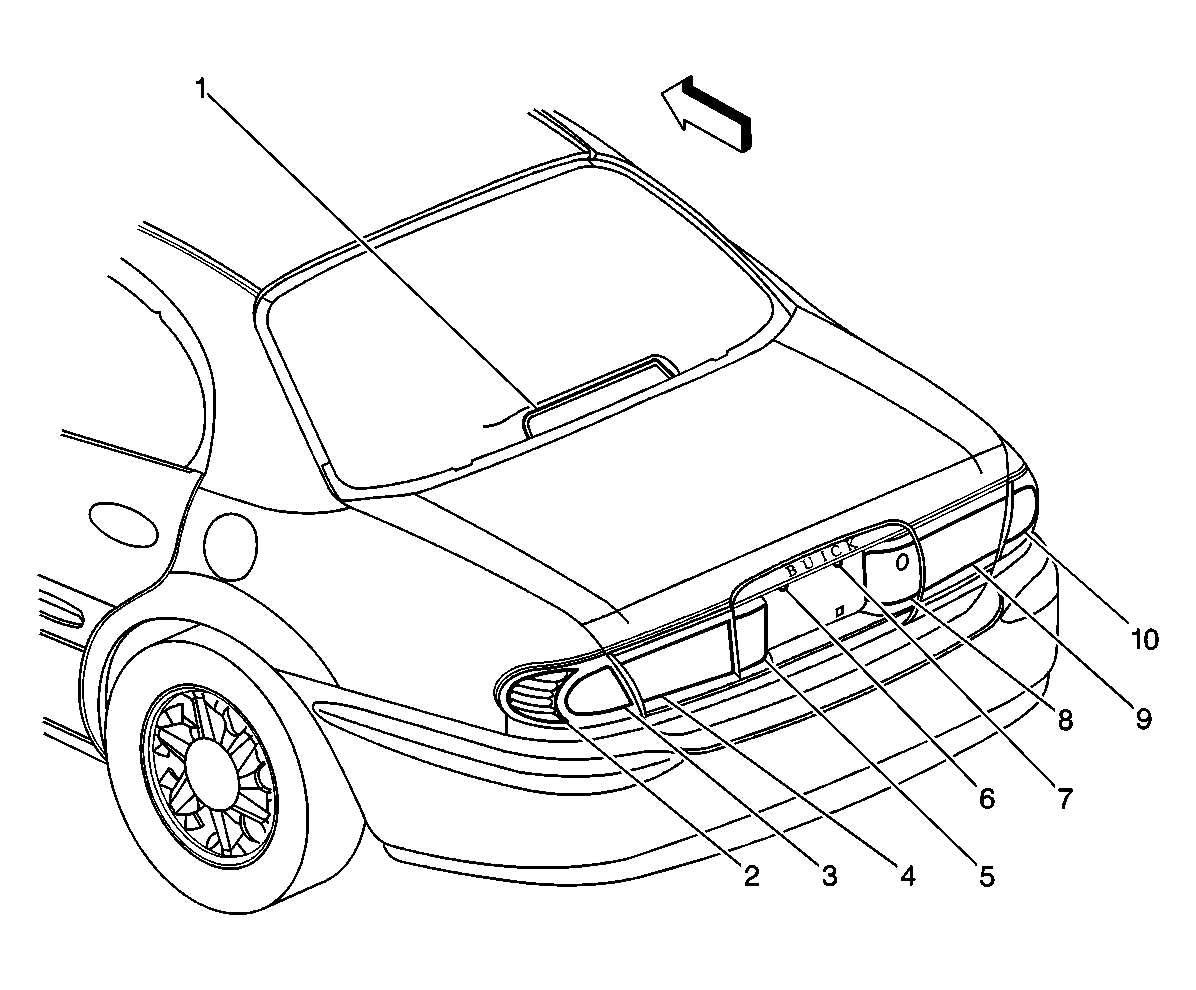

Fig 10: Rear Exterior Lighting Views Component View

GM491503

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL)
2	Left Rear Side Marker Lamp (Right Similar)
3	Tail/Stop and Turn Signal Lamp - Left
4	Tail Lamp - Left
5	Backup Lamp - Left
6	License Lamp
7	License Lamp
8	Backup Lamp - Right
9	Tail Lamps - Right
10	Tail/Stop and Turn Signal Lamp - Right
