Removal Procedure
WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the left sound insulator.

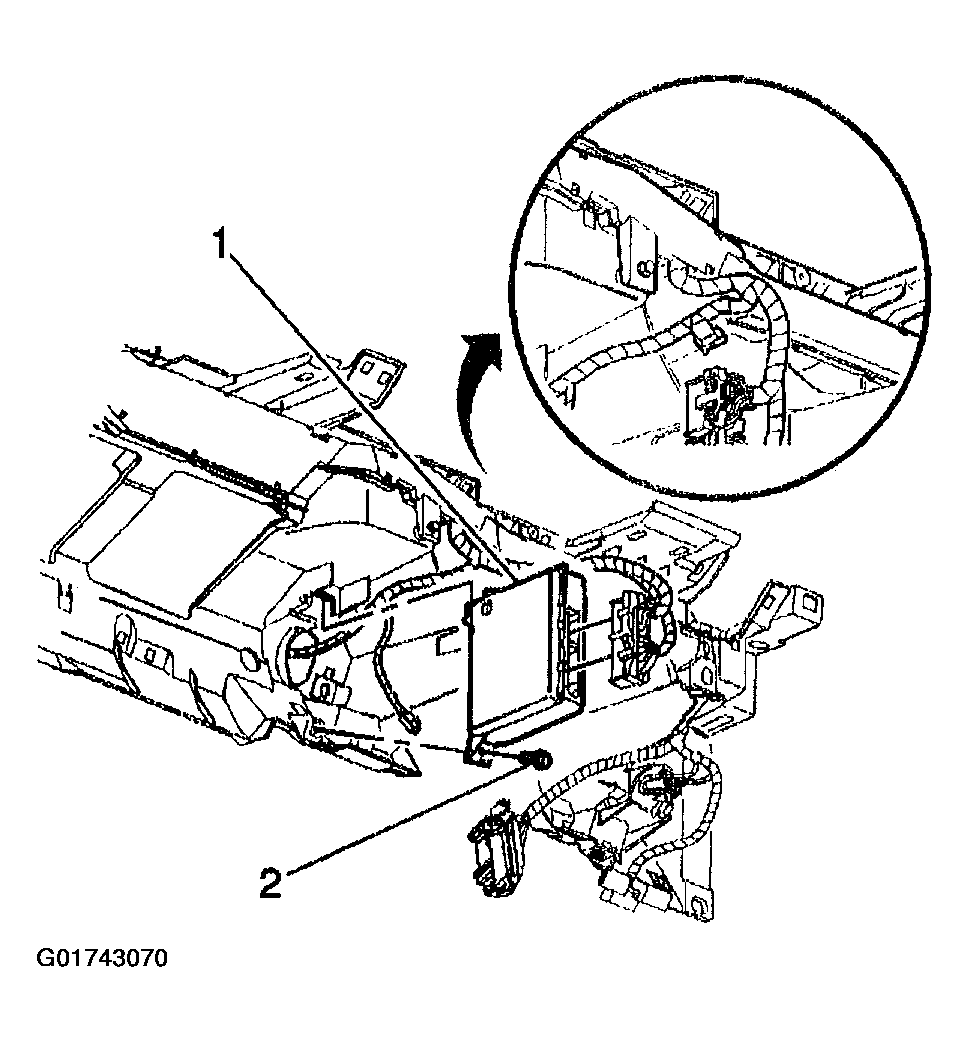

- Remove the fastener (2) from the instrument panel module (IPM).
- Rotate the IPM up and off of the IP retainer.
- Disconnect the electrical connectors from the IPM (1).
- Remove the IPM (1) from the vehicle.
