Removal & Installation

Record personalization settings to transfer to new module (if available). Remove fasteners holding right sound insulator to instrument panel. Disconnect harness connectors from sound insulator.
Slide sound insulator rearward. Release tab behind Dash Integration Module (DIM) to remove from bracket. Disconnect DIM harness connectors.
To install, reverse removal procedure. Reprogram DIM. See DASH INTEGRATION MODULE SET UP under PROGRAMMING.

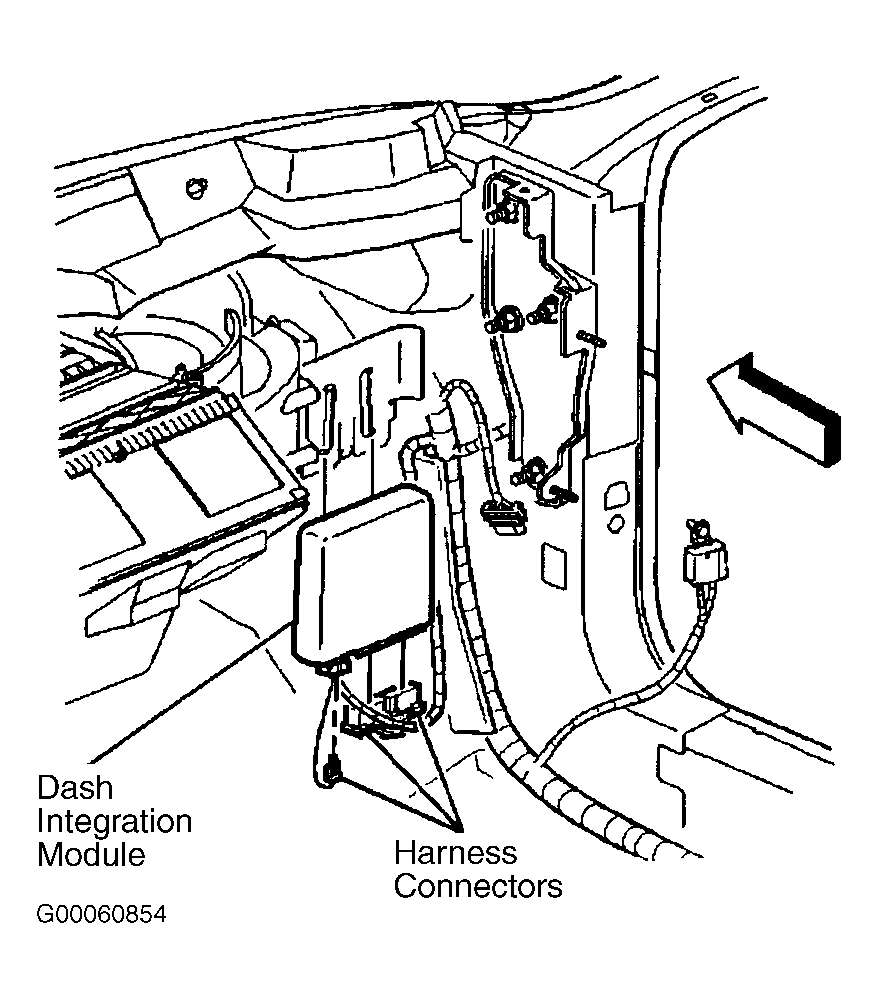

Fig 1: Removing & Installing Dash Integration Module
Courtesy of GENERAL MOTORS CORP.
