Section 109 (Computer/Integrating Systems)
›
Schematic and Routing Diagrams
›
Body Control System Schematics
Body Control System Schematics
WARNING:
This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

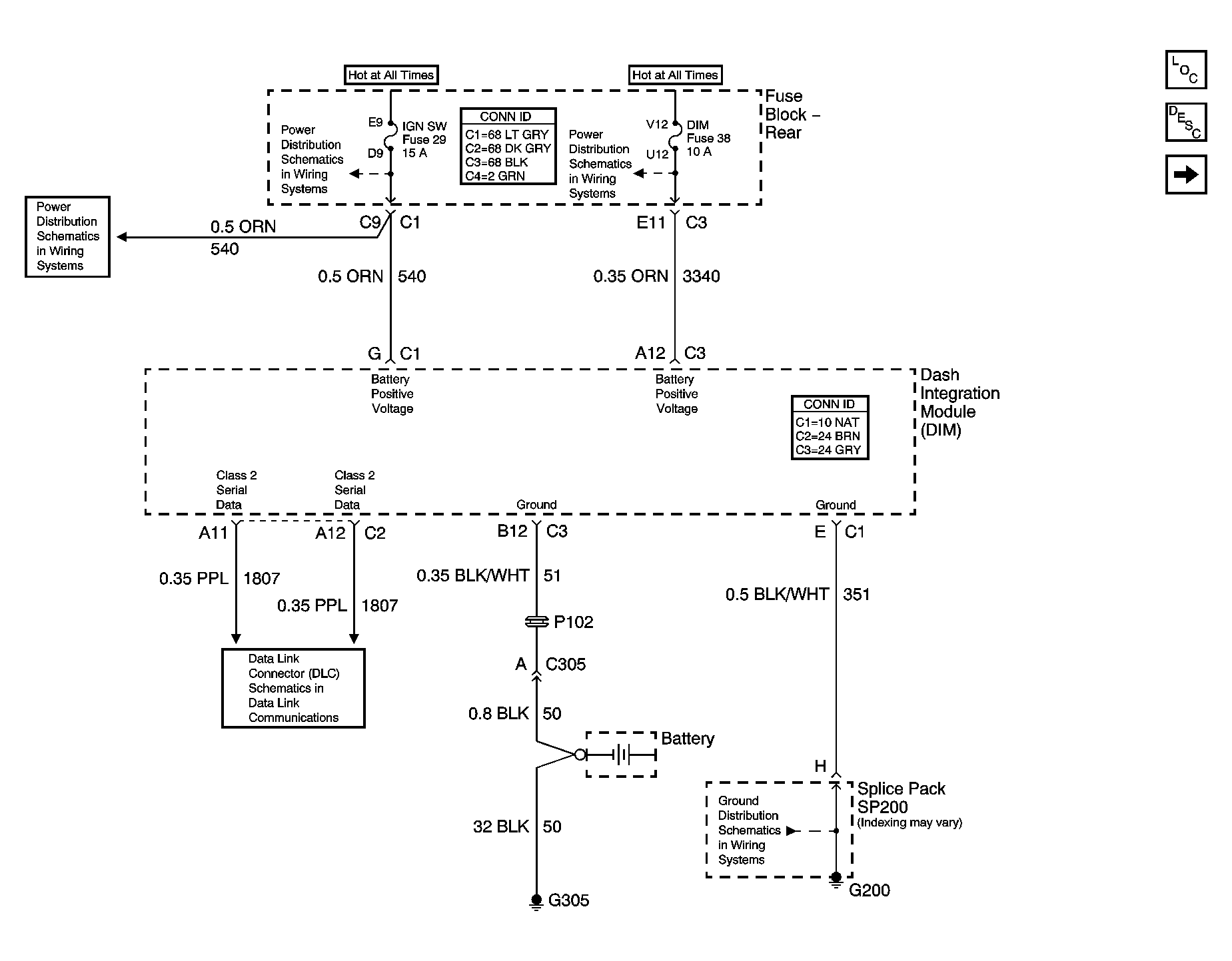

Fig 1: DIM Power and Grounds Schematic
Courtesy of GENERAL MOTORS CORP.

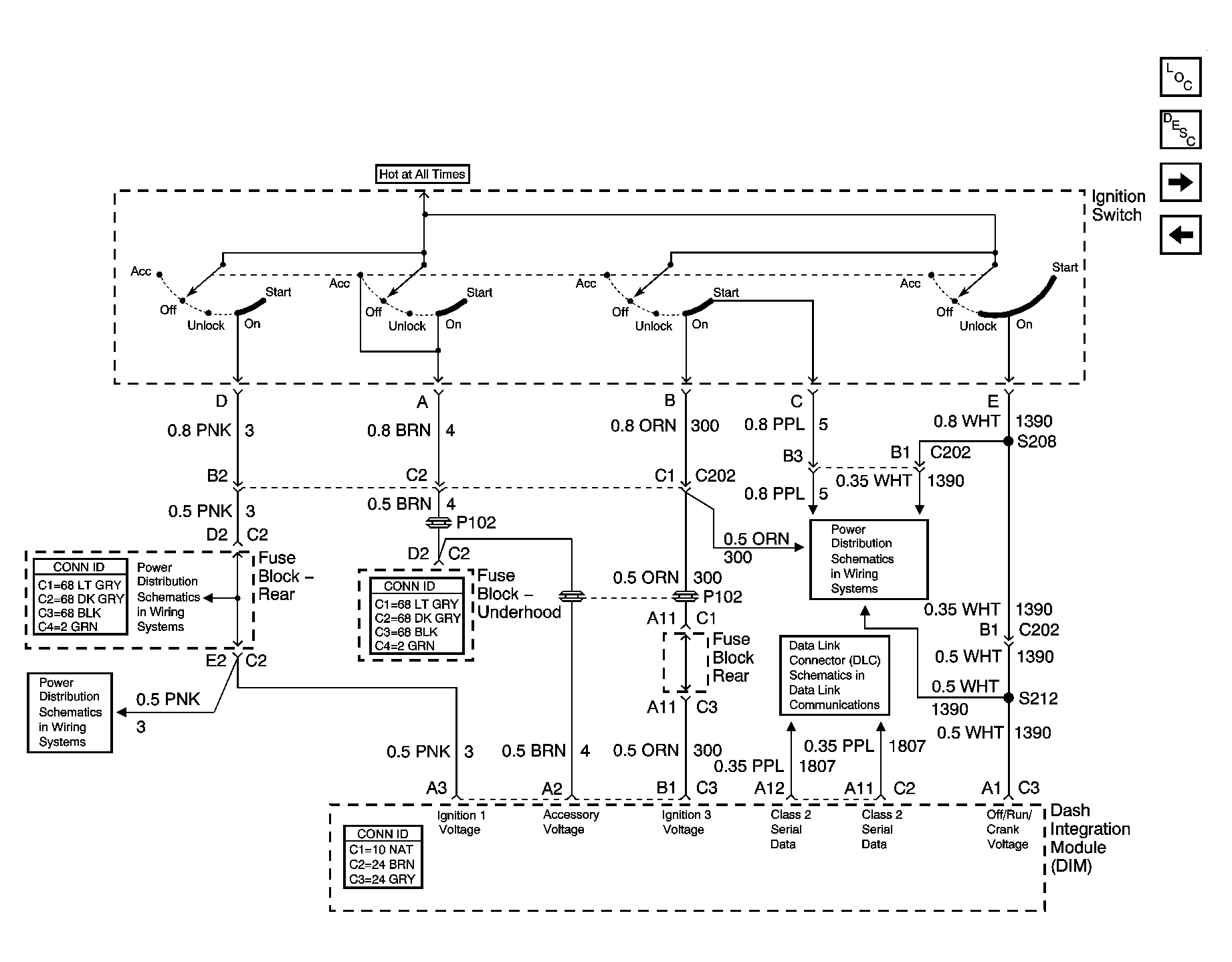

Fig 2: DIM Ignition Inputs Schematic
Courtesy of GENERAL MOTORS CORP.

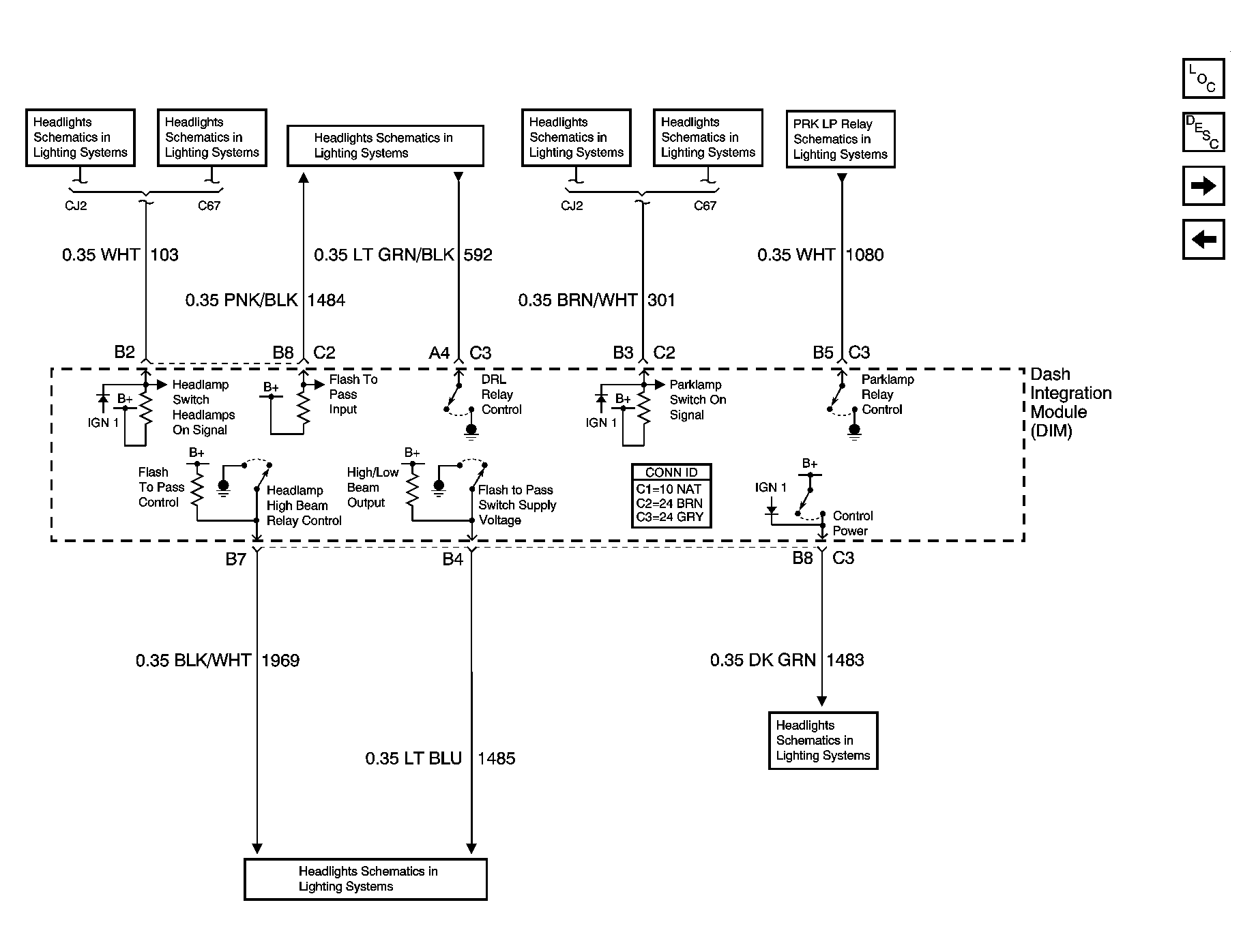

Fig 3: DIM Input/Output Schematic (1 of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 4: DIM Input/Output Schematic (2 of 2)
Courtesy of GENERAL MOTORS CORP.

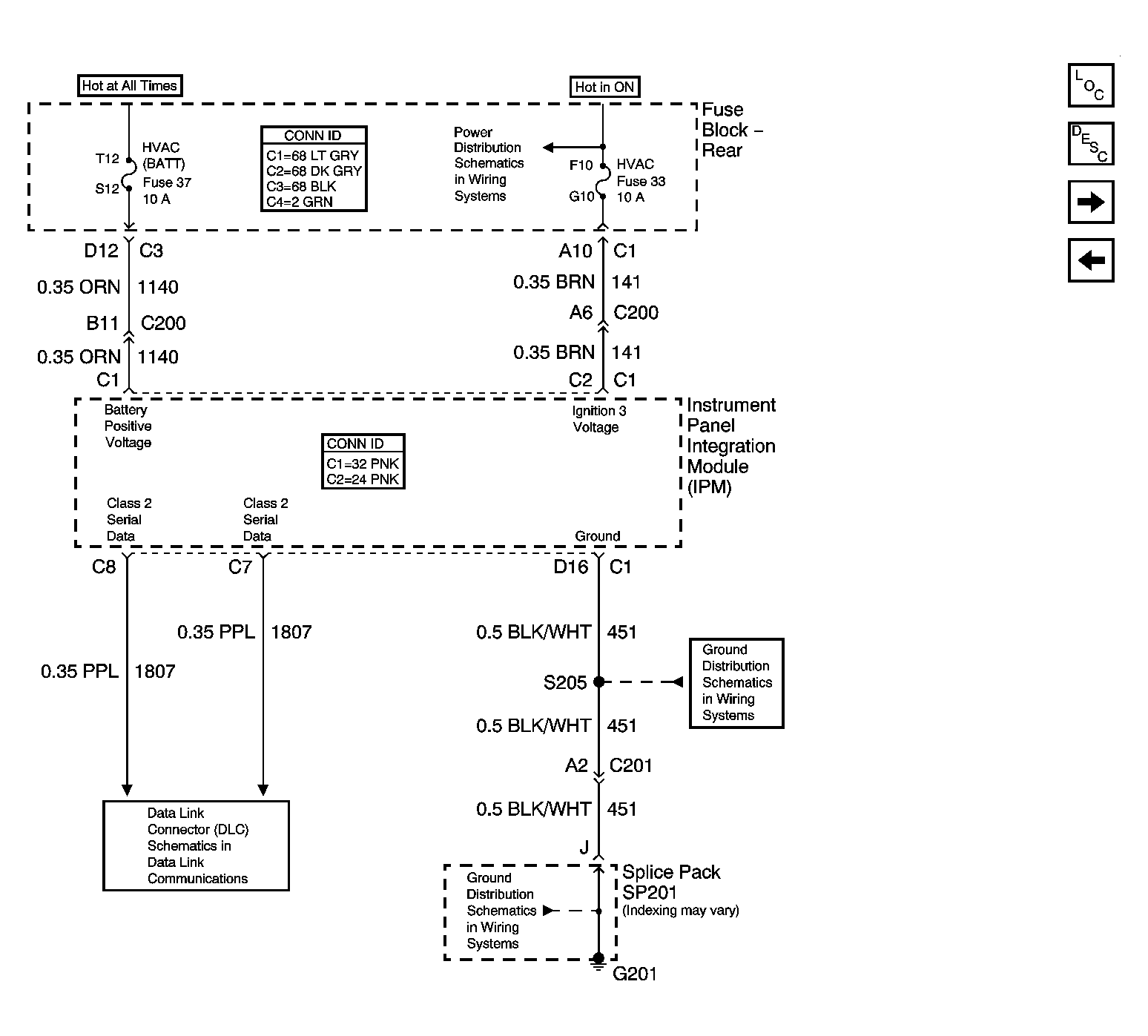

Fig 5: IPM Power and Grounds Schematic
Courtesy of GENERAL MOTORS CORP.

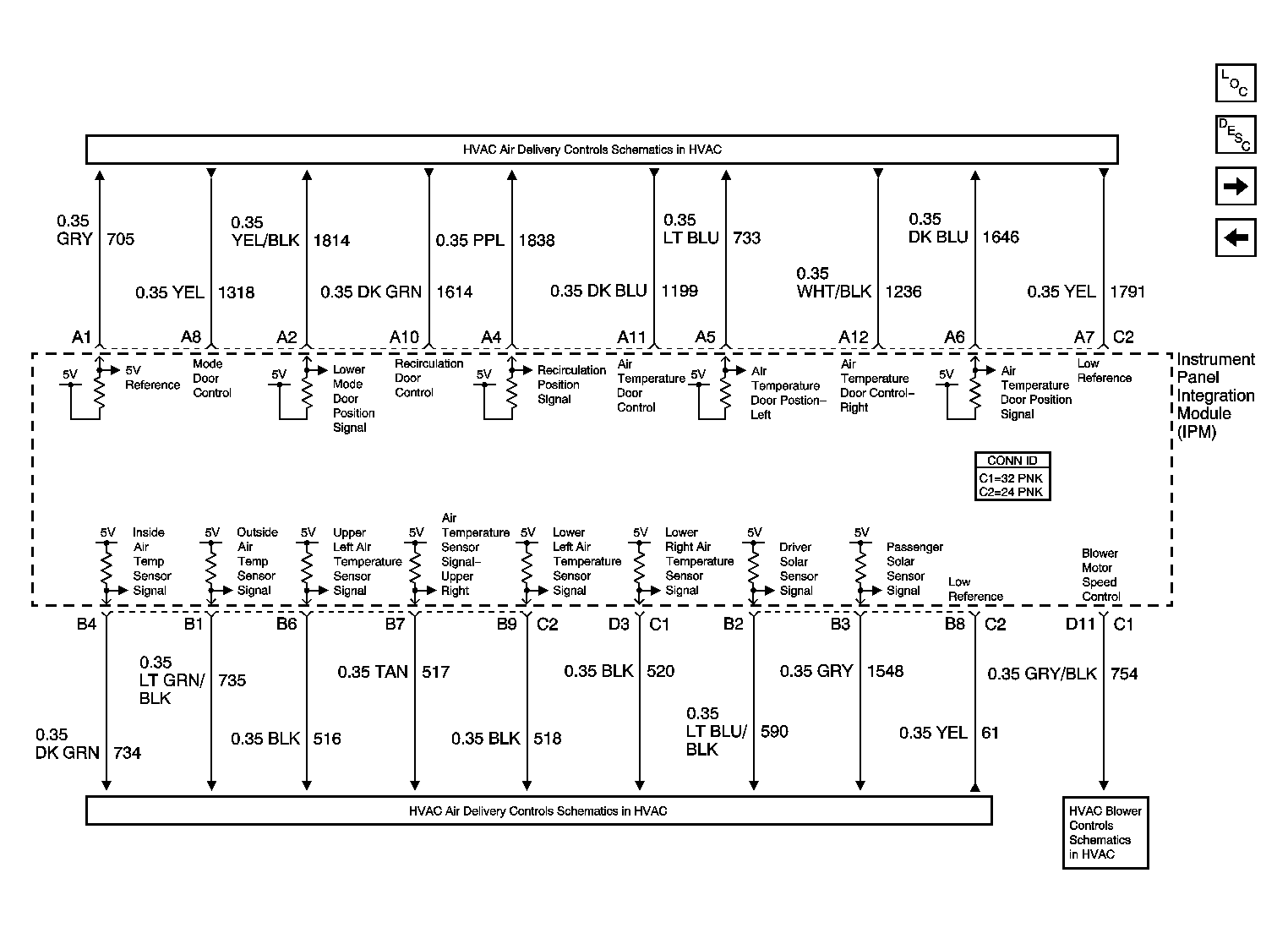

Fig 6: IPM Input/Output Schematic (1 of 2)
Courtesy of GENERAL MOTORS CORP.

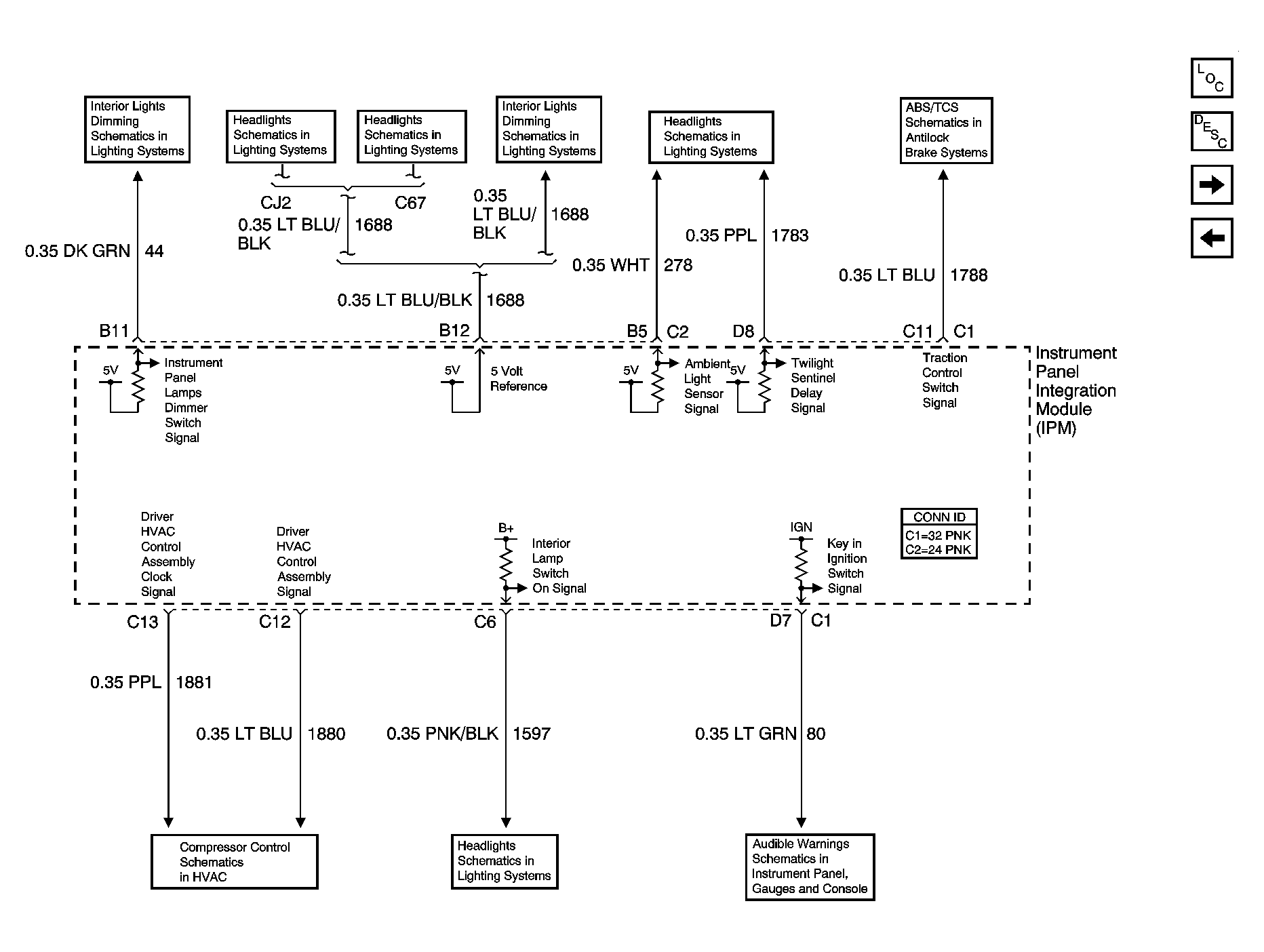

Fig 7: IPM Input/Output Schematic (2 of 2)
Courtesy of GENERAL MOTORS CORP.

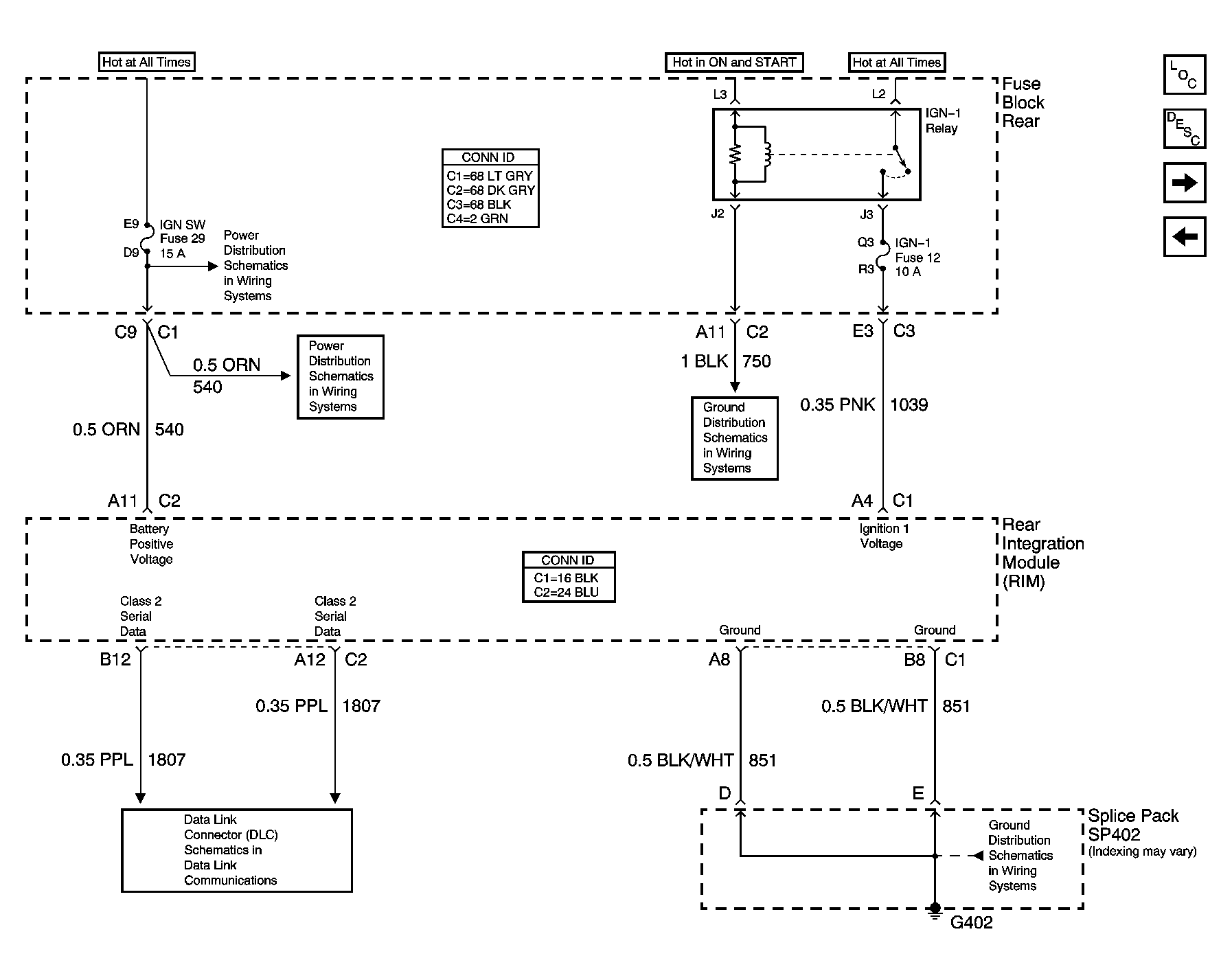

Fig 8: RIM Power and Grounds Schematic
Courtesy of GENERAL MOTORS CORP.

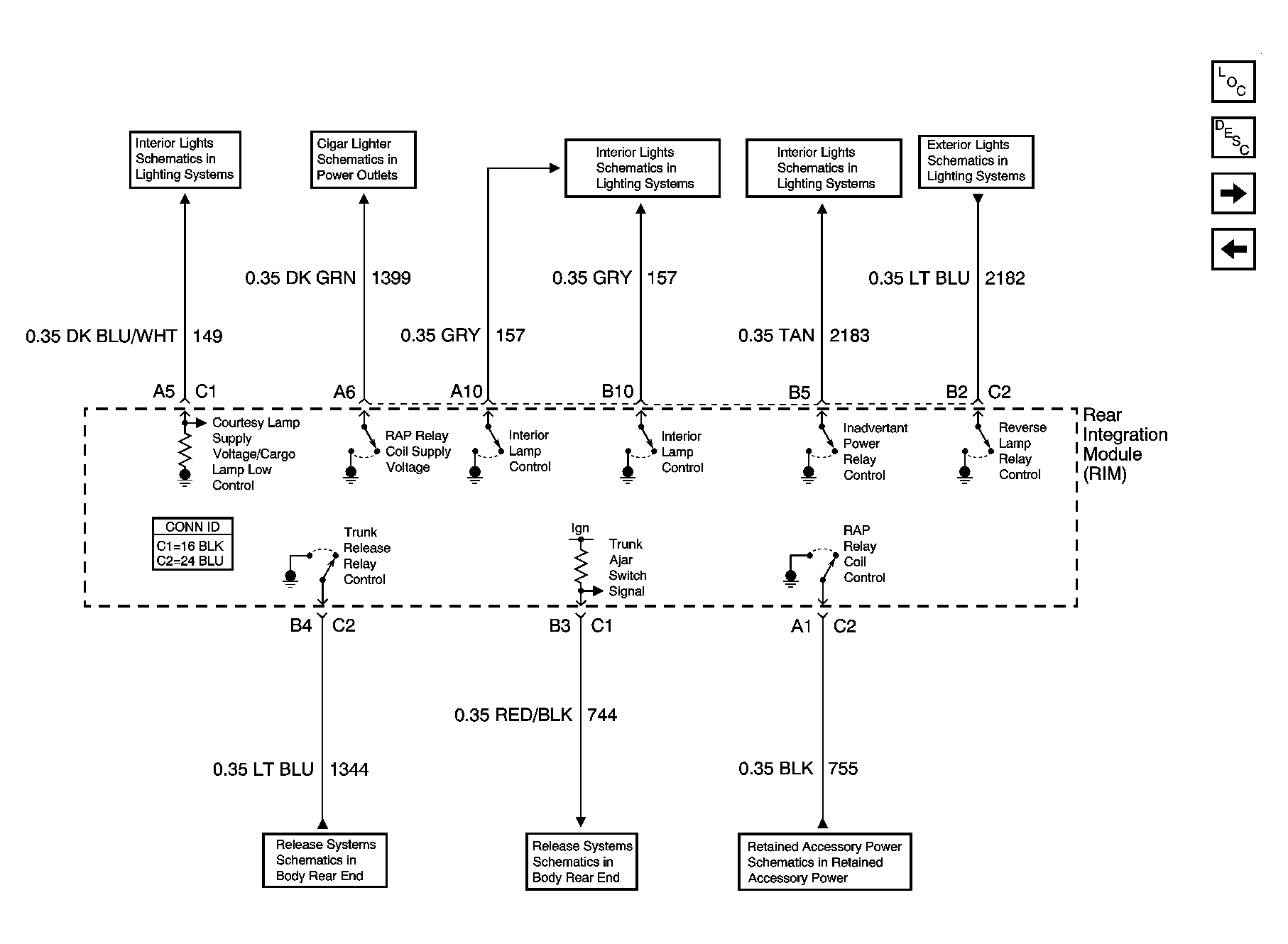

Fig 9: RIM Input/Output Schematic (1 of 2)
Courtesy of GENERAL MOTORS CORP.

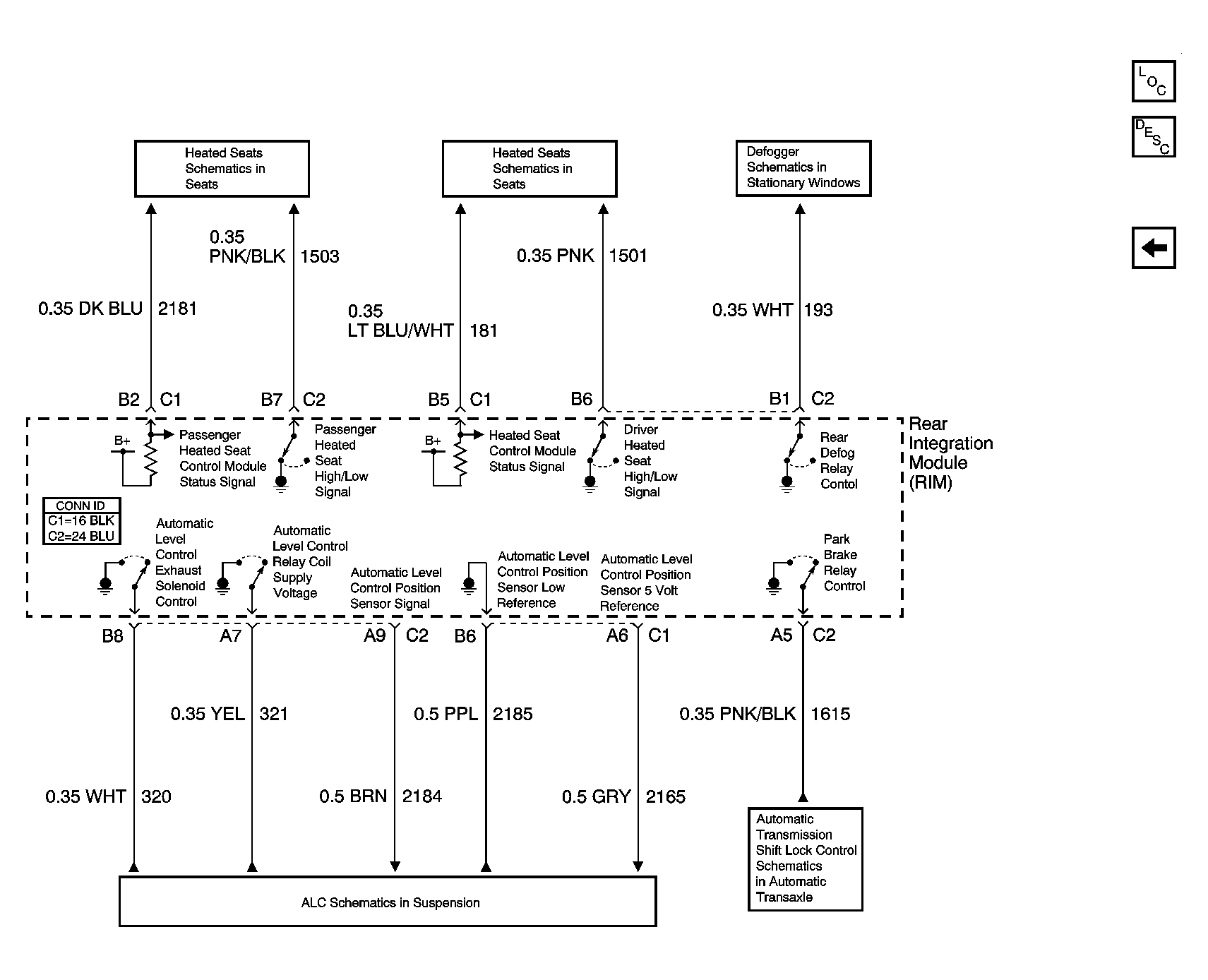

Fig 10: RIM Input/Output Schematic (2 of 2)
Courtesy of GENERAL MOTORS CORP.
