Driver Information Center Switch: Installation

1. Connect the electrical connector. See Fig 1 .
2. Install the driver information center switch into the instrument panel and press in to secure.

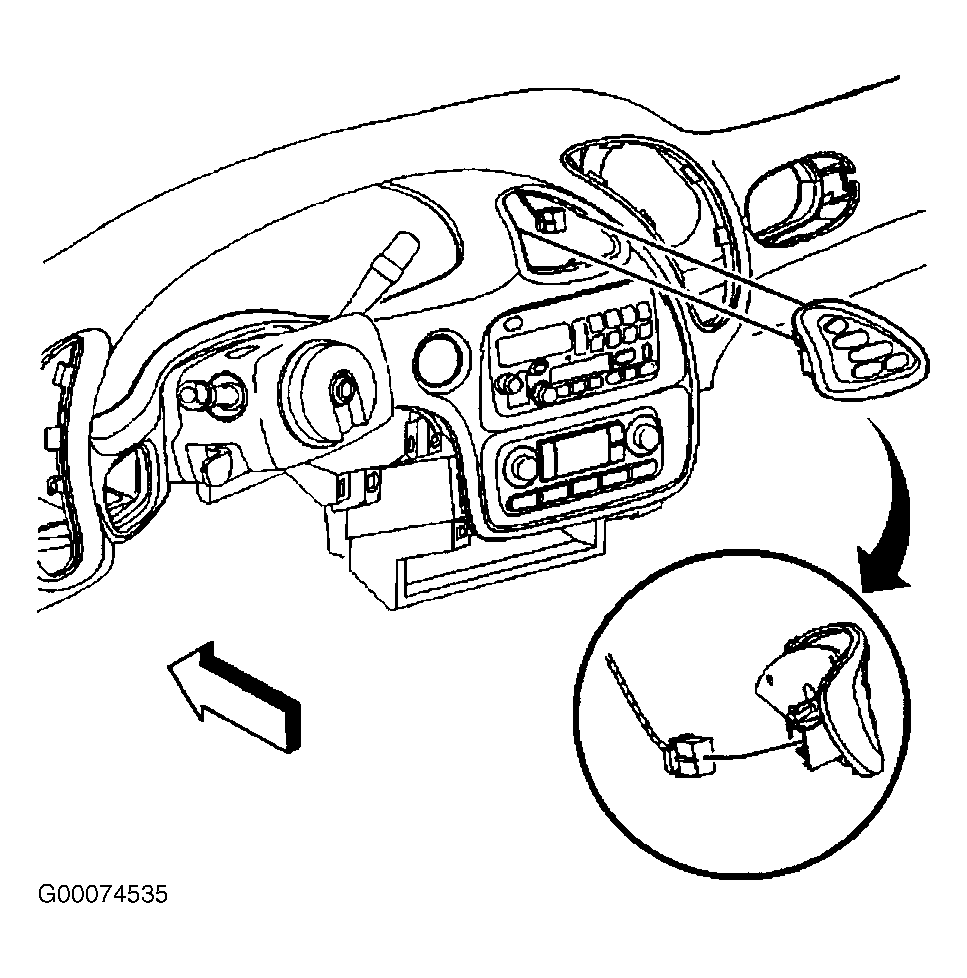

Fig 1: Removing & Installing DIC Switch & Connector

Courtesy of GENERAL MOTORS CORP.
