Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| A/C Compressor Diode | Near A/C compressor, in harness. |
| ELC Circuit Breaker | On rear fuse block. |

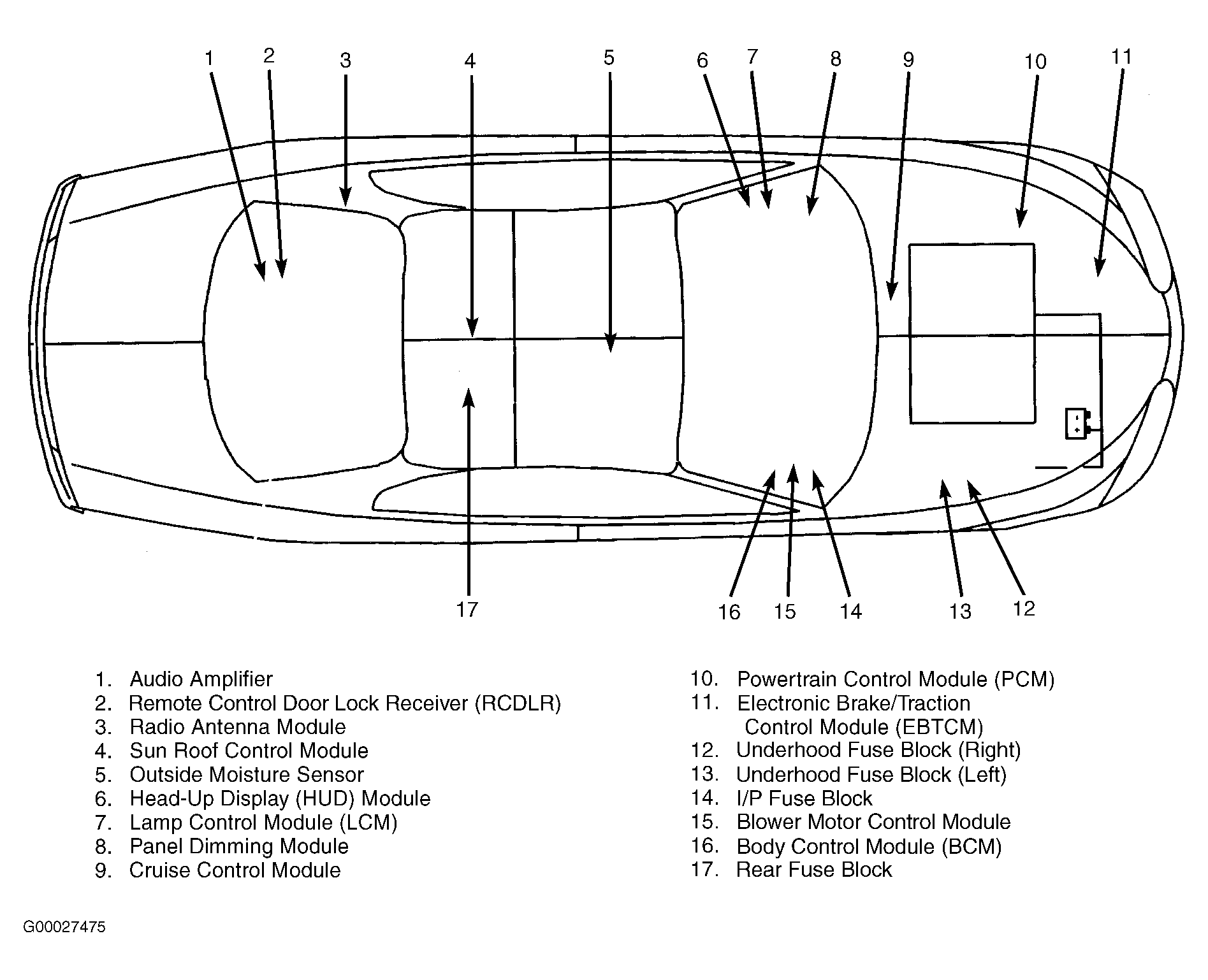

| I/P Fuse Block | Behind glove box. See Figure . |
| Power Seat Circuit Breaker | On rear fuse block. |
| Power Window Circuit Breaker | On underhood fuse block (right). |
| Rear Fuse Block | Below right side of rear seat. See Figure . |
| Steering Column Fuse Holder | At base of steering column. |
| Underhood Fuse Block (Left) | On right front of engine compartment, near battery. See Figure . |
| Underhood Fuse Block (Right) | On right front of engine compartment, forward of strut tower. See Figure . |
