Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Audio Amplifier | Under left side of rear package shelf. See Figure . |
| Blower Motor Control Module | Behind right side of dash, on heater & A/C case. See Figure . |
| Body Control Module (BCM) | Behind glove box. See Figure . |
| Cruise Control Module | On firewall, near brake master cylinder. See Figure . |
| Door Module (DDM), Driver's | Inside driver's door, above radio speaker. |
| Door Module (PDM), Passenger's | Inside front passenger's door, above radio speaker. |
| Door Module (RDM), Rear | Under right side of rear seat. |
| Electronic Brake/Traction Control Module (EBTCM) | On left front corner of engine compartment, near base of radiator support. See Figure . |
| Head-Up Display (HUD) Module | Behind upper left side of dash. See Figure . |
| Heated Seat Module (Left/Right) | On underside of respective front seat. |

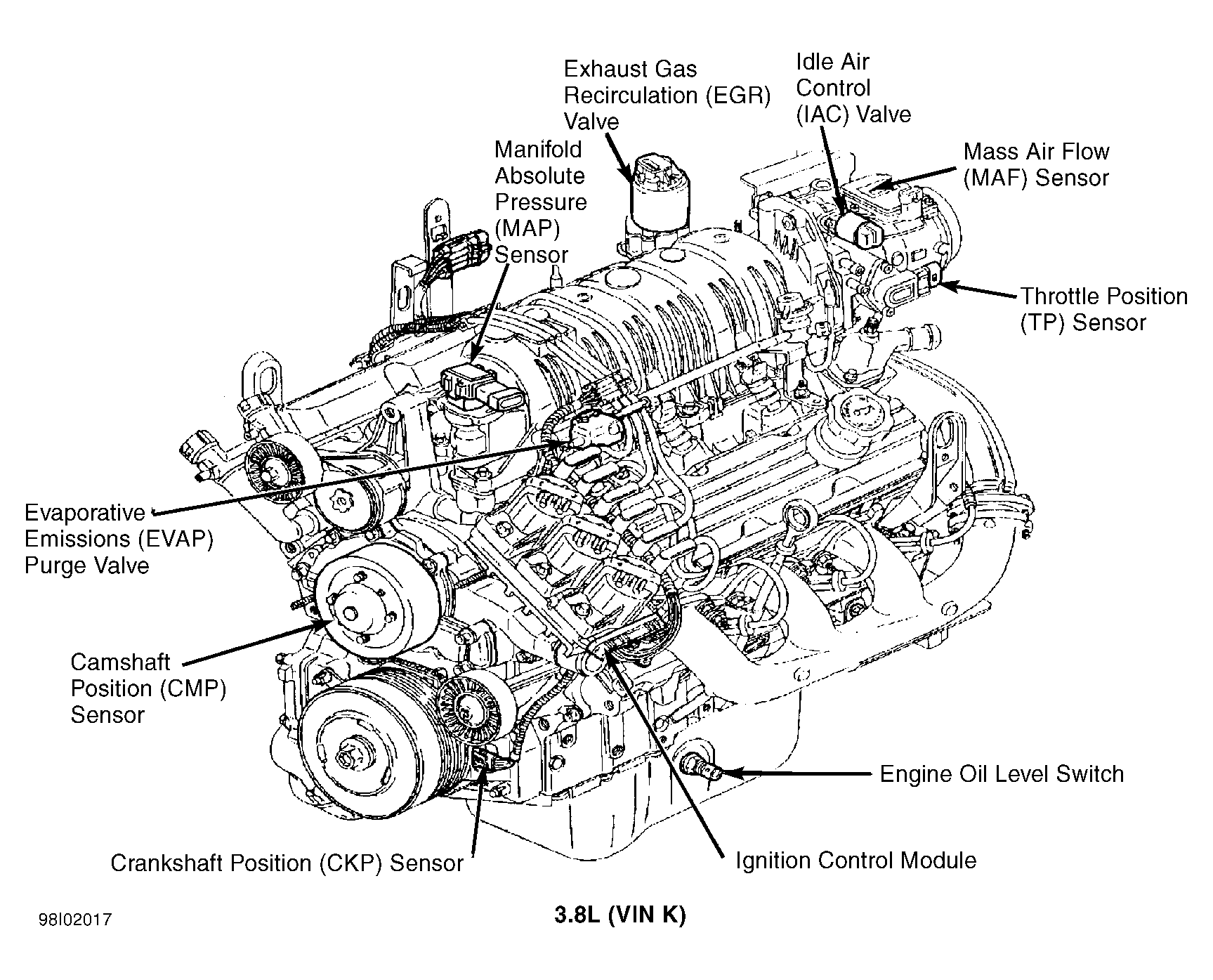

| Ignition Control Module (3.8L VIN K) | At left front of engine, under ignition coils. See Figure . |

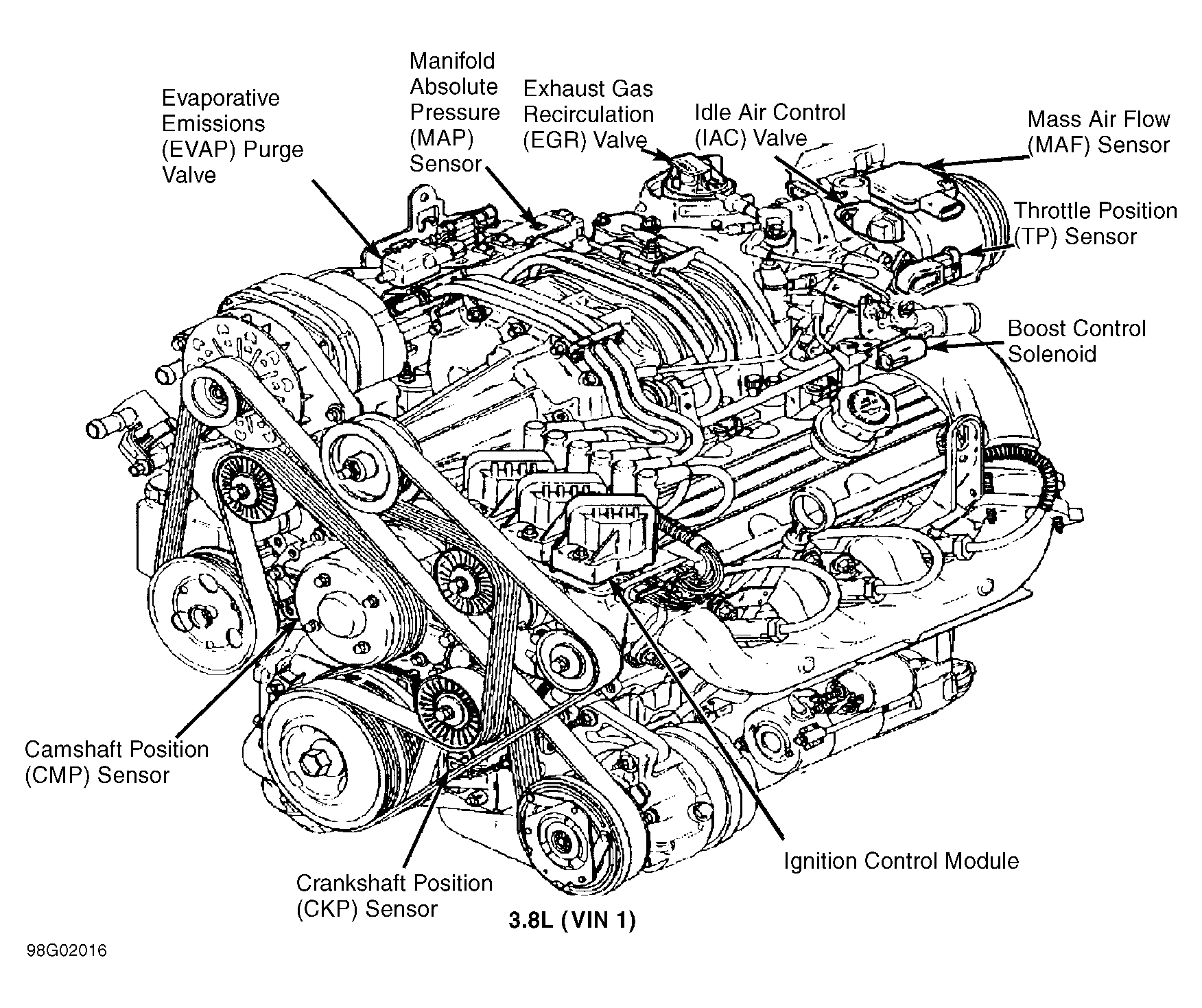

| Ignition Control Module (3.8L VIN 1) | At left front of engine, under ignition coils. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below right front seat, under carpet. |
| Instrument Panel Integration Module (IPM) | Behind right side of dash, near rear of glove box. |
| Lamp Control Module (LCM) | Behind left side of dash, right of steering column. See Figure . |
| Memory Seat Module (MSM) | On underside of left front seat, on seat adjuster frame. |
| Panel Dimming Module | Behind left side of dash, right of steering column. See Figure . |
| Powertrain Control Module (PCM) | On left front of engine compartment, in air cleaner housing. See Figure . |
| Radio Antenna Module | Behind left rear upper sail trim panel. See Figure . |
| Rear Object Sensor Control Module | Under right side of rear window shelf. |
| Remote Control Door Lock Receiver (RCDLR) | Under center of rear package shelf. See Figure . |
| Sun Roof Control Module | On rear underside of roof. See Figure . |
| Theft Deterrent Module | In steering column. |
| Turn Signal/Hazard Flasher Module | Behind dash, right of steering column carrier. |
| Vehicle Communication Unit (VCU) | On right front of trunk, attached to seat back brace. |
| Vehicle Interface Unit (VIU) | On right front of trunk, attached to seat back brace. |
