Removal Procedure

  1. Remove the trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .
  3. Remove the armrest bracket screws.
  4. Remove the armrest bracket.

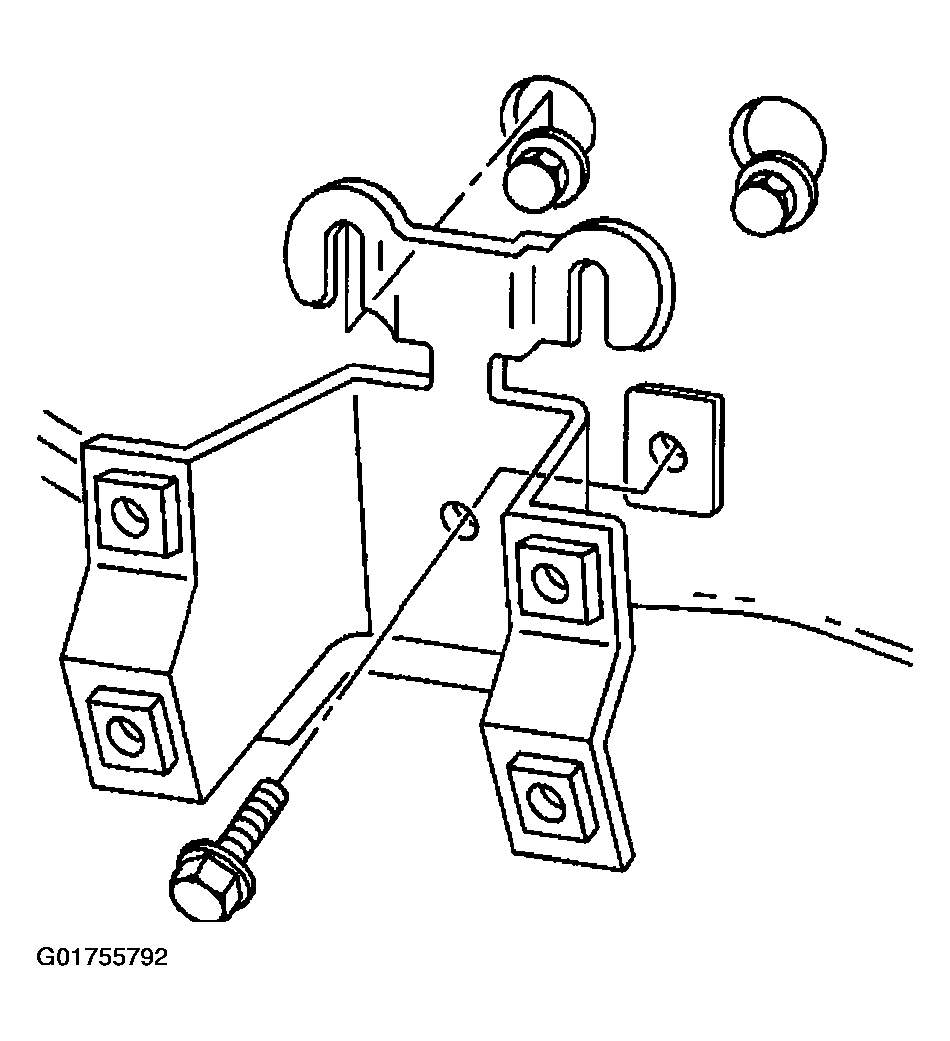

    5. Fig 1: Identifying Armrest Bracket
    G01755792Courtesy of GENERAL MOTORS CORP.
