ABS Component Views
ABS Component Views
Fig 1: Right Rear Side of Engine Compartment Component Views
Courtesy of GENERAL MOTORS CORP.

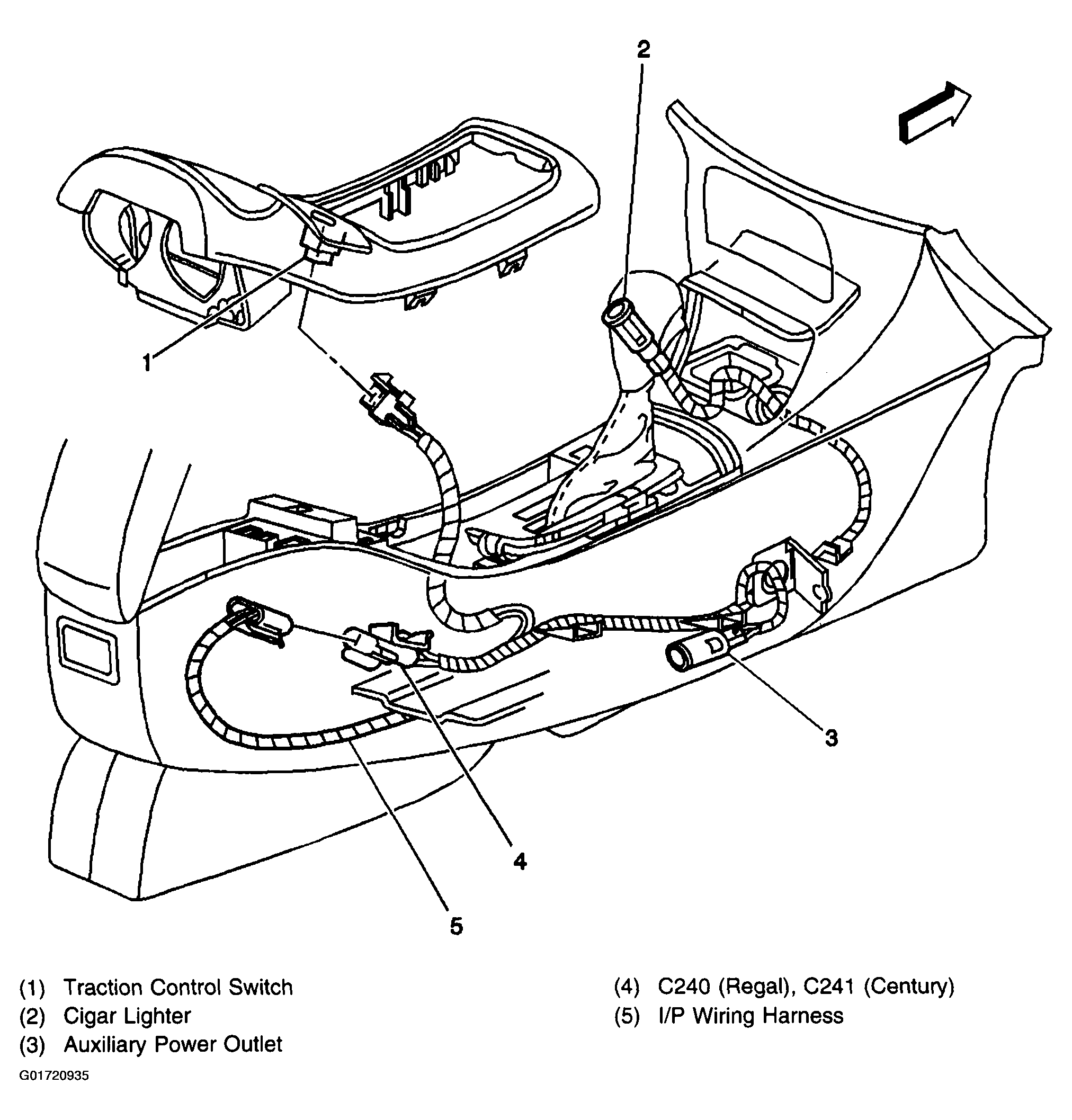

Fig 2: Center Console (RPO D55) Component Views
Courtesy of GENERAL MOTORS CORP.

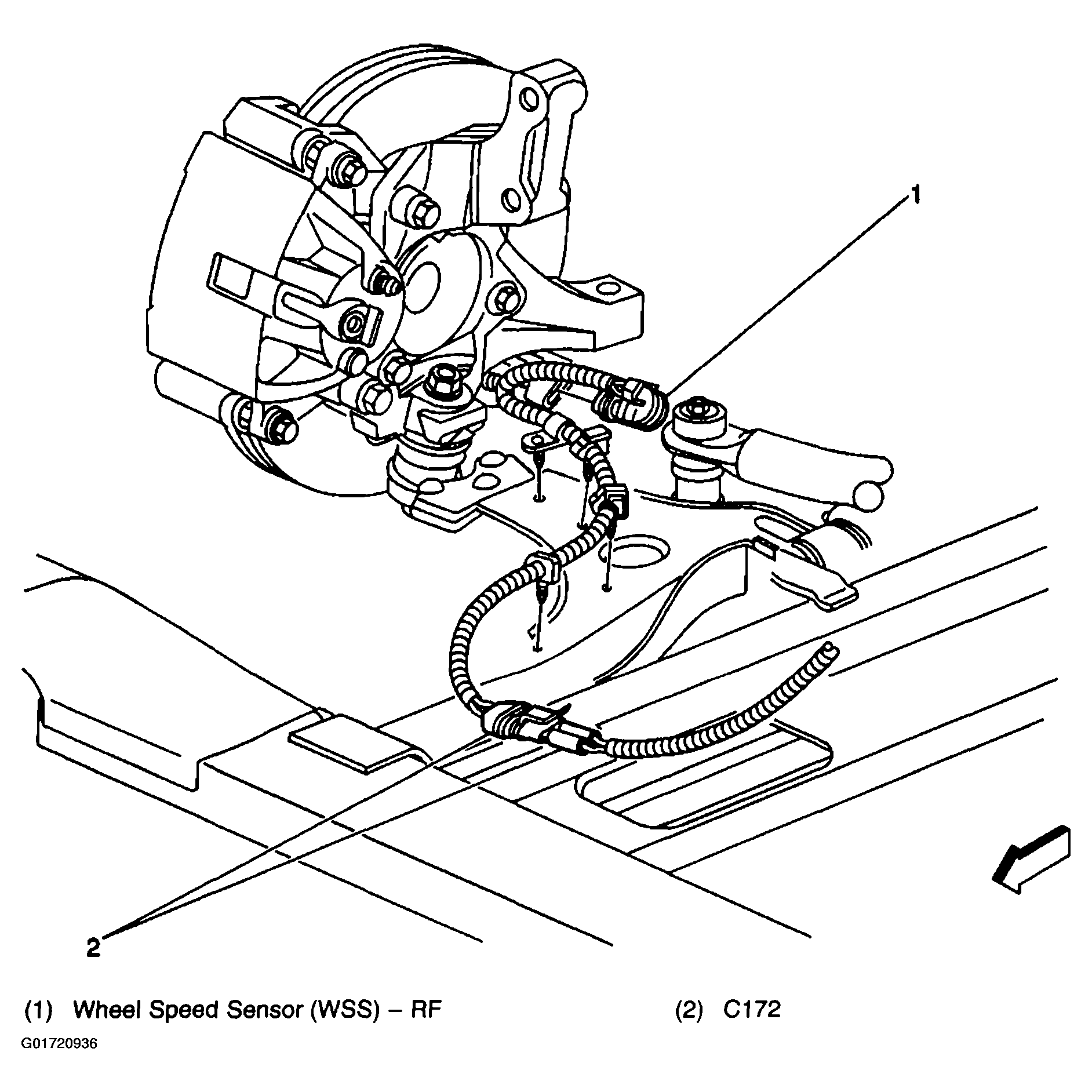

Fig 3: Right Front Wheel Speed Sensor Component Views
Courtesy of GENERAL MOTORS CORP.

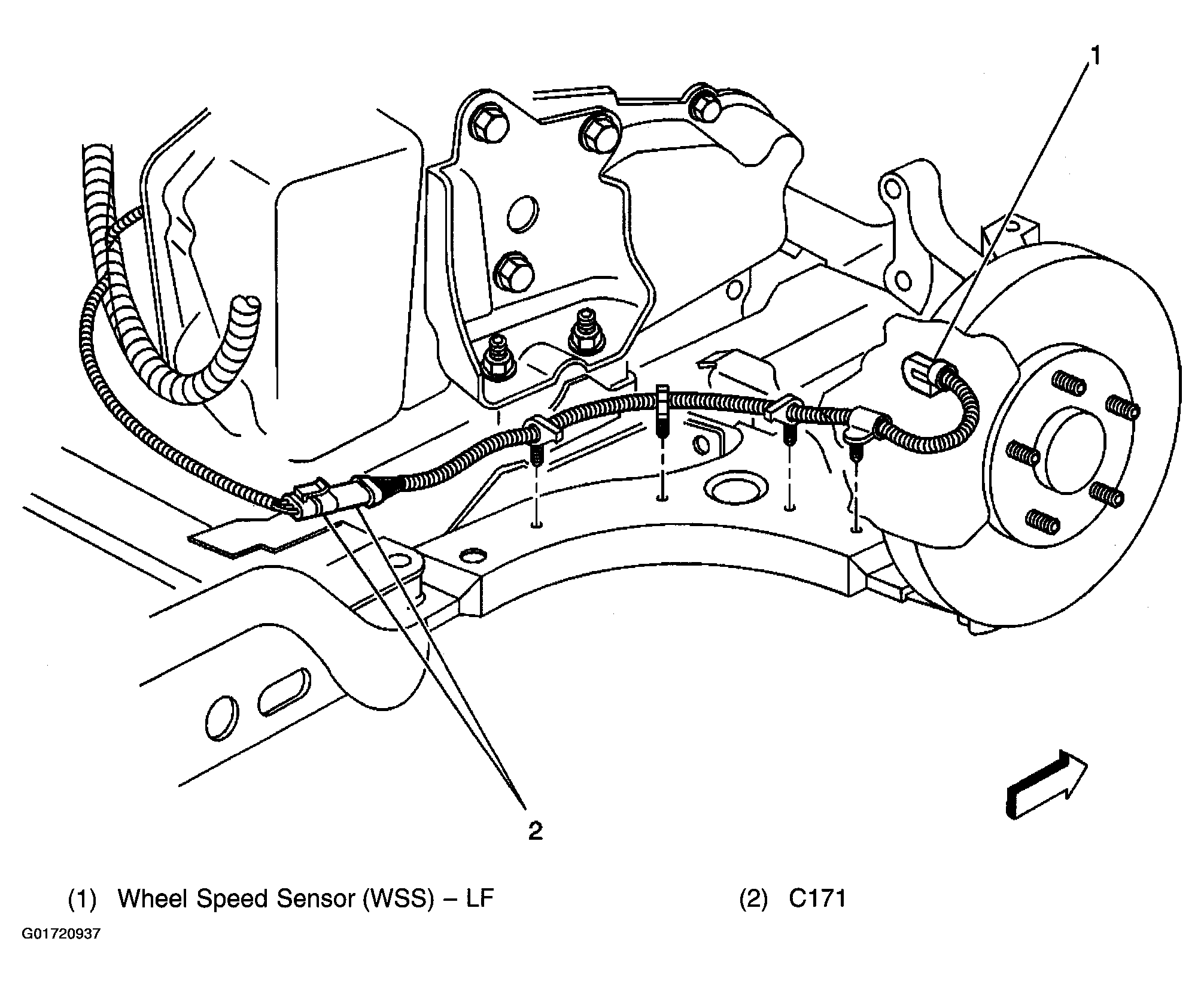

Fig 4: Left Front Wheel Speed Sensor Component Views
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
