Installation Procedure

Install the hub and bearing assembly (2) to the vehicle. Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT .

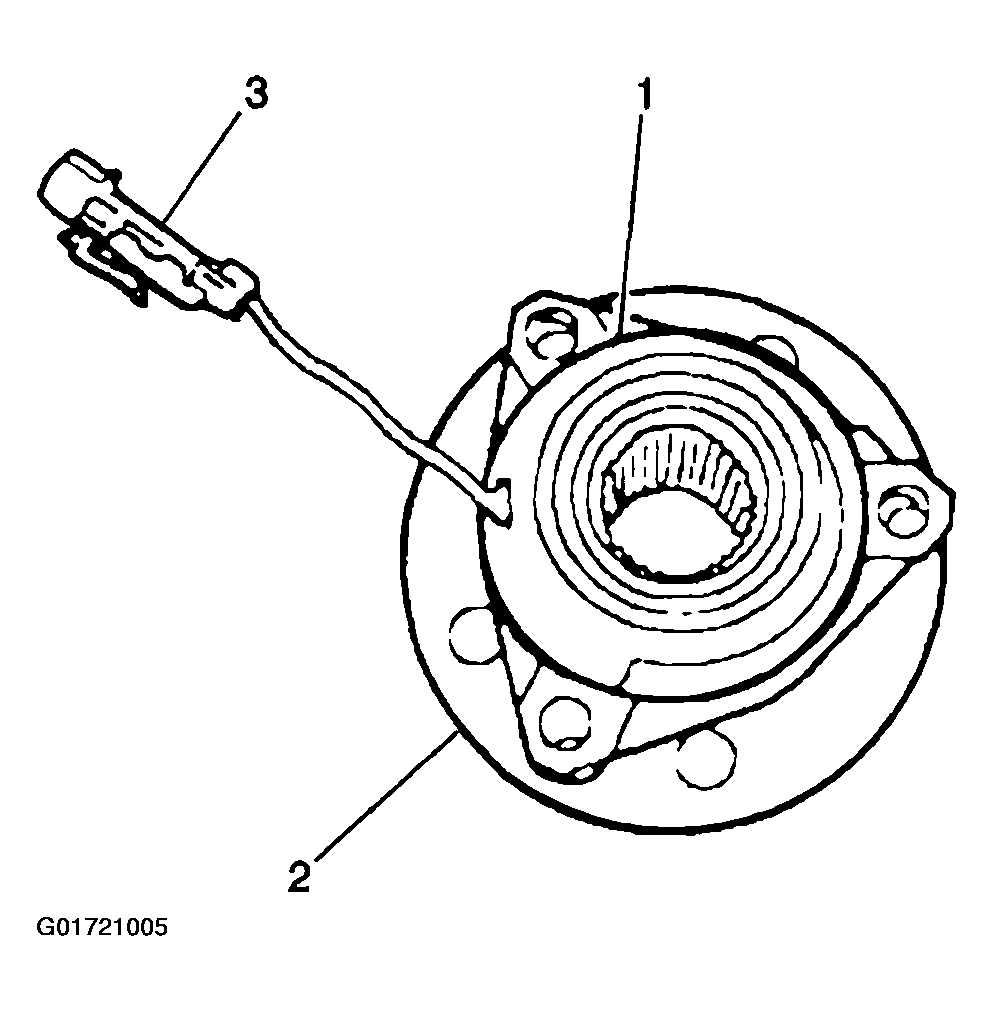

Fig 1: Wheel Hub/Bearing Assembly
Courtesy of GENERAL MOTORS CORP.
Install the front wheel speed sensor jumper harness electrical connector (1).

Fig 2: Front Wheel Speed Sensor Jumper Harness Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install the wheel and tire assembly.
Lower the vehicle.
Turn the ignition switch to the ON position with the engine off.
Perform the Diagnostic System Check - ABS .
