Retained Accessory Power (RAP) Connector End Views
Retained Accessory Power (RAP) Connector End Views

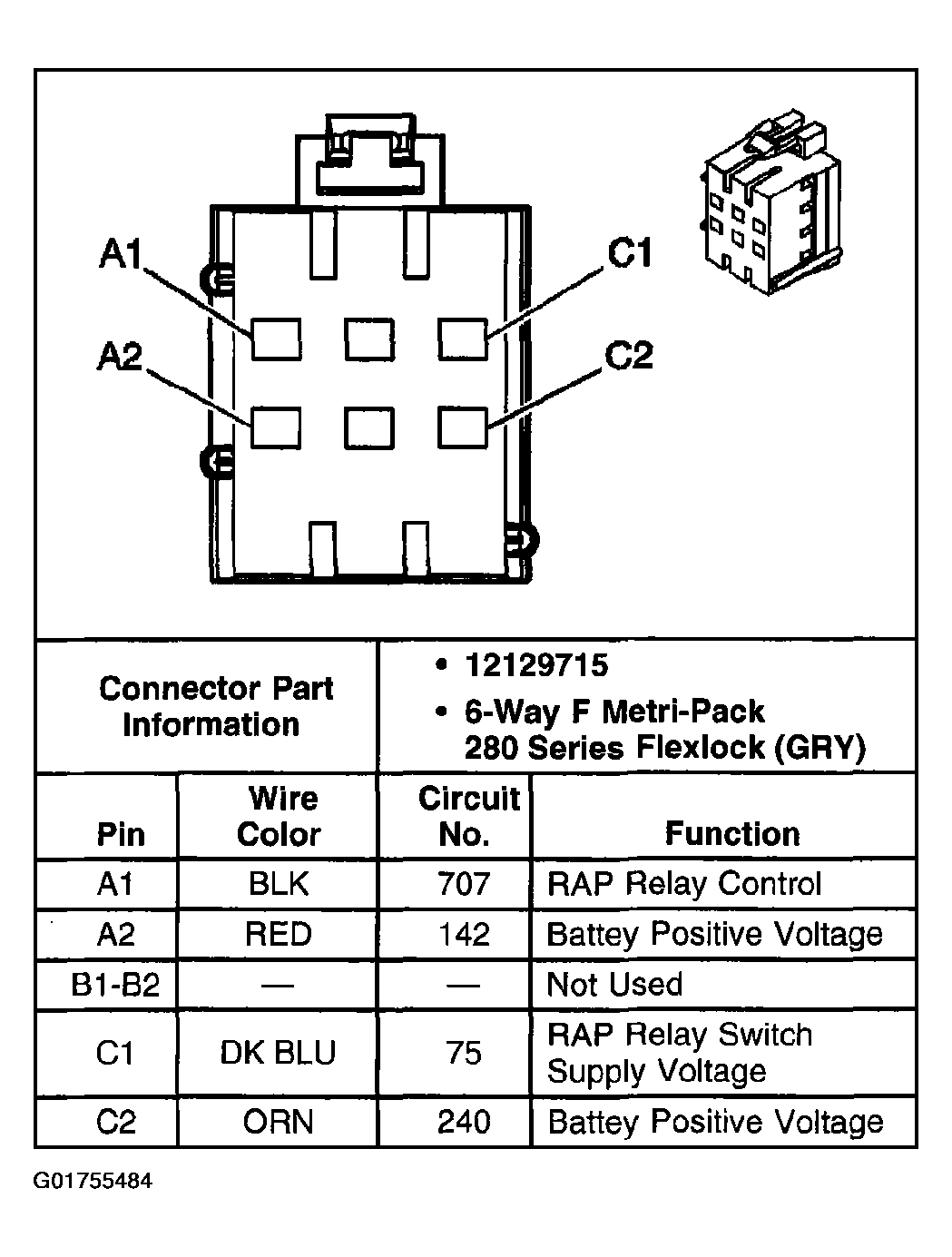

Fig 1: Identifying Retained Accessory Power (RAP) Relay Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
