Horns Component Views

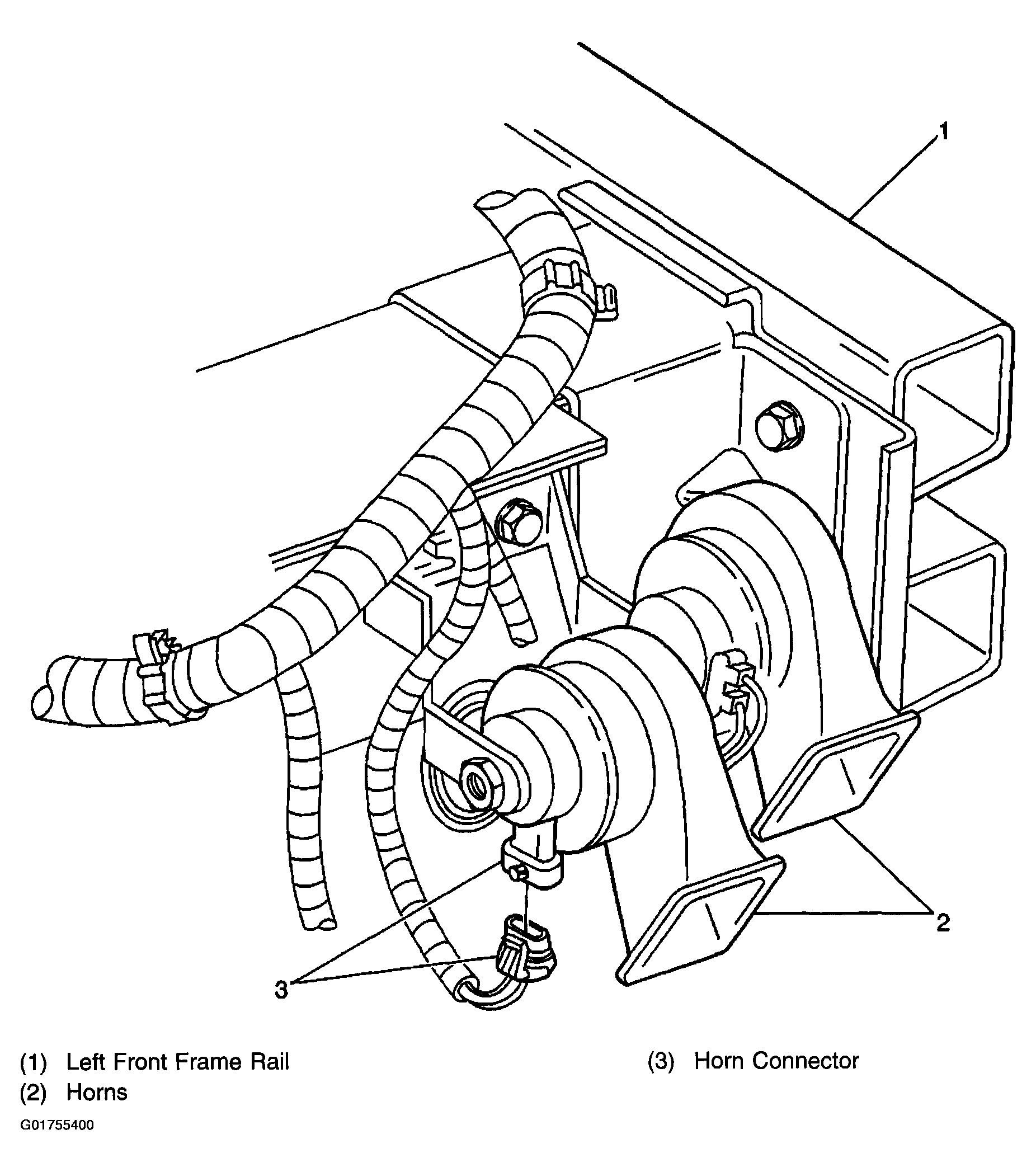

Fig 1: Identifying Lower Left Front of Vehicle Component View
G01755400Courtesy of GENERAL MOTORS CORP.

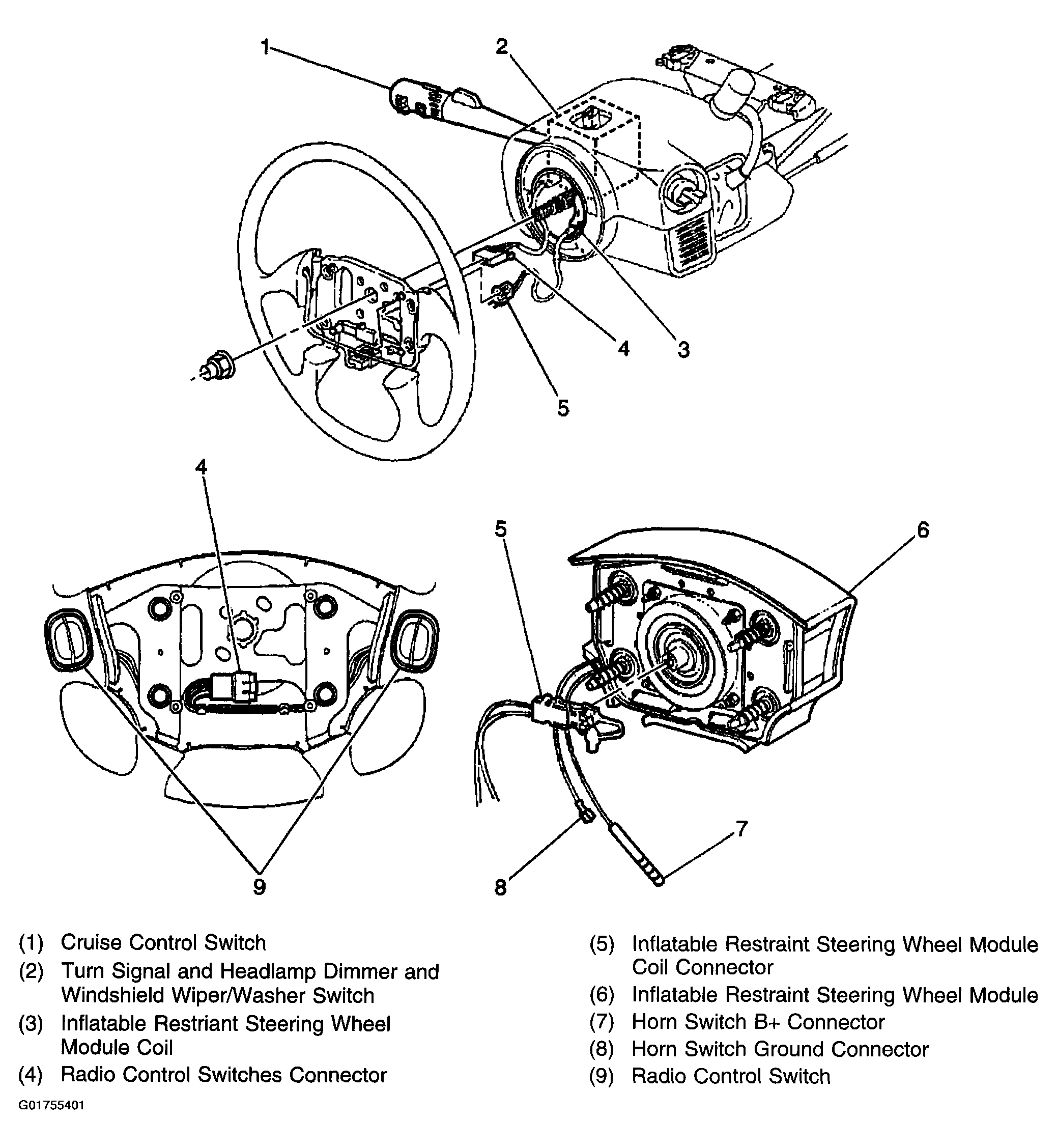

Fig 2: Identifying Steering Wheel Component View
G01755401Courtesy of GENERAL MOTORS CORP.
