Camshaft Position Sensor: Installation
NOTE:
Inspect the CMP sensor "O" ring for wear or damage. If a problem is found, replace the "O"ring.

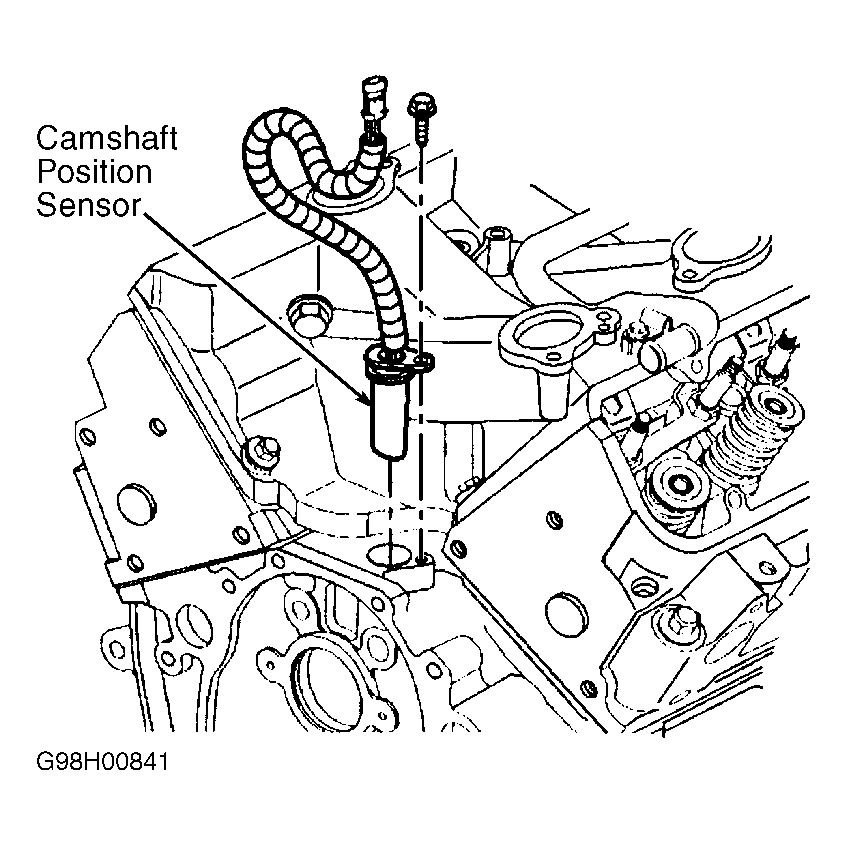

Lubricate the "O" ring with clean engine oil. Install the CMP sensor. Tighten the CMP sensor retaining bolt to specification. See TORQUE SPECIFICATIONS . Connect the CMP sensor electrical connector. Install the power steering pump to the vehicle.

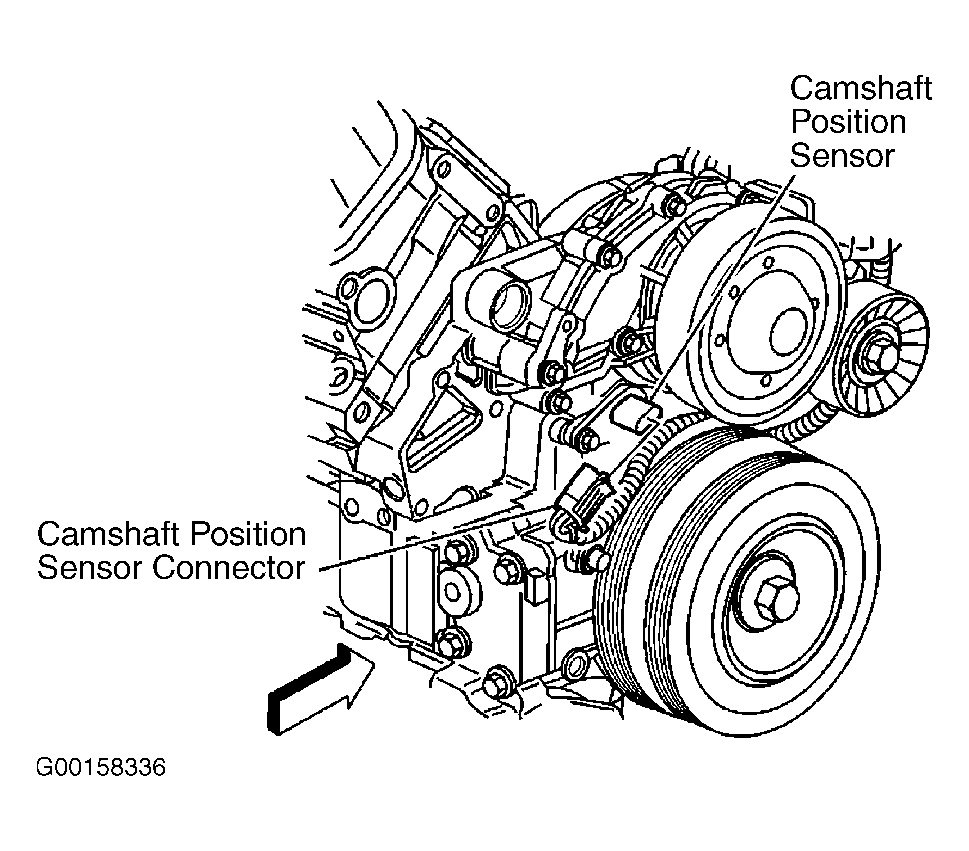

Install the CMP sensor to the engine front cover. Install the CMP sensor bolt. Tighten the bolt to specification. See TORQUE SPECIFICATIONS . Connect the electrical connector to the CMP sensor. Install the drive belt. Install the coolant recovery reservoir.
