Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Any carpet service repair or replacement should be the same thickness, size and location as the original installation in the vehicle or vehicle damage and personal injury could result.

Lay the rear carpet (2) into the vehicle.

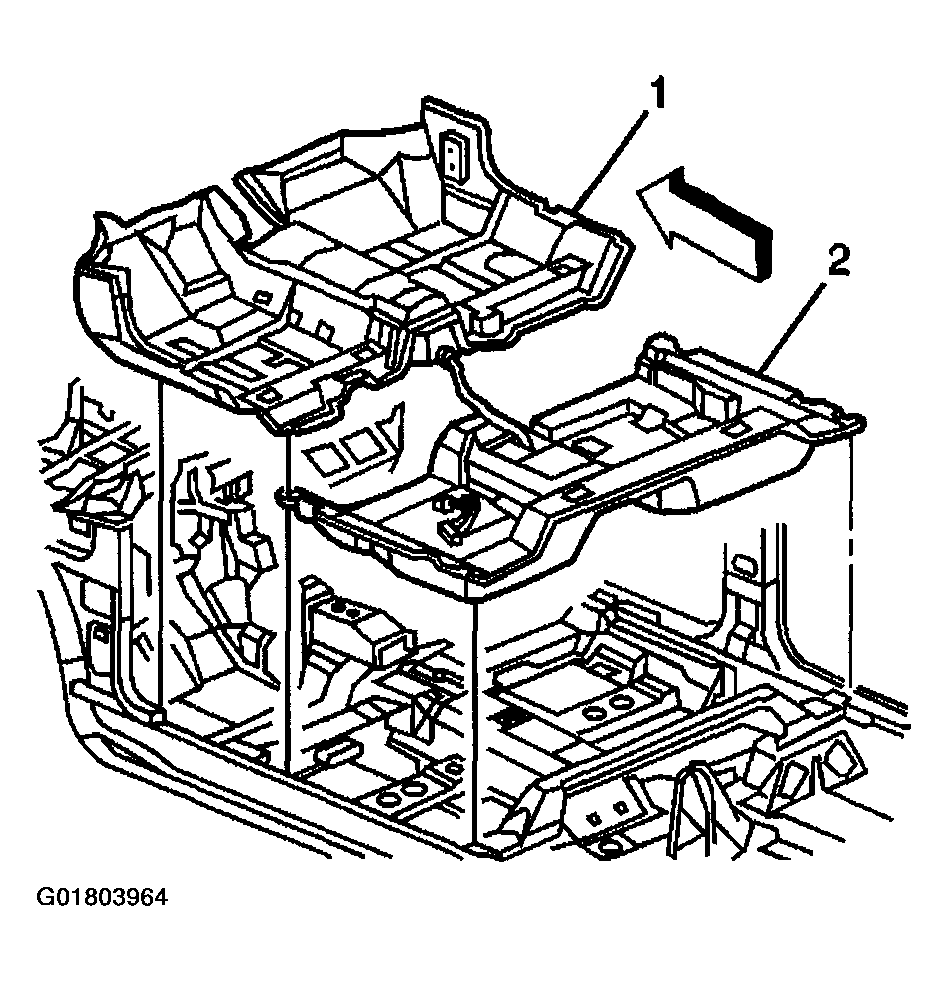

Fig 1: Installing Rear Carpet

Courtesy of GENERAL MOTORS CORP.

Install the rear carpet retainer. Refer to Carpet Retainer Replacement .
Install the center pillar garnish moldings. Refer to Garnish Molding Replacement - Center Pillar .
Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .
Install the center console, if equipped. Refer to CONSOLE REPLACEMENT -- FRONT FLOOR .
Install the front seats. Refer to SEAT REPLACEMENT -- BUCKET .
Enable the SIR system. Refer to ACTIVATING SYSTEM .
