Sunroof Limit Switch Assembly Connector End View
Sunroof Limit Switch Assembly Connector End View

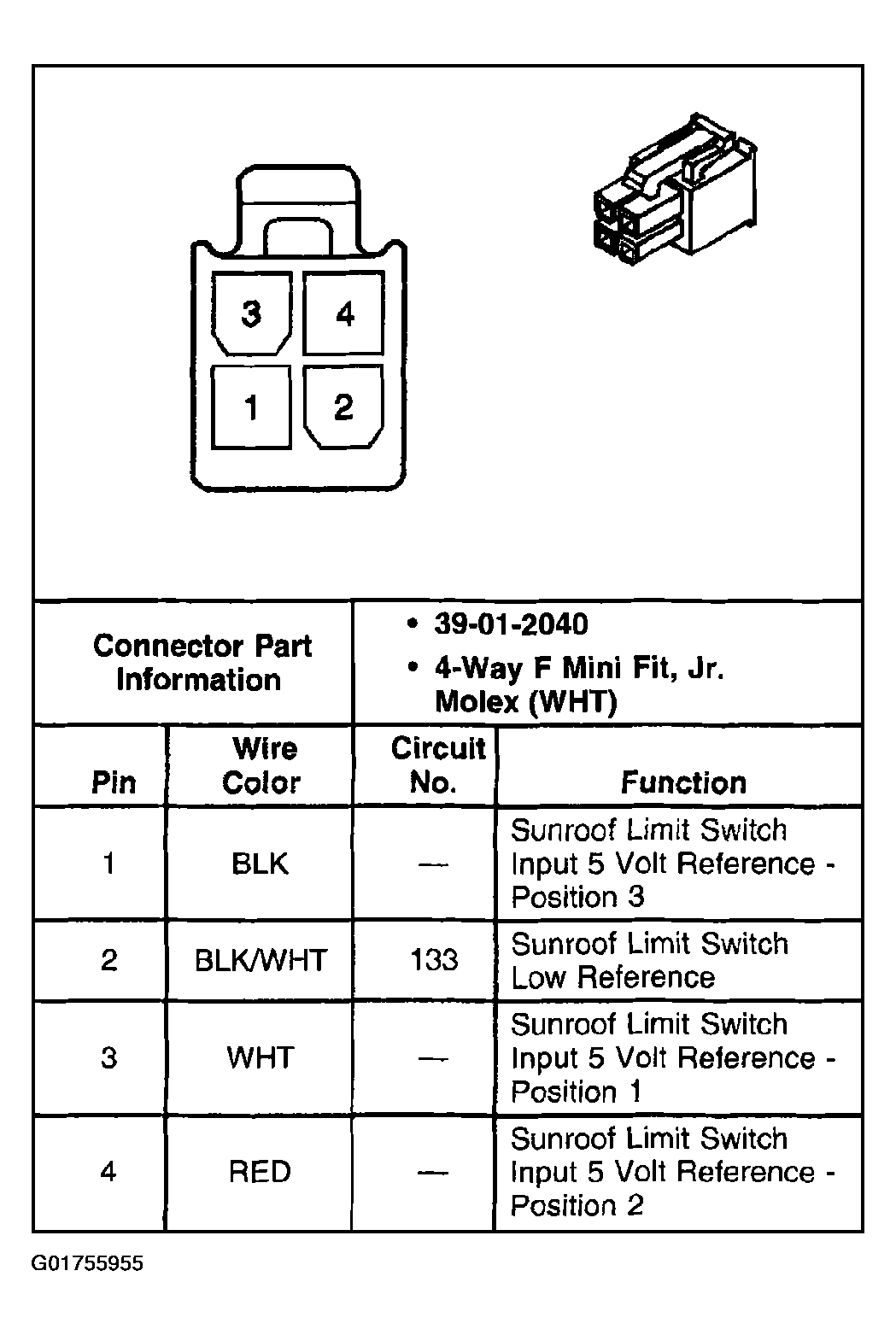

Fig 1: Sunroof Limit Switch Assembly
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
