Sunroof Module Connector End View (Express Open), C1

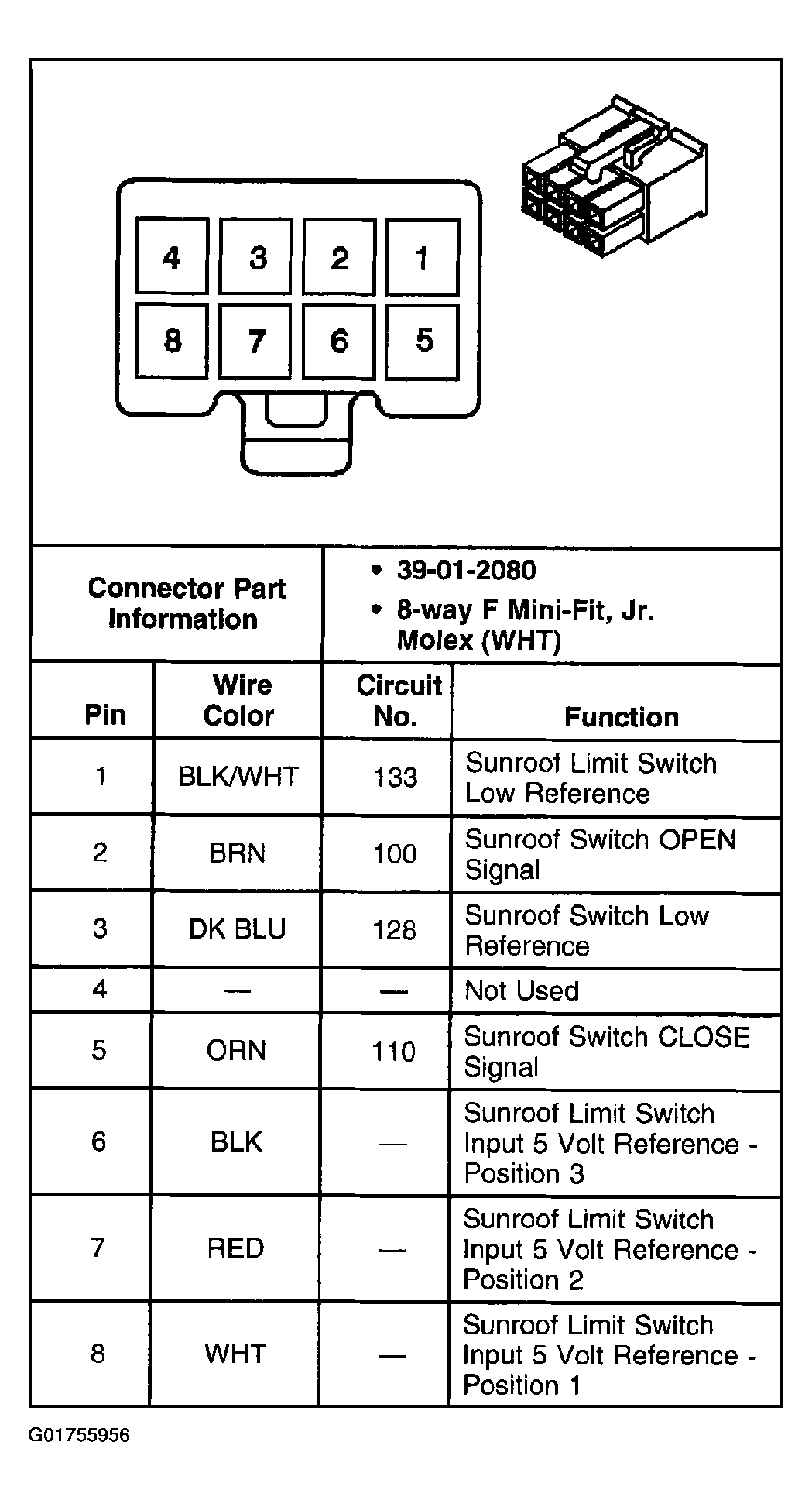

Fig 1: Sunroof Module (Express Open), C1
G01755956Courtesy of GENERAL MOTORS CORP.
