Heated Seat Control Module Connector End View - Driver

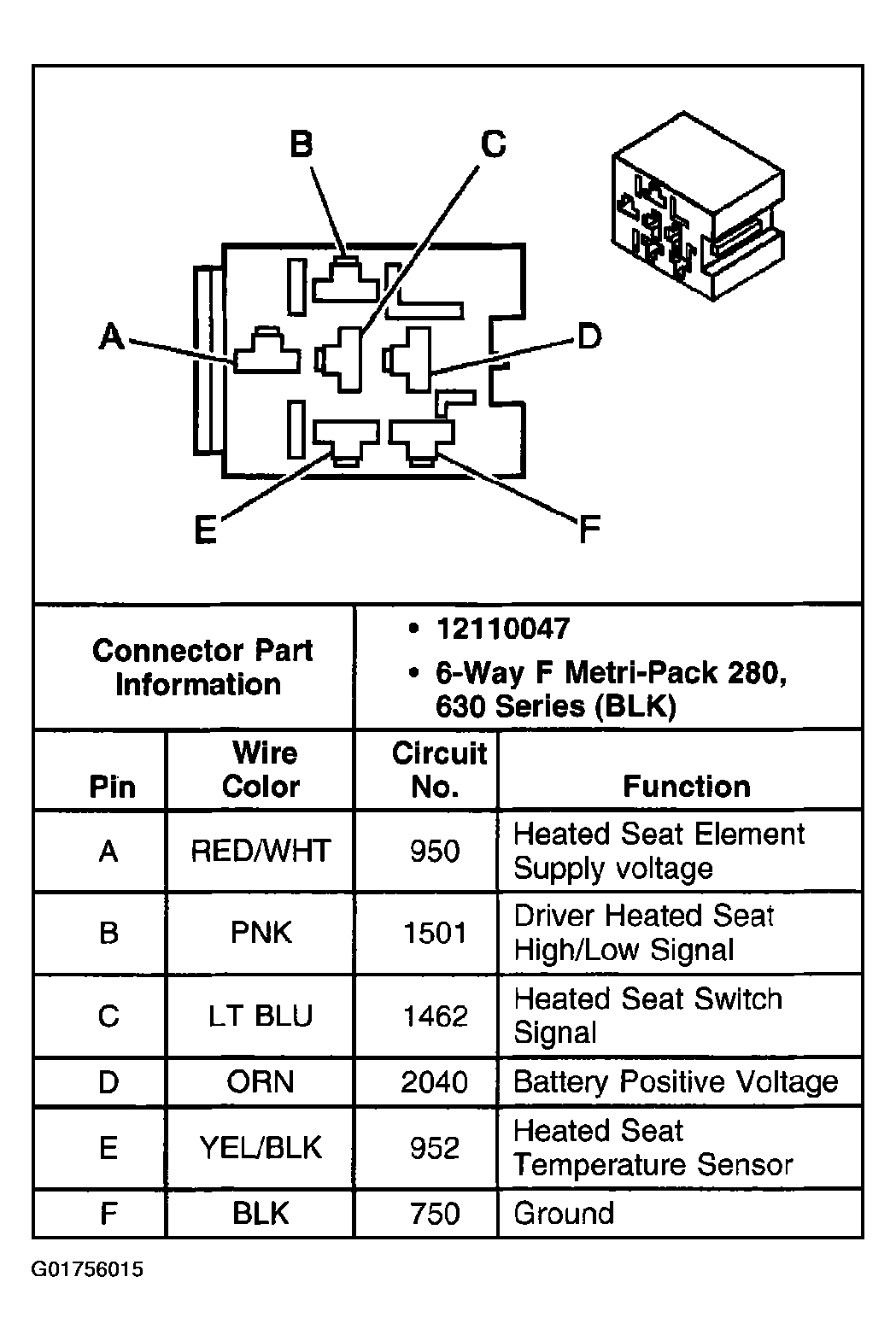

Fig 1: Heated Seat Control Module - Driver
G01756015Courtesy of GENERAL MOTORS CORP.
