Steering Controls Connector End Views
›
Magnasteer Actuator Connector End View
Magnasteer Actuator Connector End View

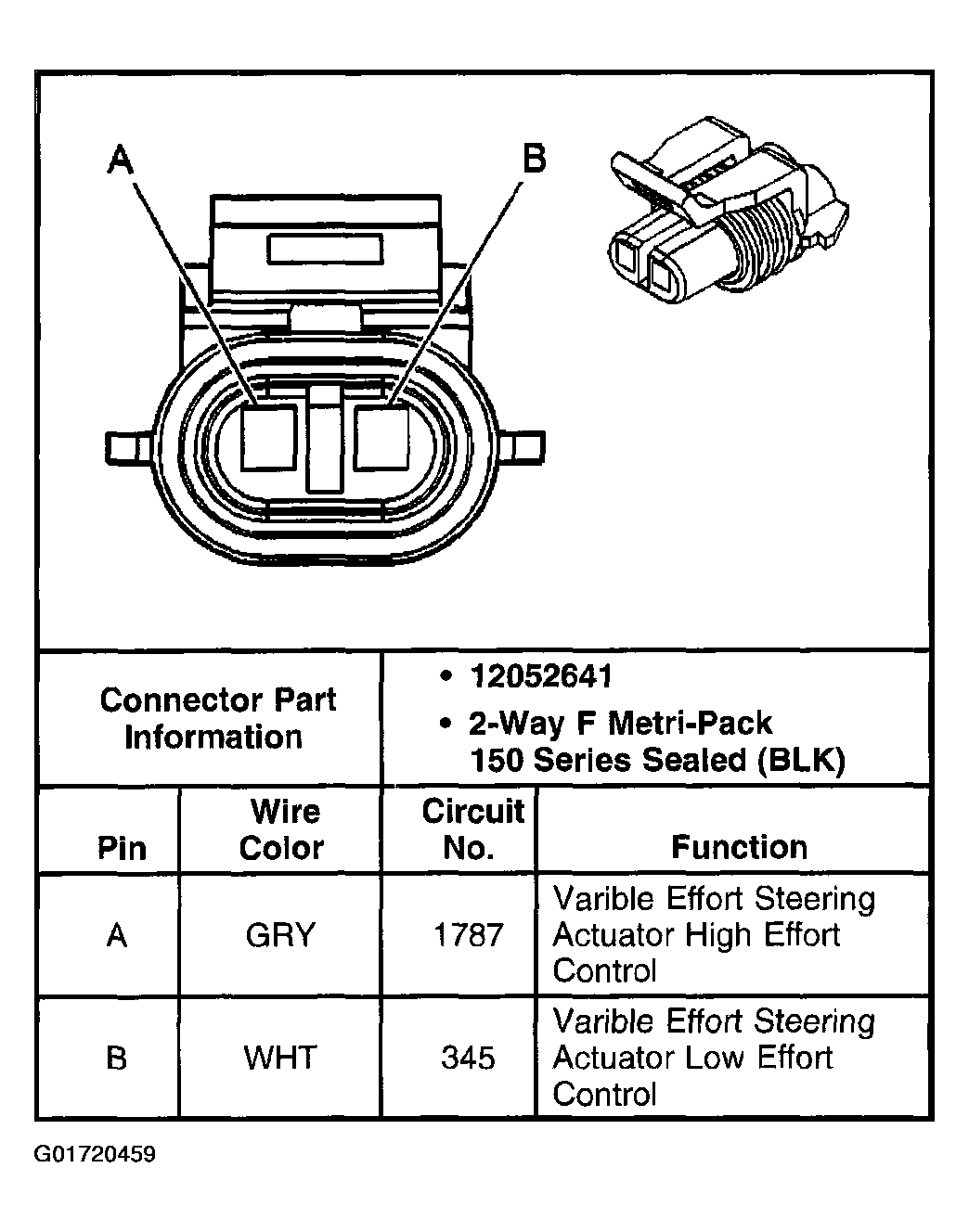

Fig 1: Magnasteer Actuator
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
