Installation Procedure

  1. Push back the rear seat back.
  2. Align the rear shoulder belt guide to the lower rear quarter trim panel.

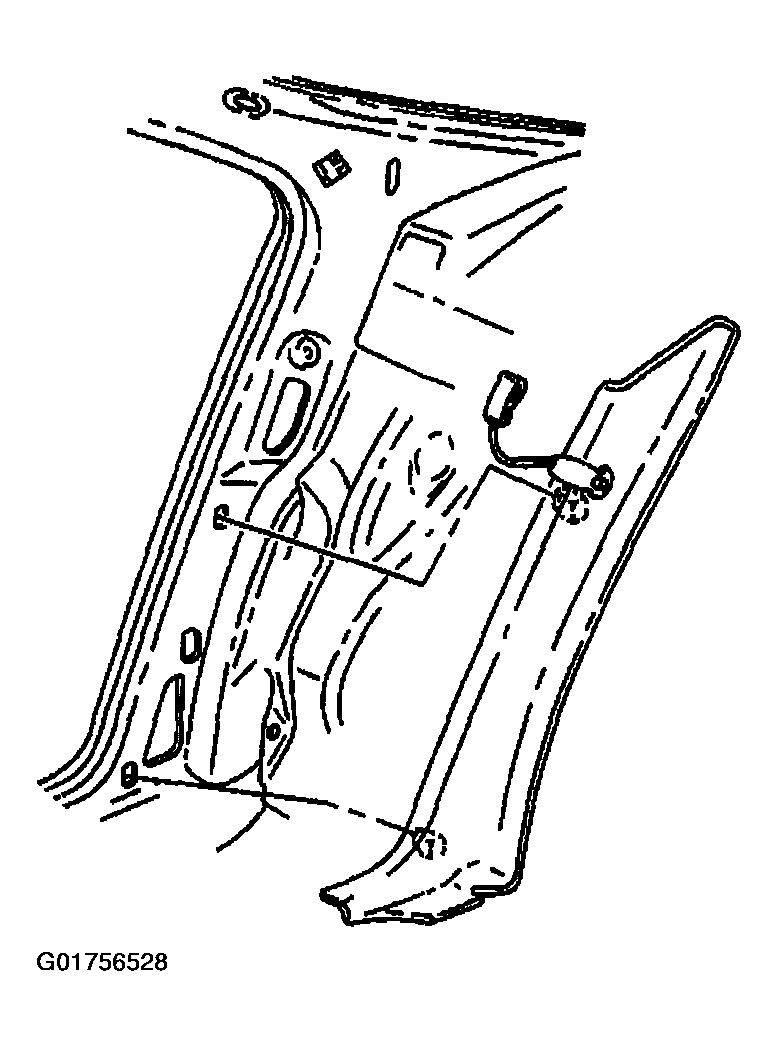

    3. Fig 1: Identifying Rear Child Shoulder Belt Guide Rerouter
    G01756528Courtesy of GENERAL MOTORS CORP.
  3. Install the push-pin retainer to the rear shoulder belt guide.
