Removal Procedure

  1. Open the seat belt guide loop cover.
  2. Remove the guide loop nut.
  3. Remove the guide loop from the guide adjuster bracket.
  4. Remove the center pillar upper trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR .
  5. Remove the shoulder belt guide adjuster bracket bolts.

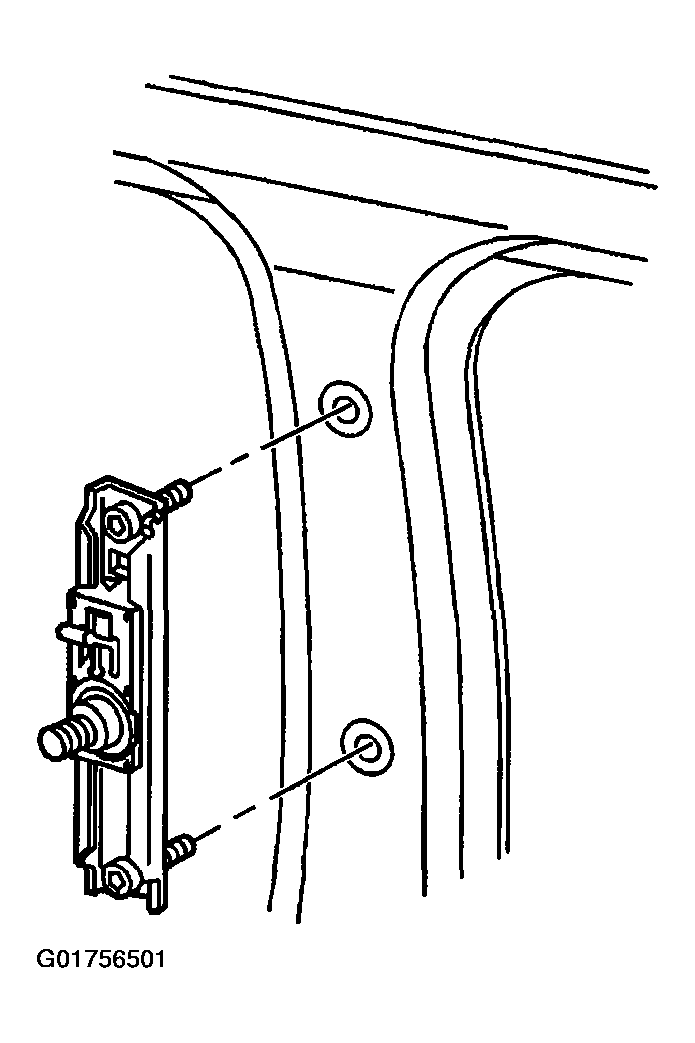

    6. Fig 1: Identifying Front Shoulder Belt Guide Adjuster
    G01756501Courtesy of GENERAL MOTORS CORP.
  6. Remove the shoulder belt guide adjuster bracket from the center pillar.
