Power Steering Gear Disassembled View (Magnasteer)

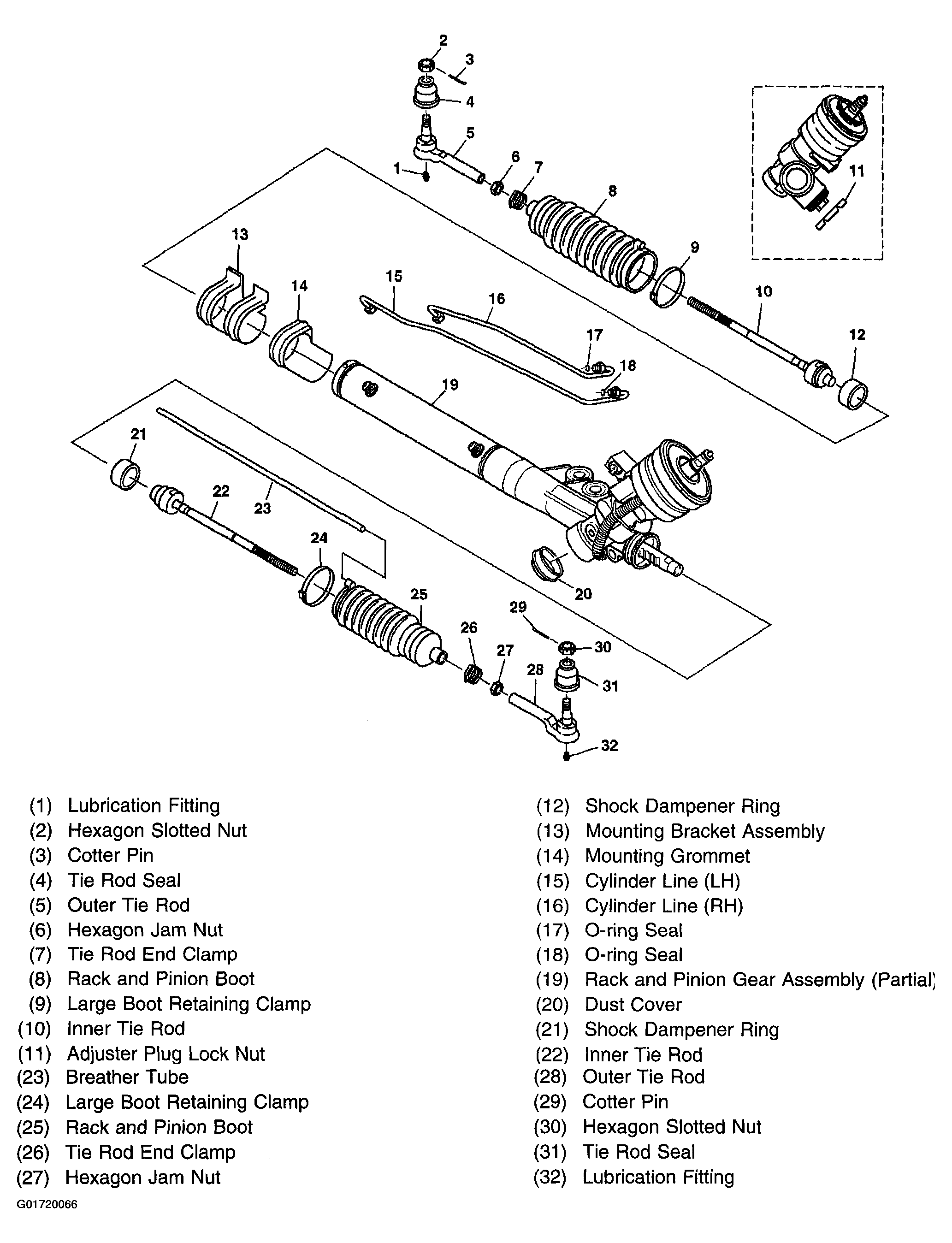

Fig 1: Magnasteer Power Steering Gear Component Locations
G01720066Courtesy of GENERAL MOTORS CORP.
