Removal Procedure

  1. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
  2. Slide the sound barrier out from under the upper quarter panel trim.
  3. Pull the sound barrier forward to access the tether bolts.
  4. Remove the child seat tether bracket to rear shelf bolts.

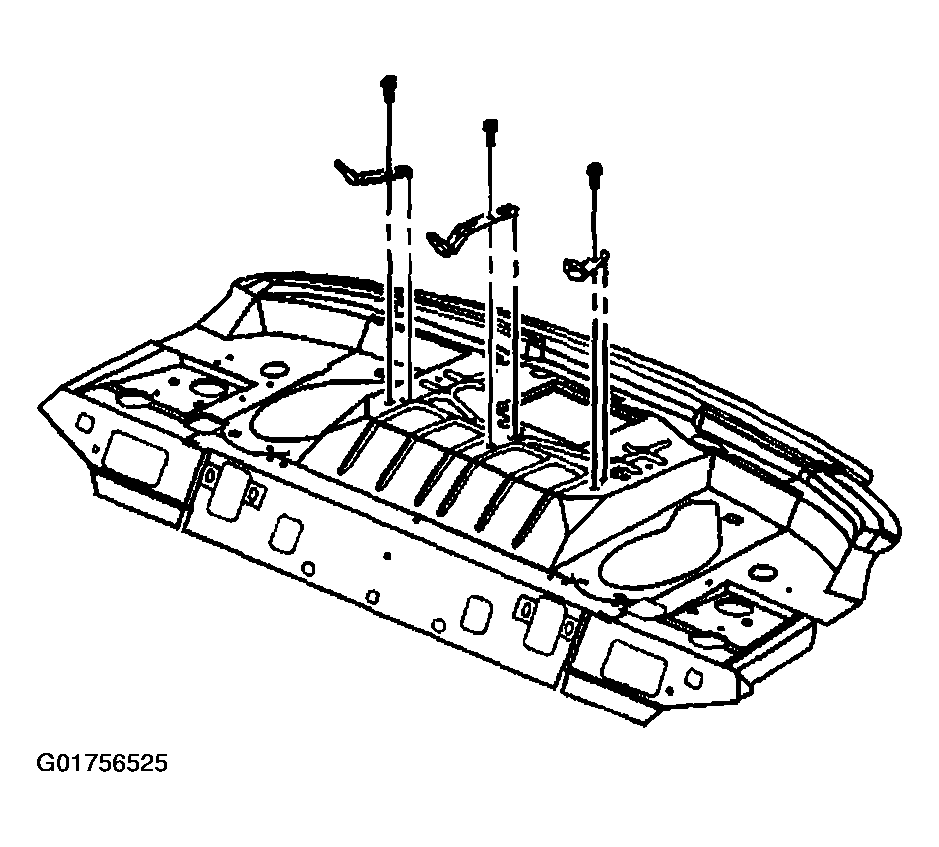

    5. Fig 1: Identifying Child Restraint Tether Anchors
    G01756525Courtesy of GENERAL MOTORS CORP.
  5. Remove the child seat tether brackets from the rear shelf.
