Component Locator
›
Keyless Entry Component Views
Keyless Entry Component Views

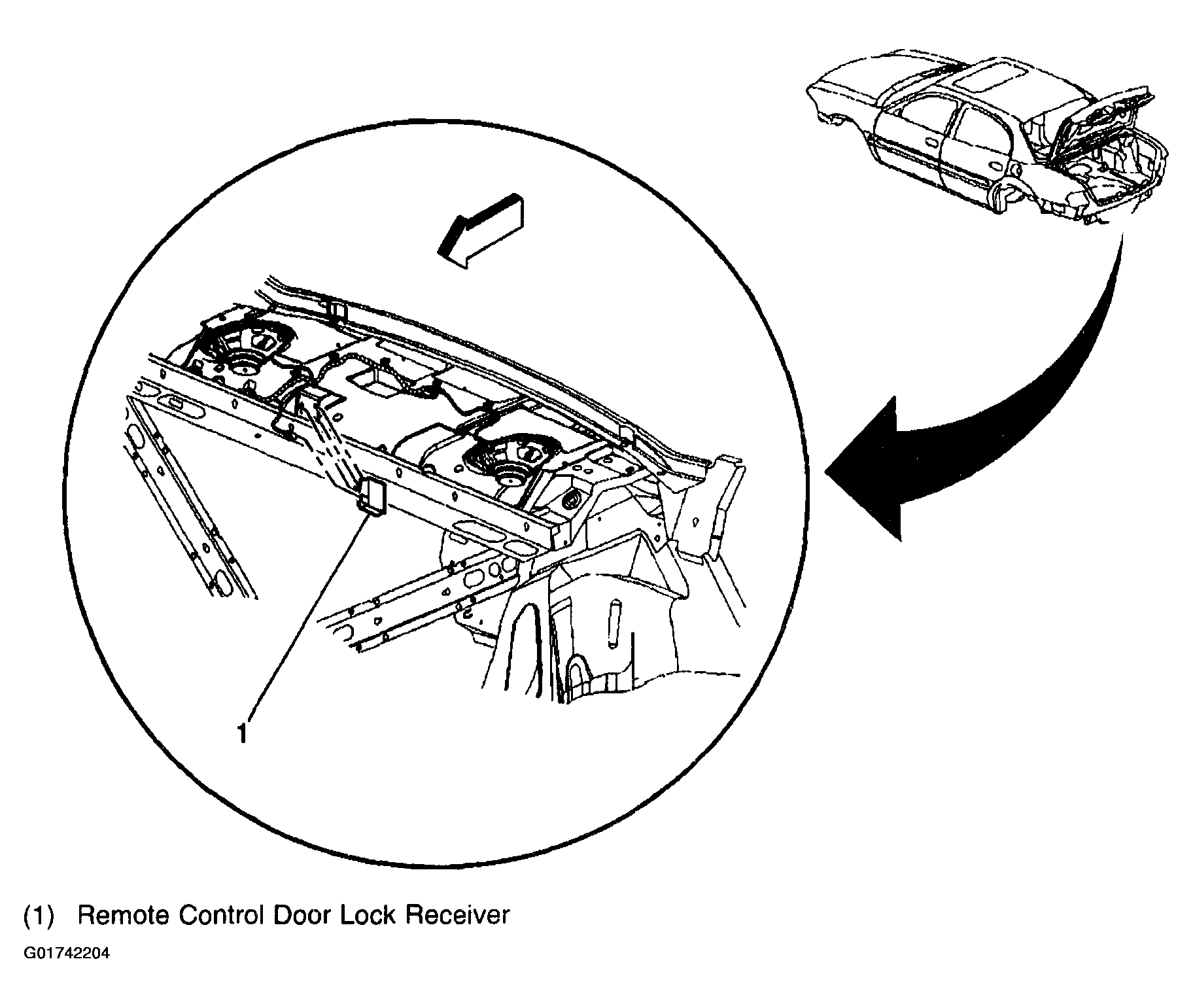

Fig 1: Keyless Entry Component Views (Below Rear Shelf)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
