Installation Procedure

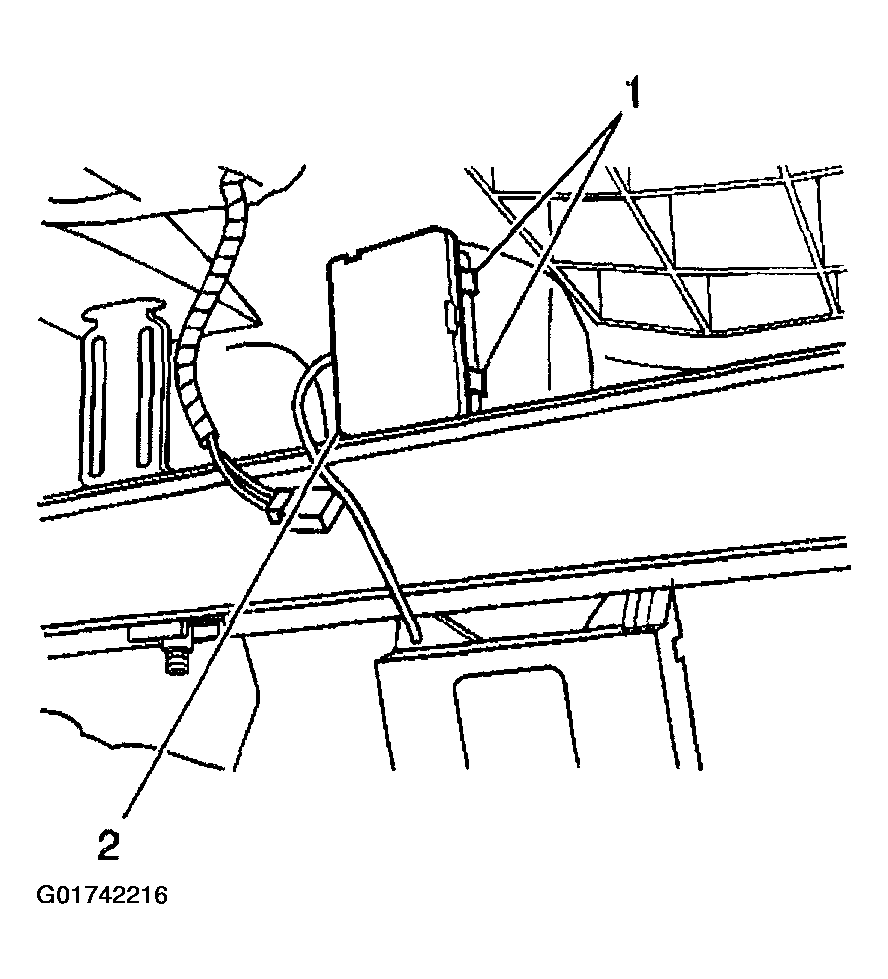

  1. Snap the remote control door lock receiver module (2) into the slots in the rear compartment. See Figure .
  2. Connect the electrical connector.

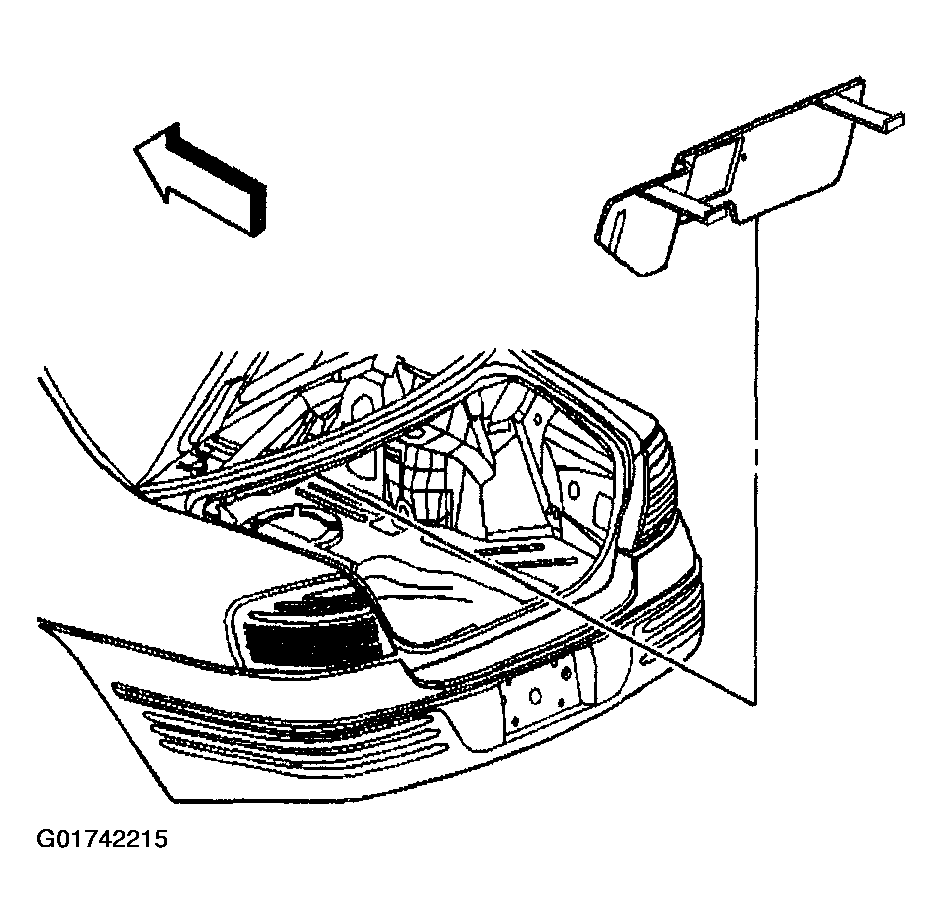

  3. Install the rear compartment trim. See Figure . Refer to COMPARTMENT TRIM PANEL REPLACEMENT-REAR in Body Rear End.
  4. Program the remote control door lock receiver module. Refer to TRANSMITTER PROGRAMMING  .
