Power Seat Systems Component Views

Fig 1: Left Front Seat Back

Courtesy of GENERAL MOTORS CORP.

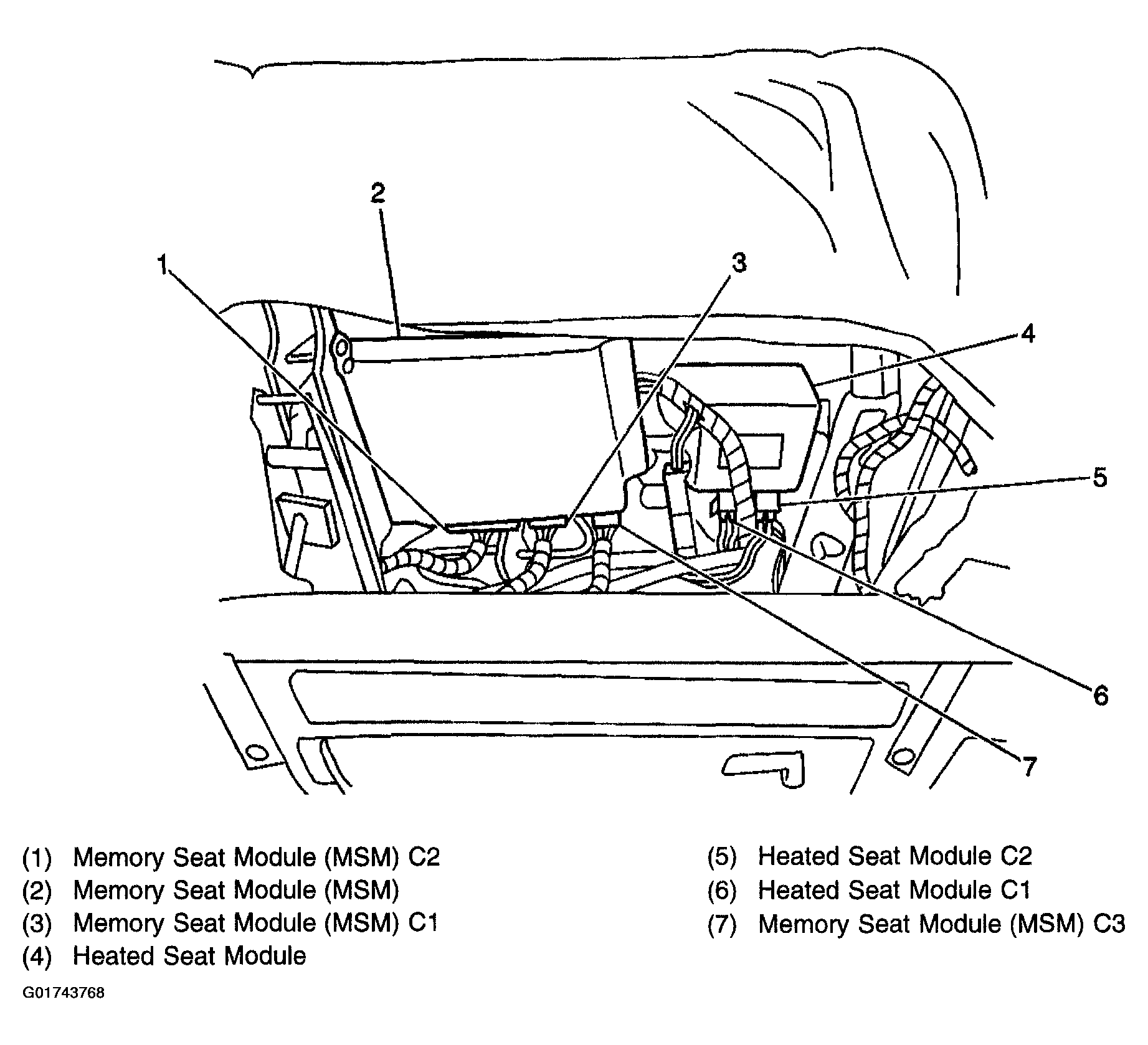

Fig 2: MSM & Heated Seat Module

Courtesy of GENERAL MOTORS CORP.

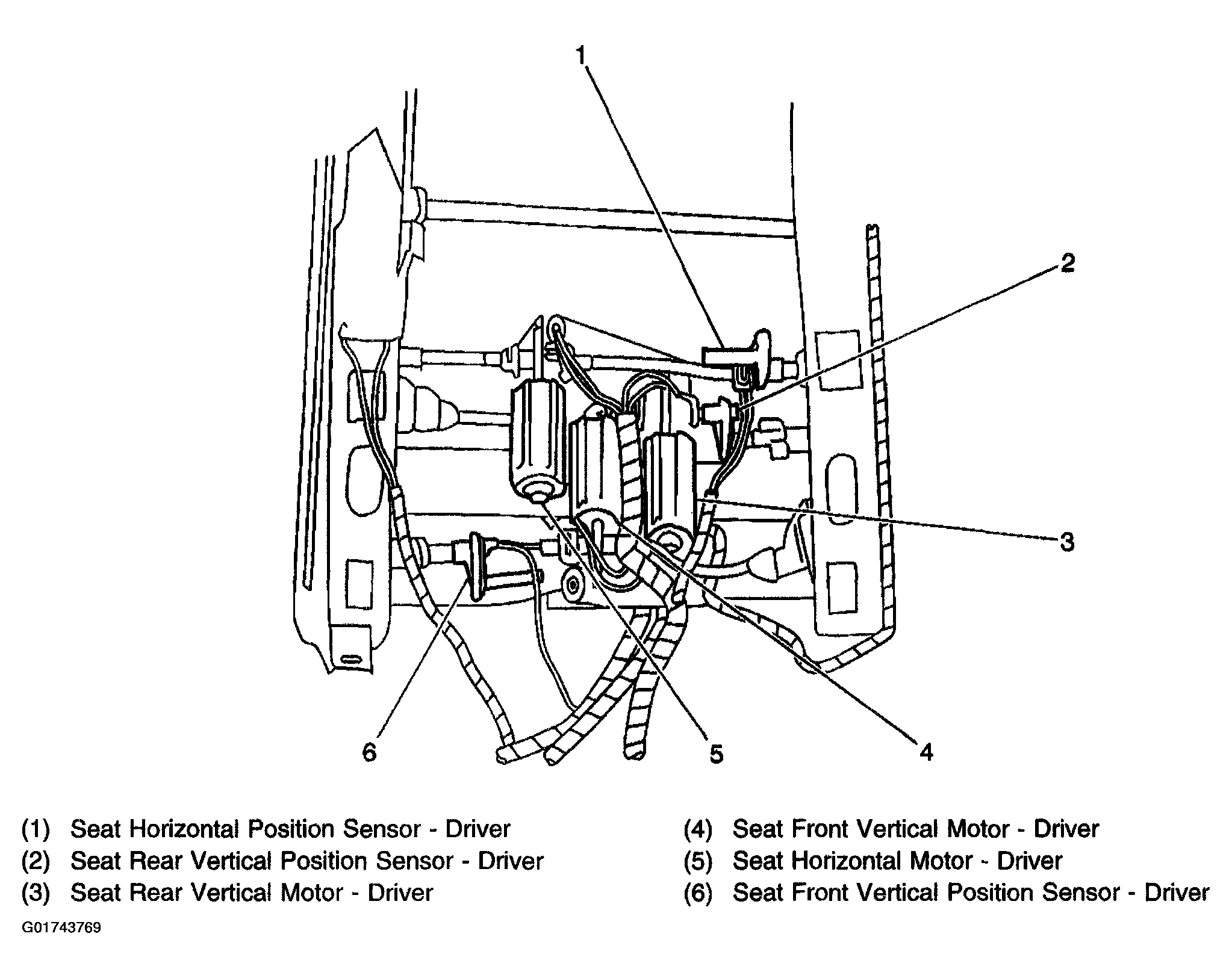

Fig 3: Left Front Seat Horizontal & Vertical Motors & Sensors

Courtesy of GENERAL MOTORS CORP.

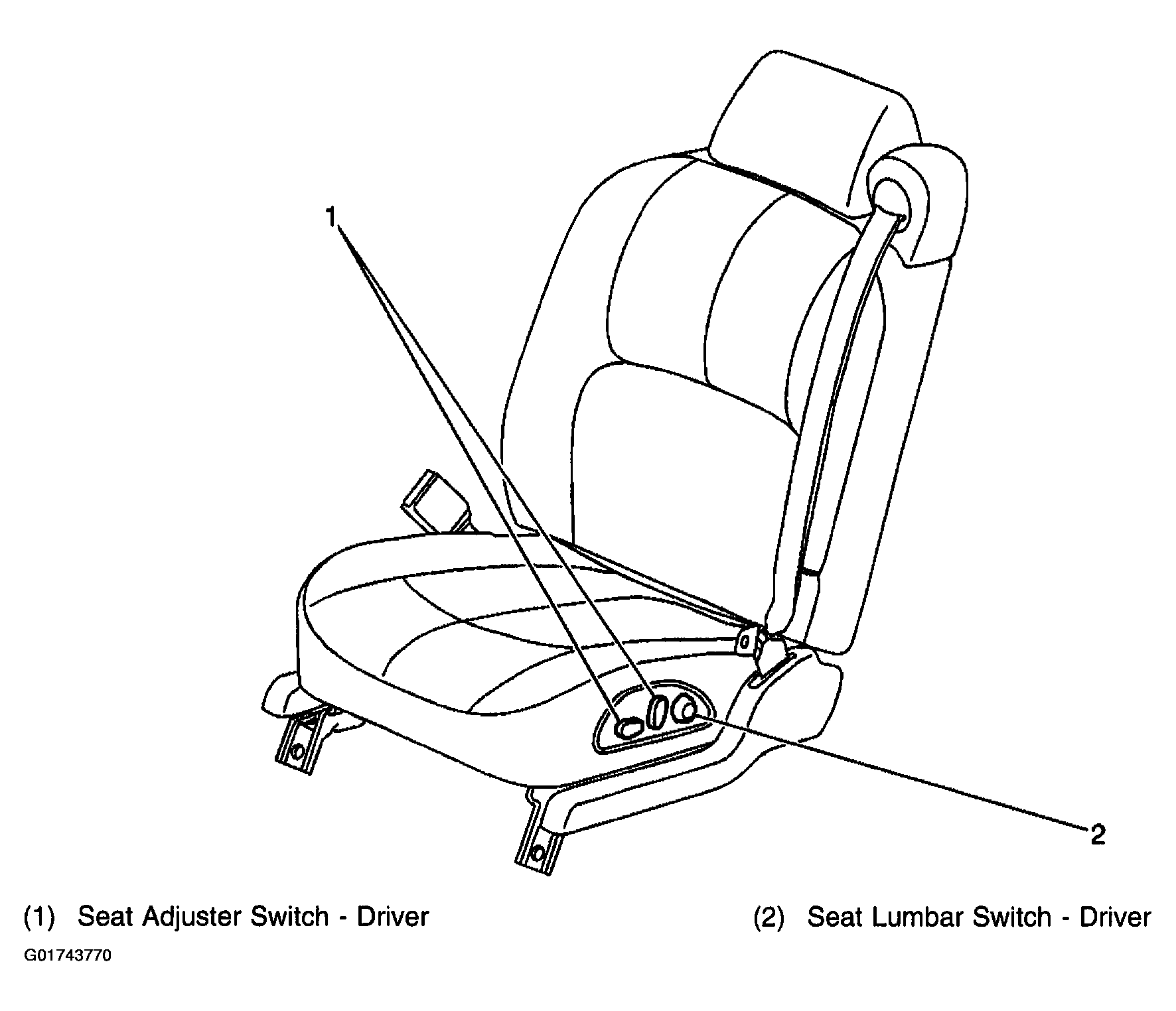

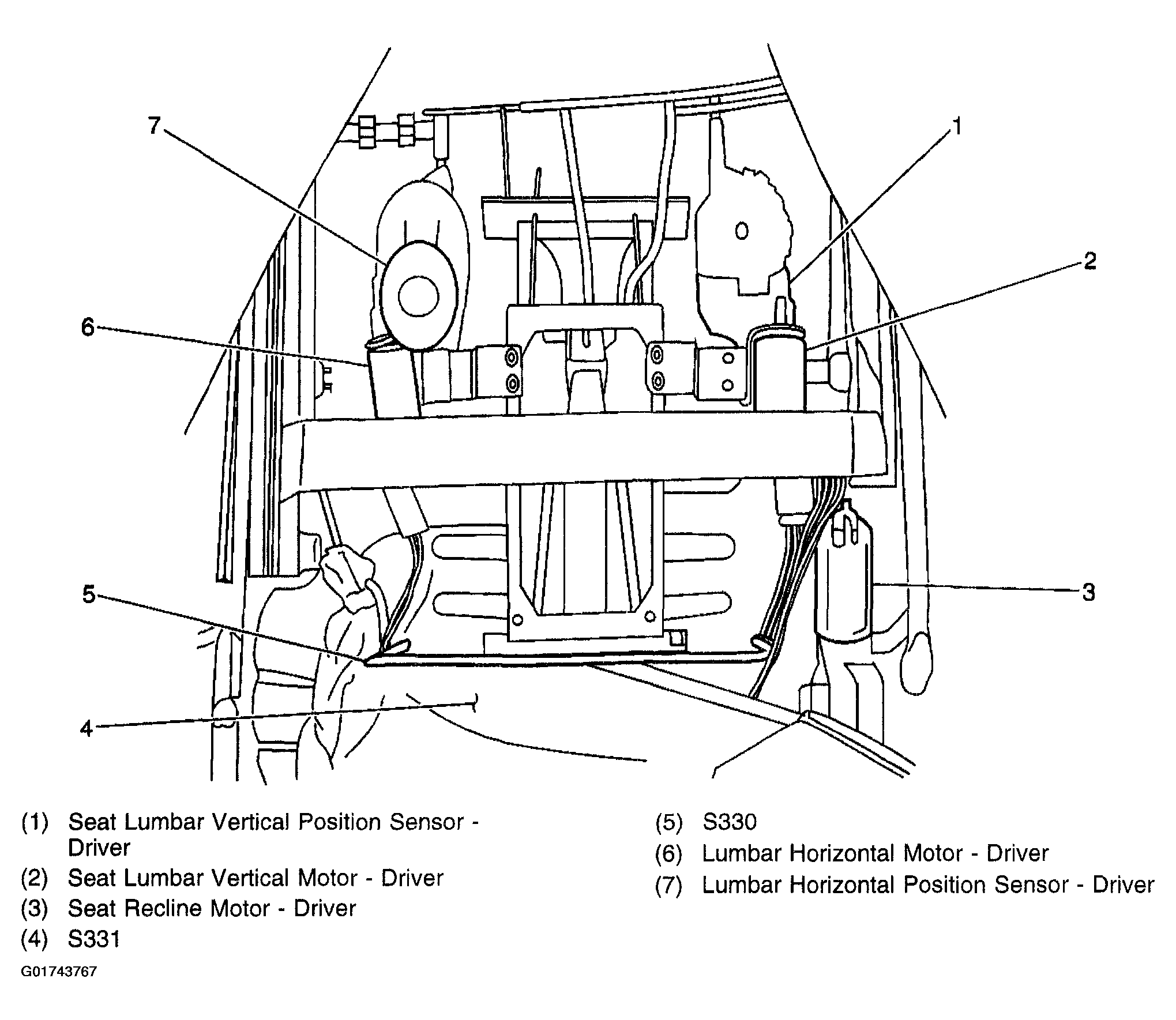

Fig 4: Left Lumbar & Seat Switch

Courtesy of GENERAL MOTORS CORP.

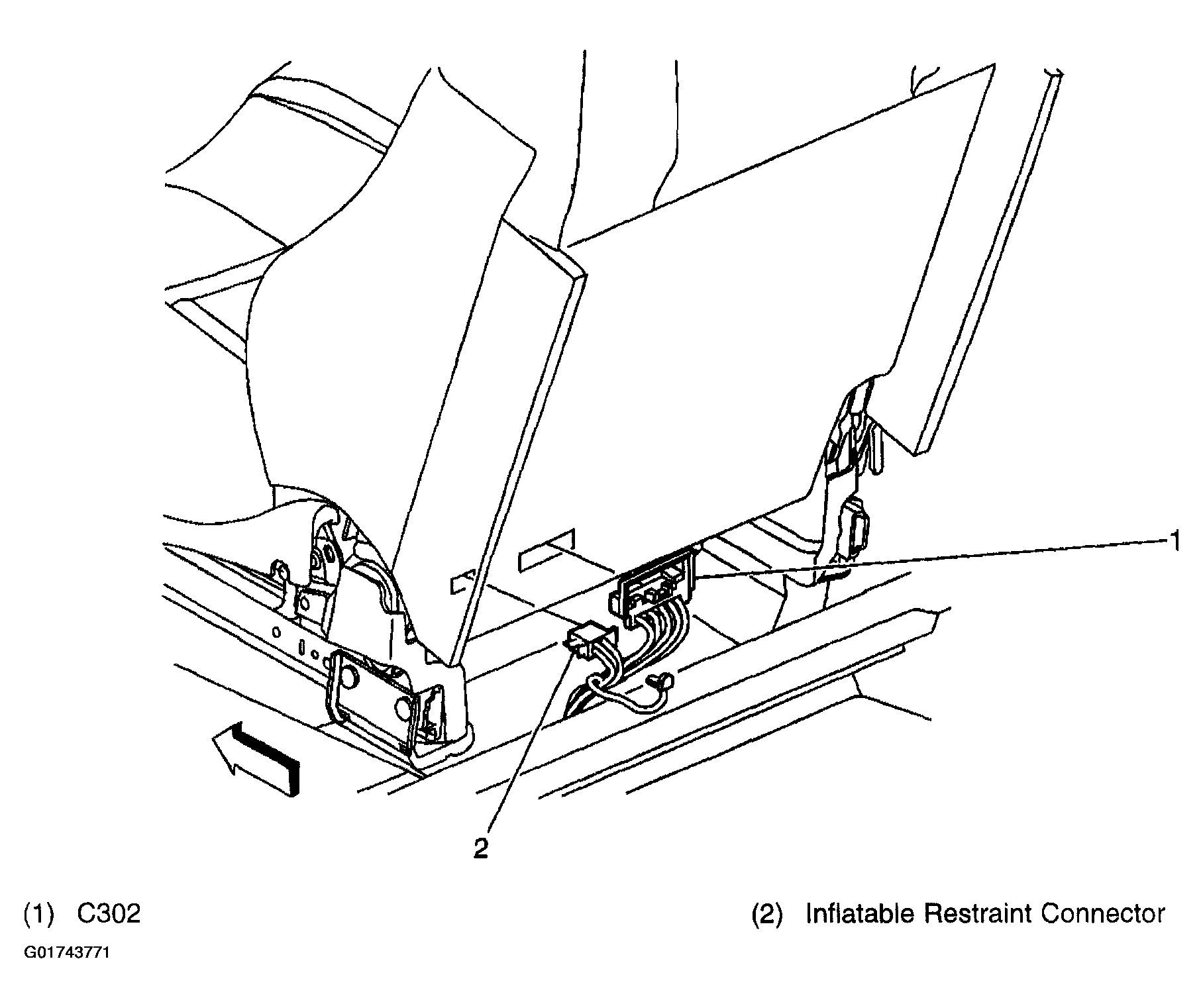

Fig 5: LH Seat Connectors

Courtesy of GENERAL MOTORS CORP.
