Scan Tool Output Controls

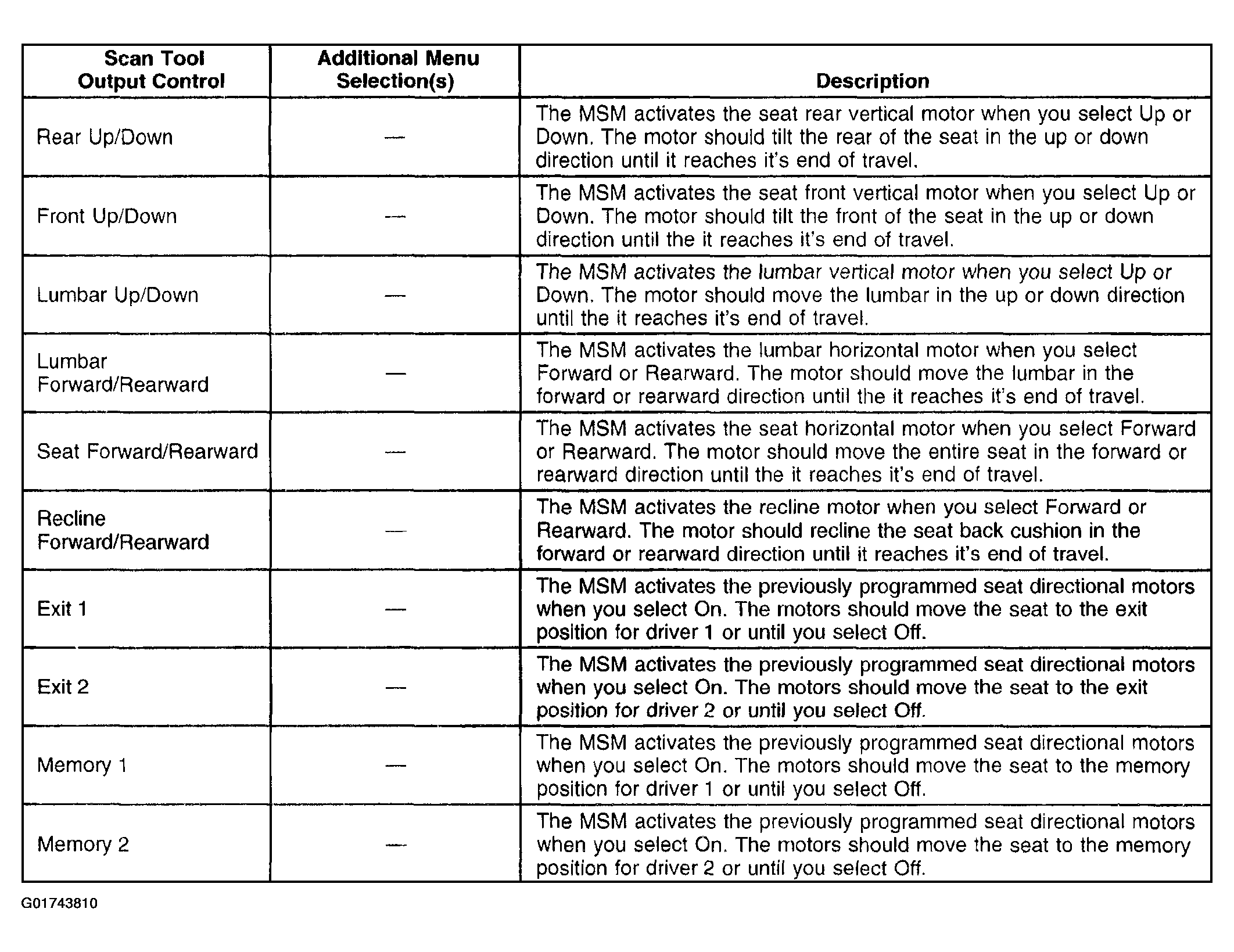

Fig 1: Memory Seat Module (MSM)
G01743810Courtesy of GENERAL MOTORS CORP.

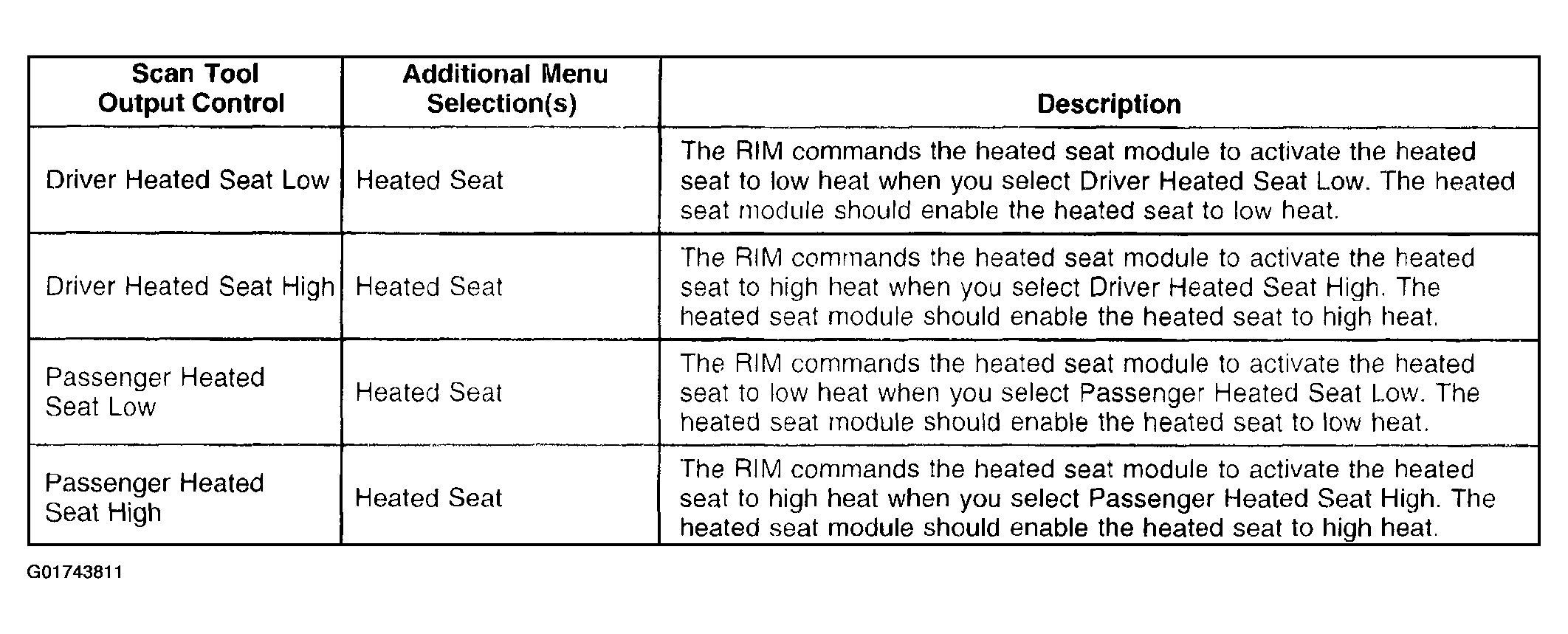

Fig 2: Rear Integration Module (RIM)
G01743811Courtesy of GENERAL MOTORS CORP.
