Removal Procedure

Disable the SIR system. Refer to DISABLING SYSTEM in SIR.
Remove the fasteners securing the seat cushion to the adjuster track. Refer to SEAT CUSHION REPLACEMENT - FRONT .
Lift the front of the seat cushion up in order to gain access to the heated seat module (1).

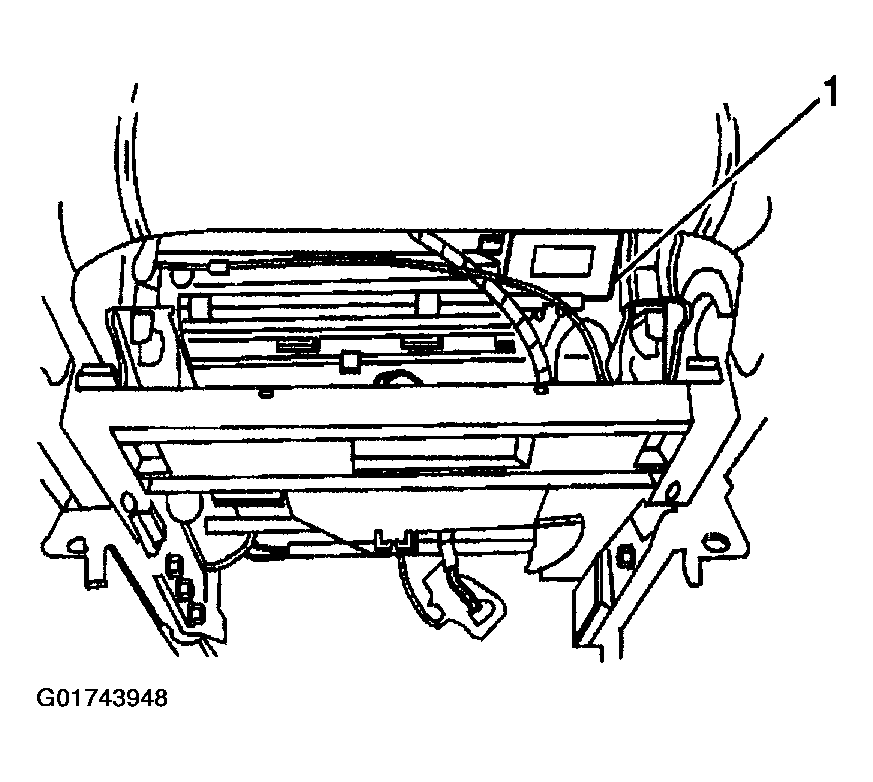

Fig 1: Gaining Access To Heated Seat Module
Courtesy of GENERAL MOTORS CORP.

CAUTION: Note the correct routing of the electrical wiring. Failure to reinstall the wiring properly could result in damage to the wiring.
Disconnect the electrical connectors (3) from the heated seat module.

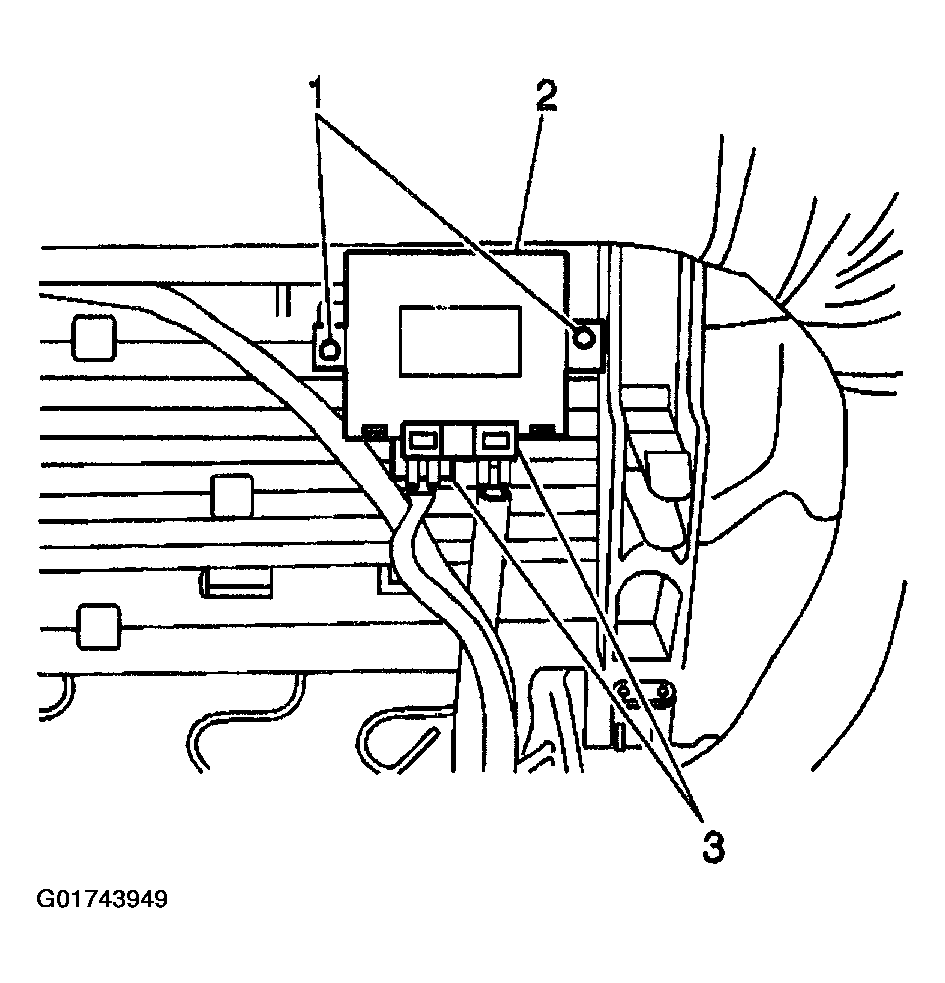

Fig 2: Disconnecting Heated Seat Module Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Remove the fasteners (1) securing the heated seat module to the bottom of the seat cushion.
Remove the heated seat module (2) from the bottom of the seat cushion.
