Power Door Systems Component Views

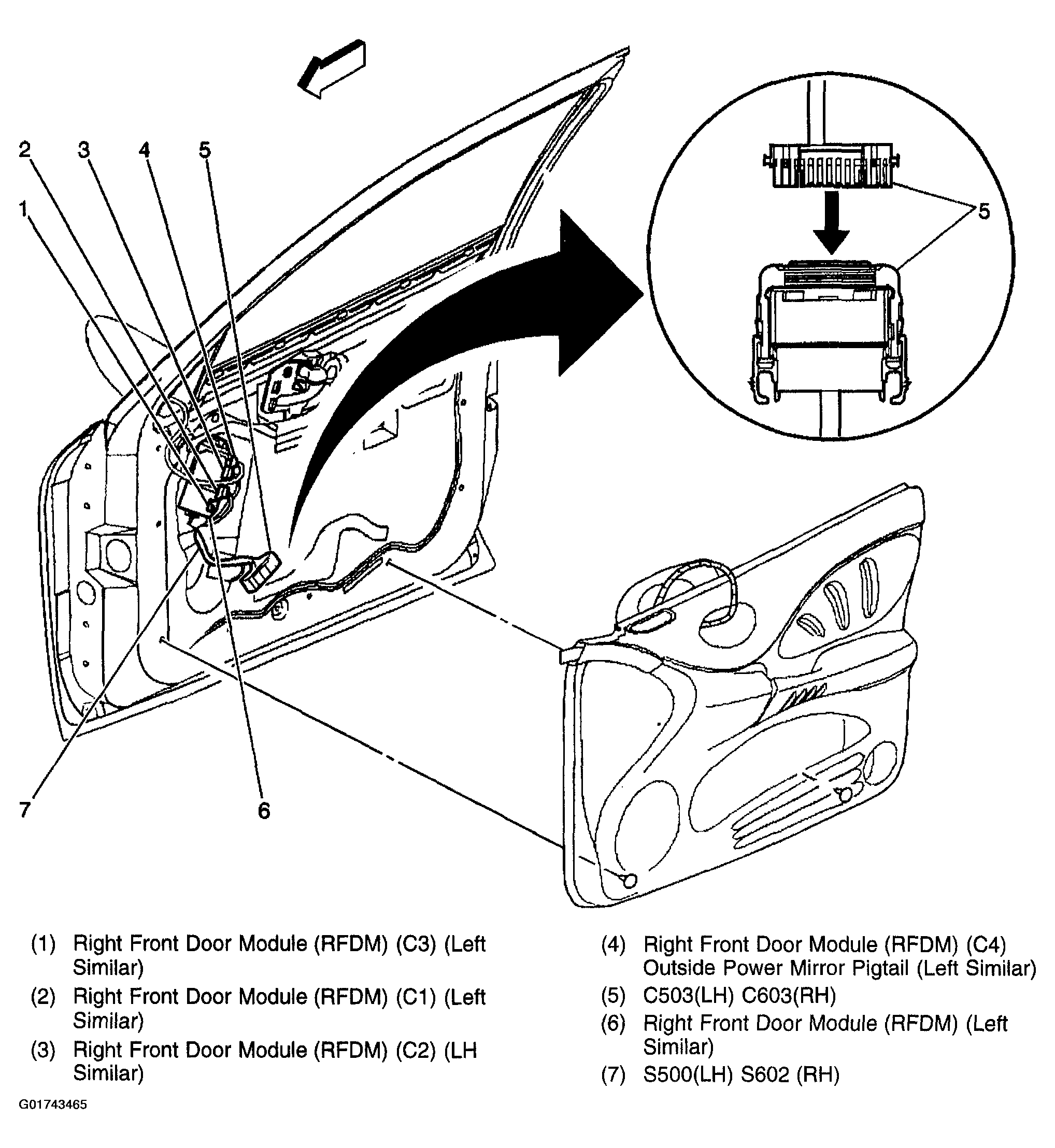

Fig 1: Right Front Door Module

Courtesy of GENERAL MOTORS CORP.

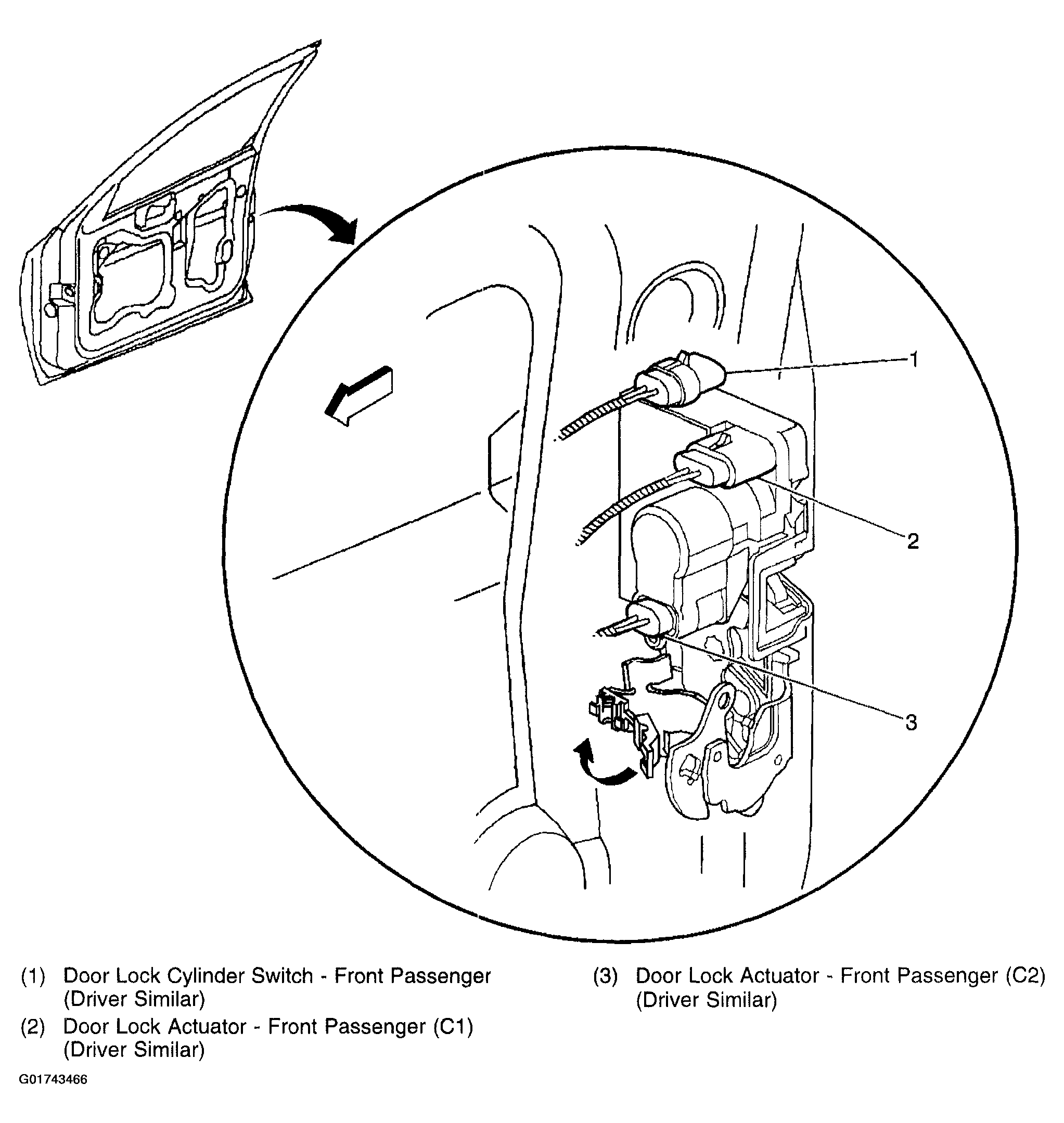

Fig 2: Right Front Door Latch Assembly

Courtesy of GENERAL MOTORS CORP.

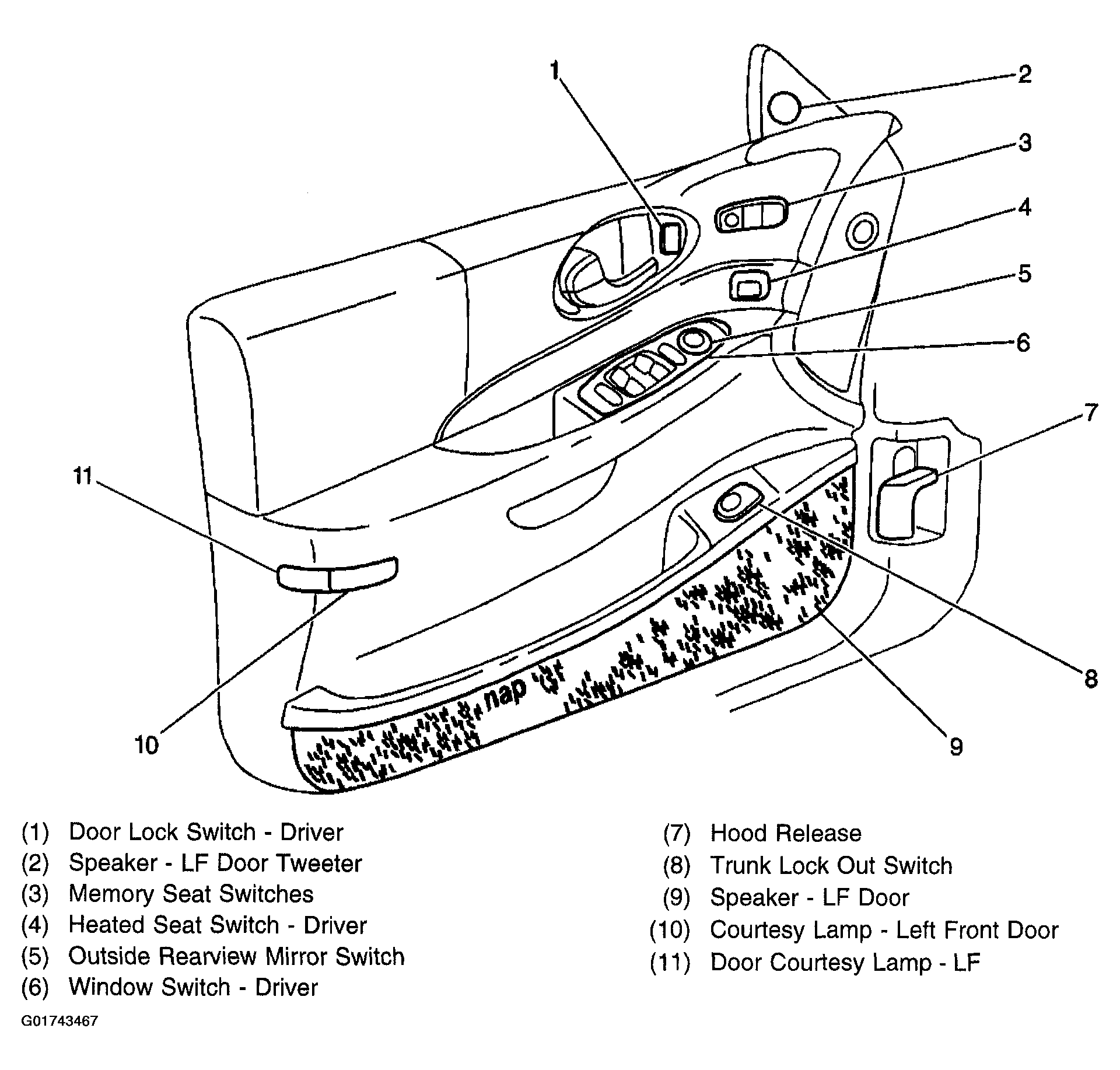

Fig 3: Left Front Door Trim Panel

Courtesy of GENERAL MOTORS CORP.

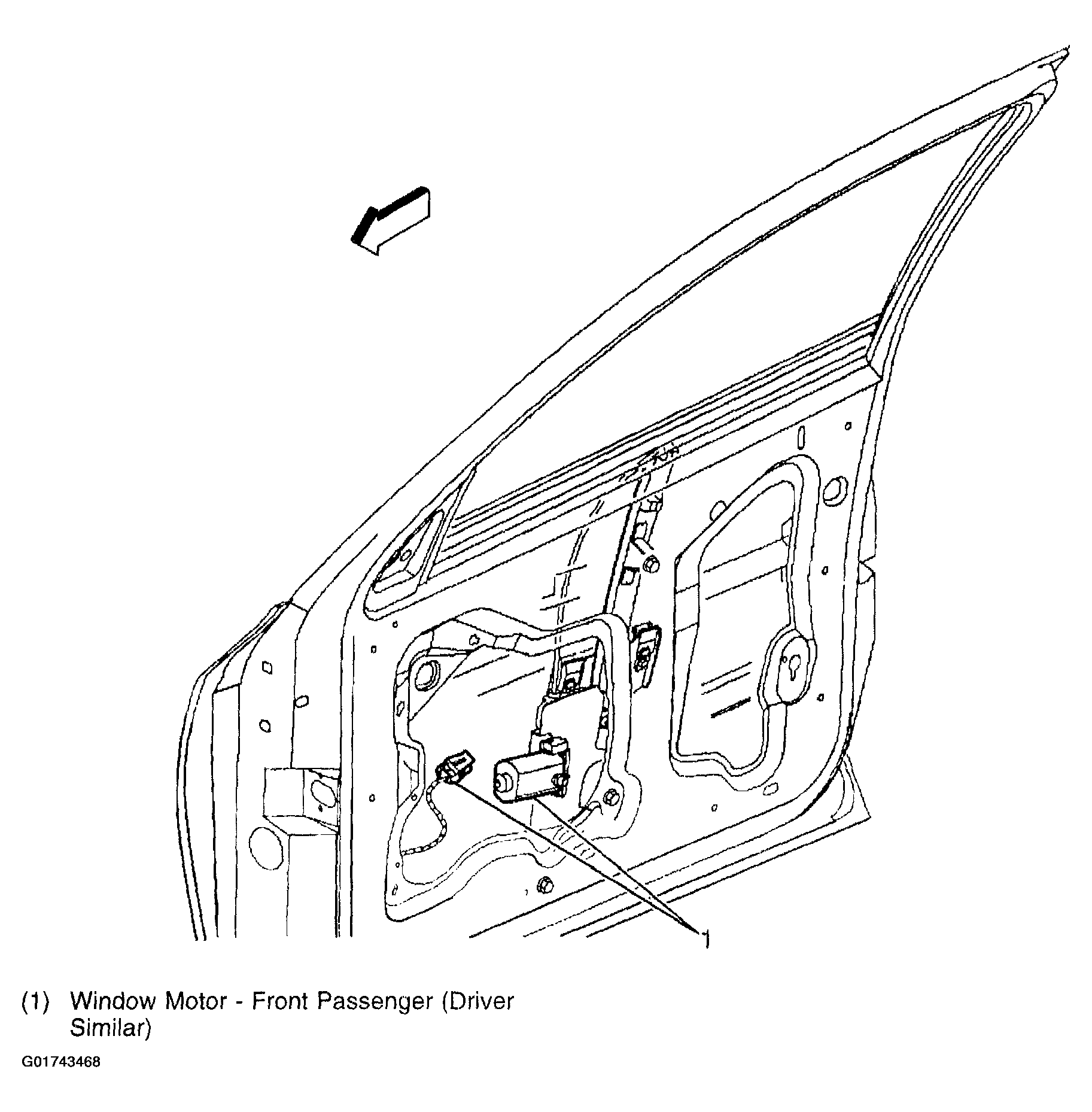

Fig 4: Right Front Door Window Motor

Courtesy of GENERAL MOTORS CORP.

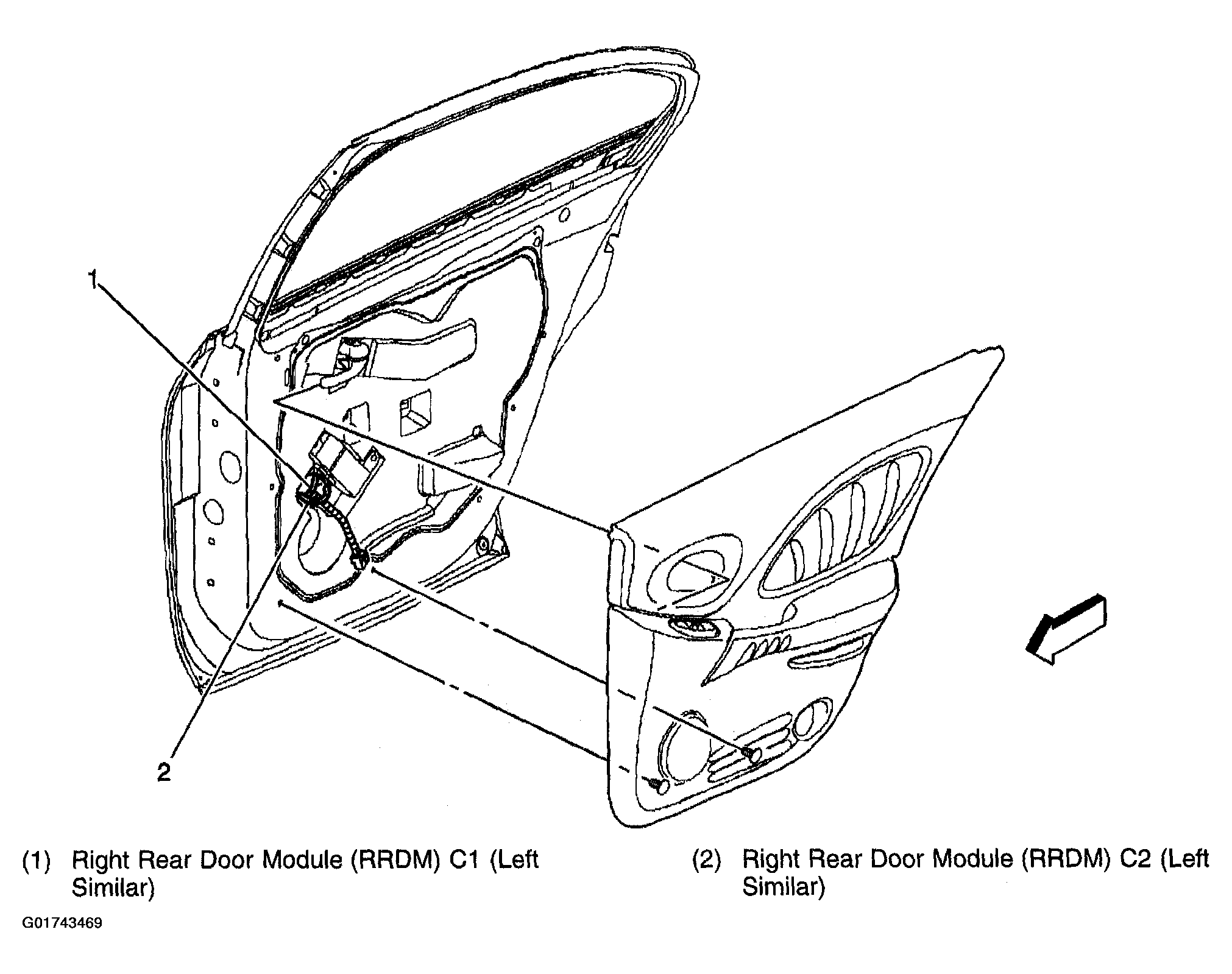

Fig 5: Right Rear Door Module (RRDM)

Courtesy of GENERAL MOTORS CORP.

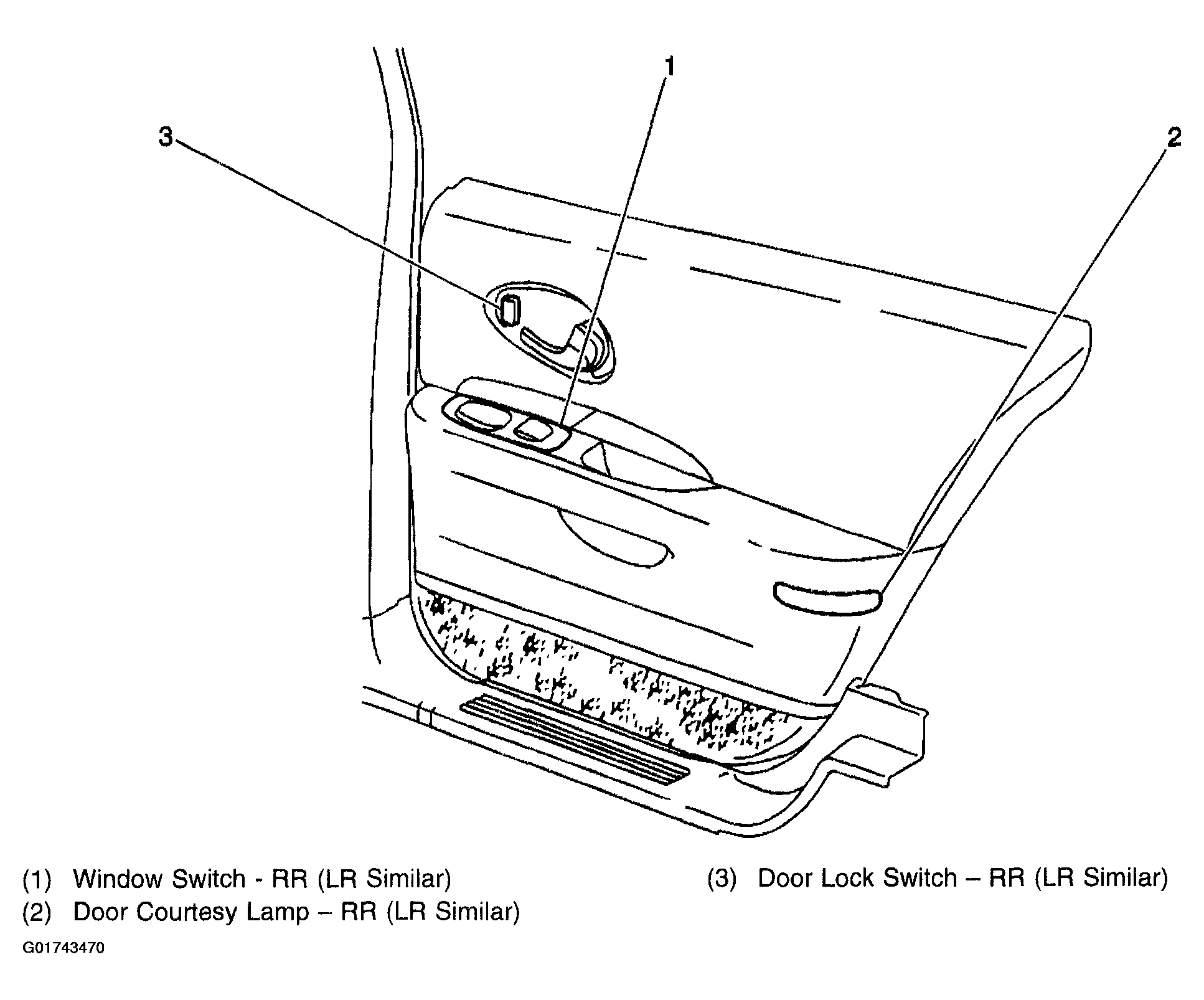

Fig 6: Right Rear Door Trim Panel

Courtesy of GENERAL MOTORS CORP.

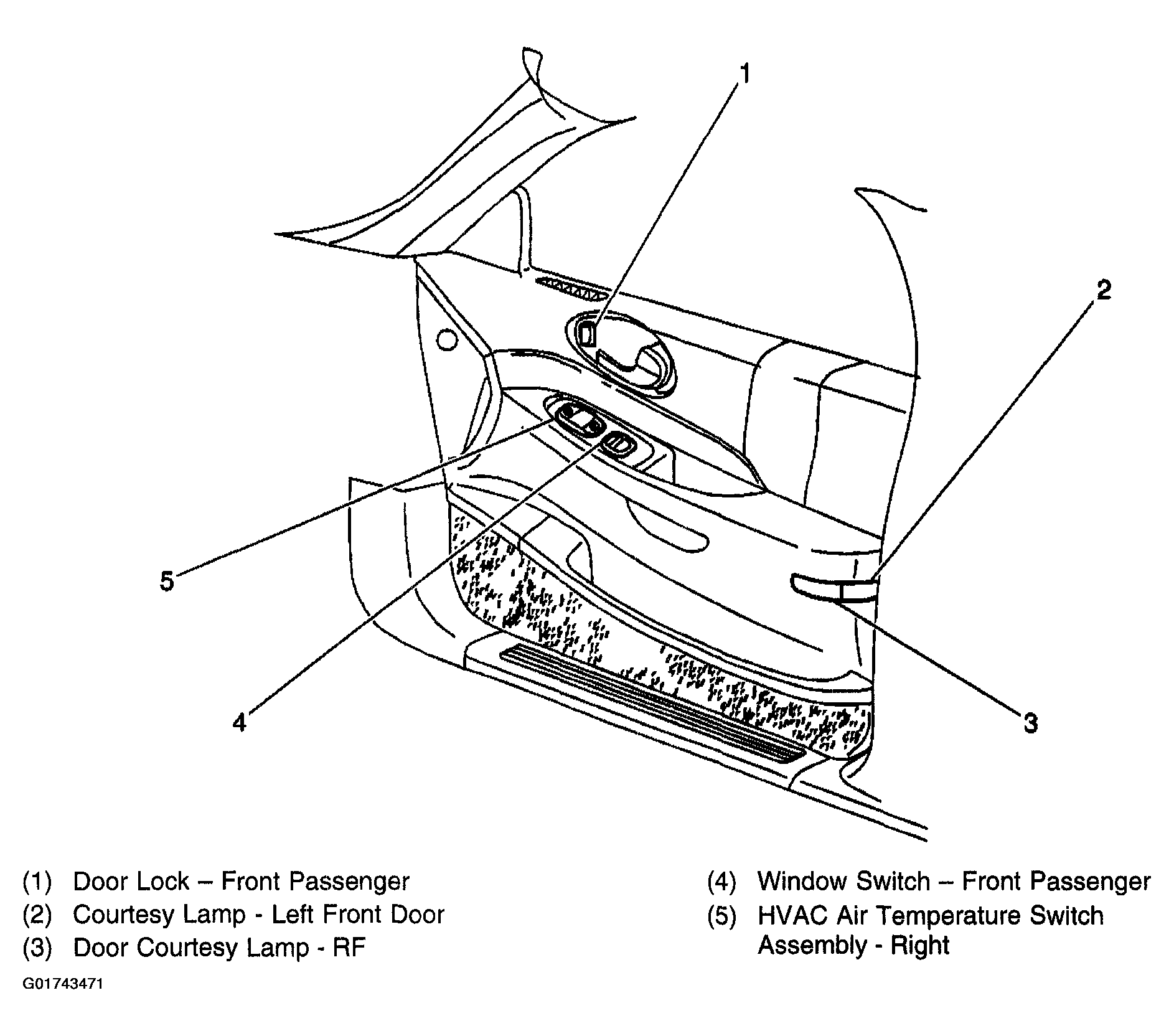

Fig 7: Right Front Door Trim Panel

Courtesy of GENERAL MOTORS CORP.
