Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  2. Disconnect the electrical connectors.
  3. Remove the door control module fasteners.
  4. Remove the door control module.

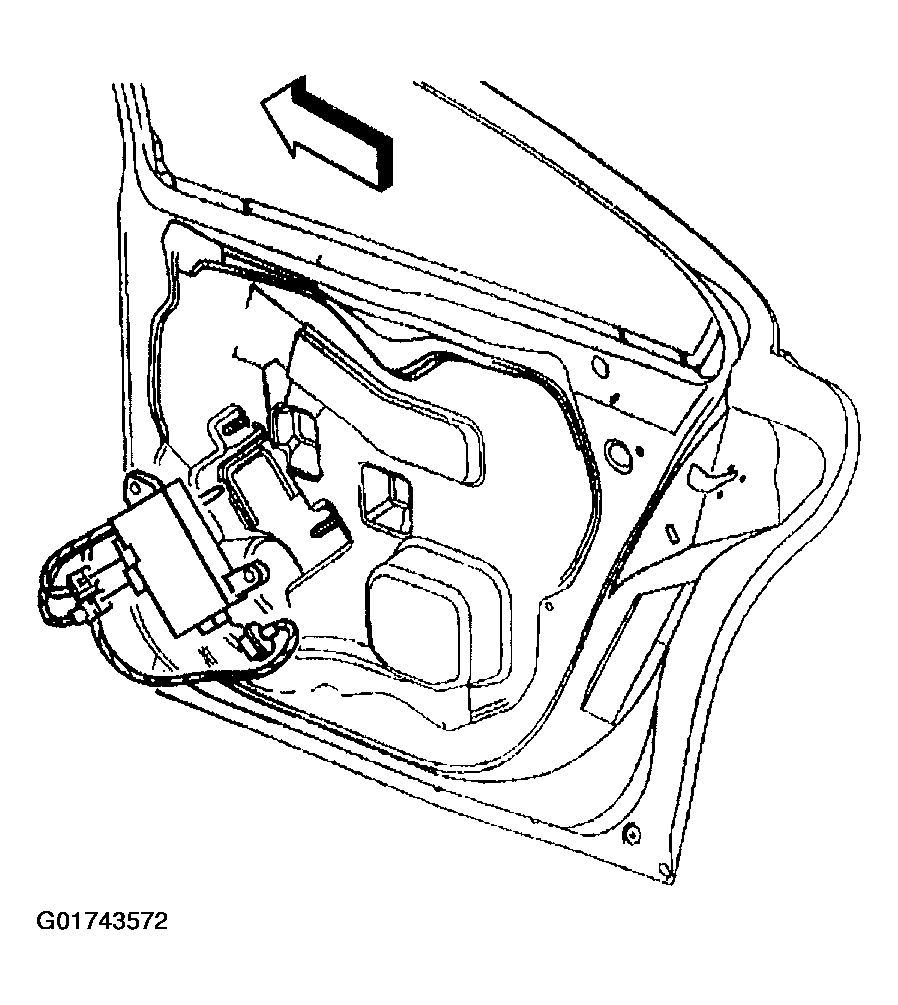

Fig 1: Removing Door Control Module
G01743572Courtesy of GENERAL MOTORS CORP.
