Removal Procedure

  1. Insert a flat bladed tool under the front edge of the switch plate (2).

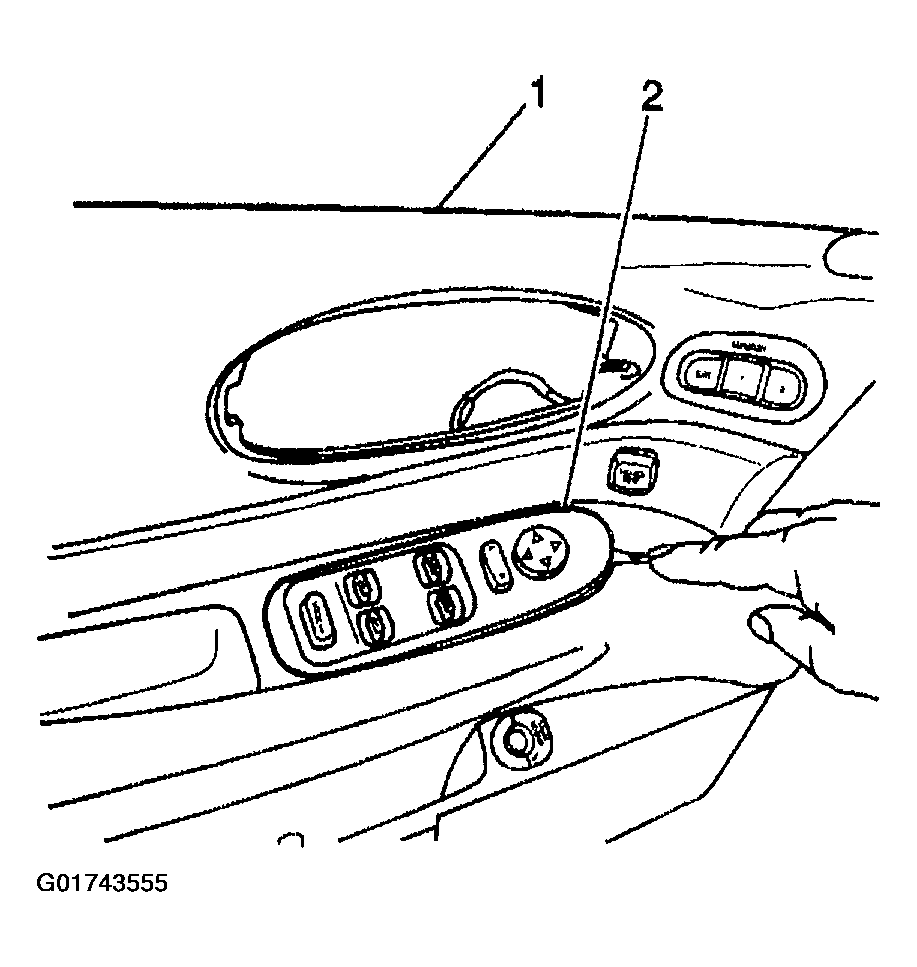

    2. Fig 1: Inserting Flat Bladed Tool Under Switch Plate Front Edge
    G01743555Courtesy of GENERAL MOTORS CORP.
  2. Gently pry upwards in order to release the front edge of the switch plate (2) from the door trim panel (1).
  3. Slide the switch plate forward in order to release the rear retainer tabs.
  4. Disconnect the electrical connectors.
  5. Remove the switchpack (2) from the switch plate (1) by releasing the retainer tabs with a small flat bladed tool.

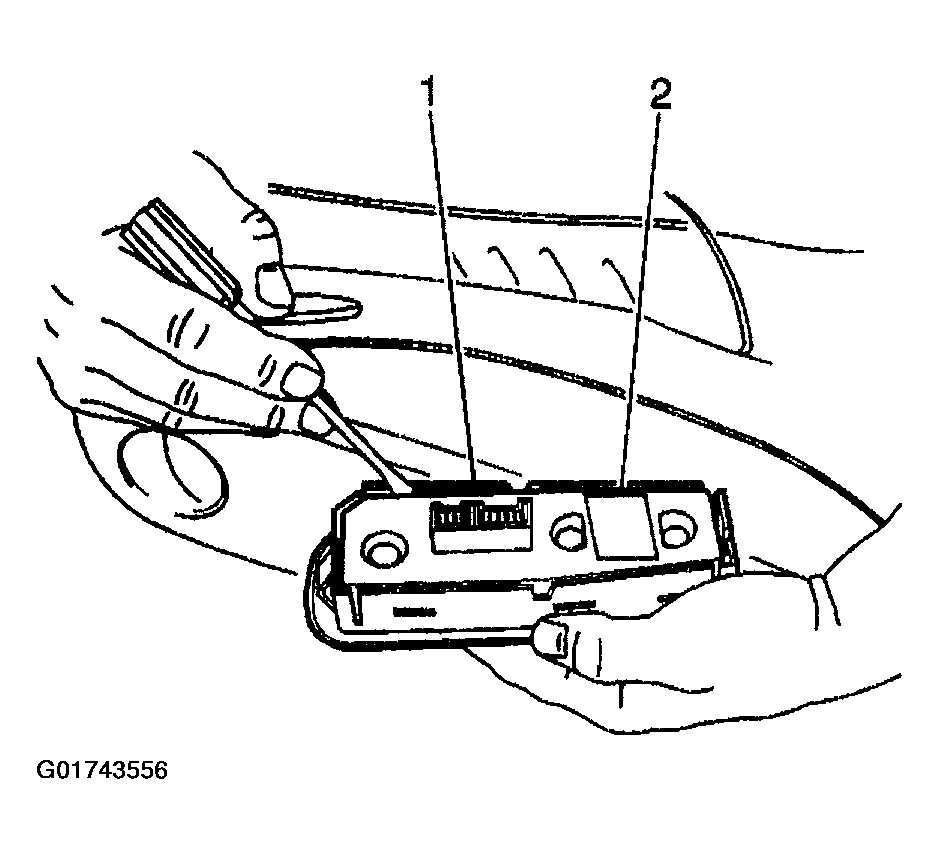

    6. Fig 2: Removing Switchpack
    G01743556Courtesy of GENERAL MOTORS CORP.
