Stationary Windows Connector End Views

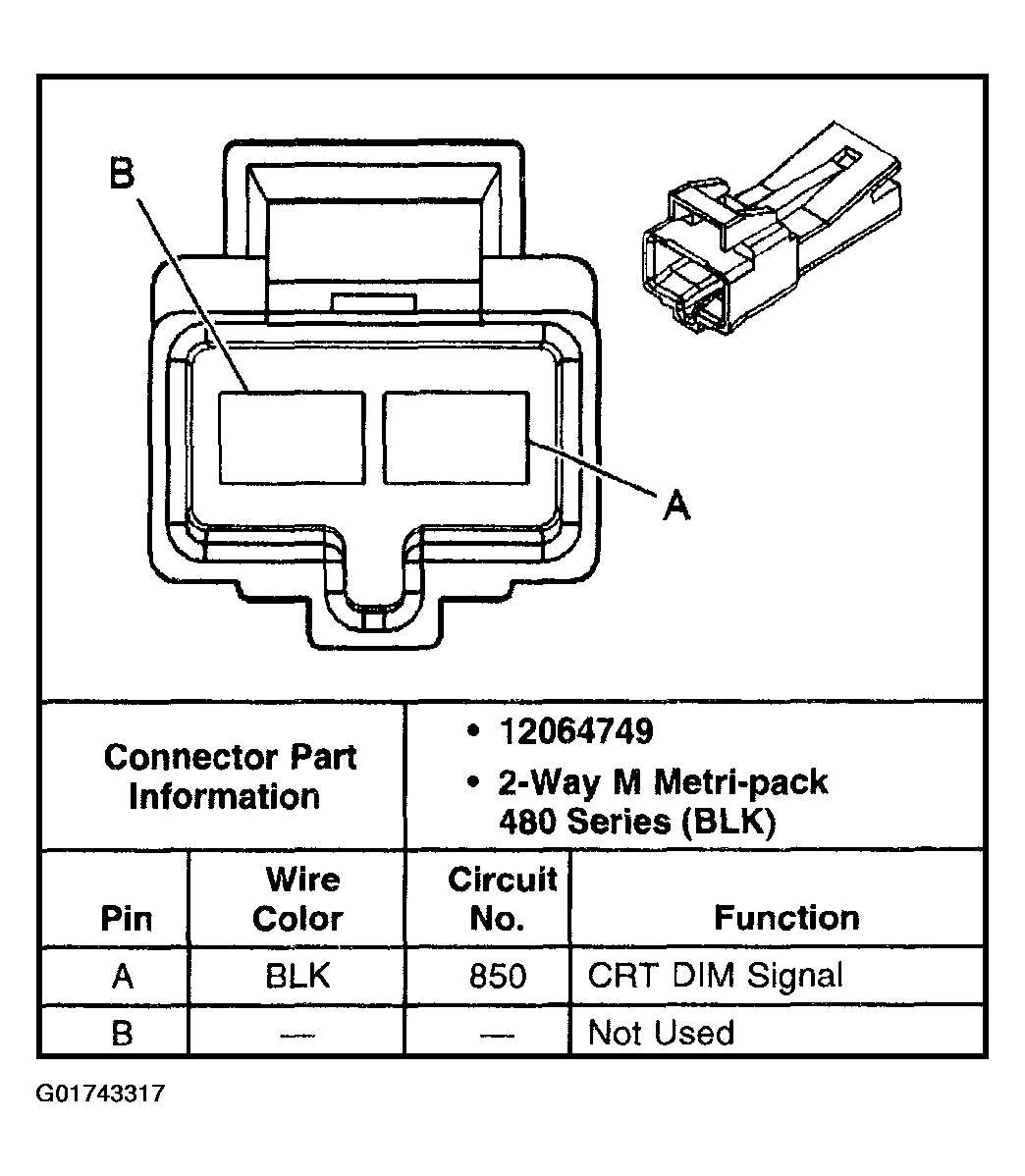

Fig 1: Rear Window Defogger Grid

Courtesy of GENERAL MOTORS CORP.

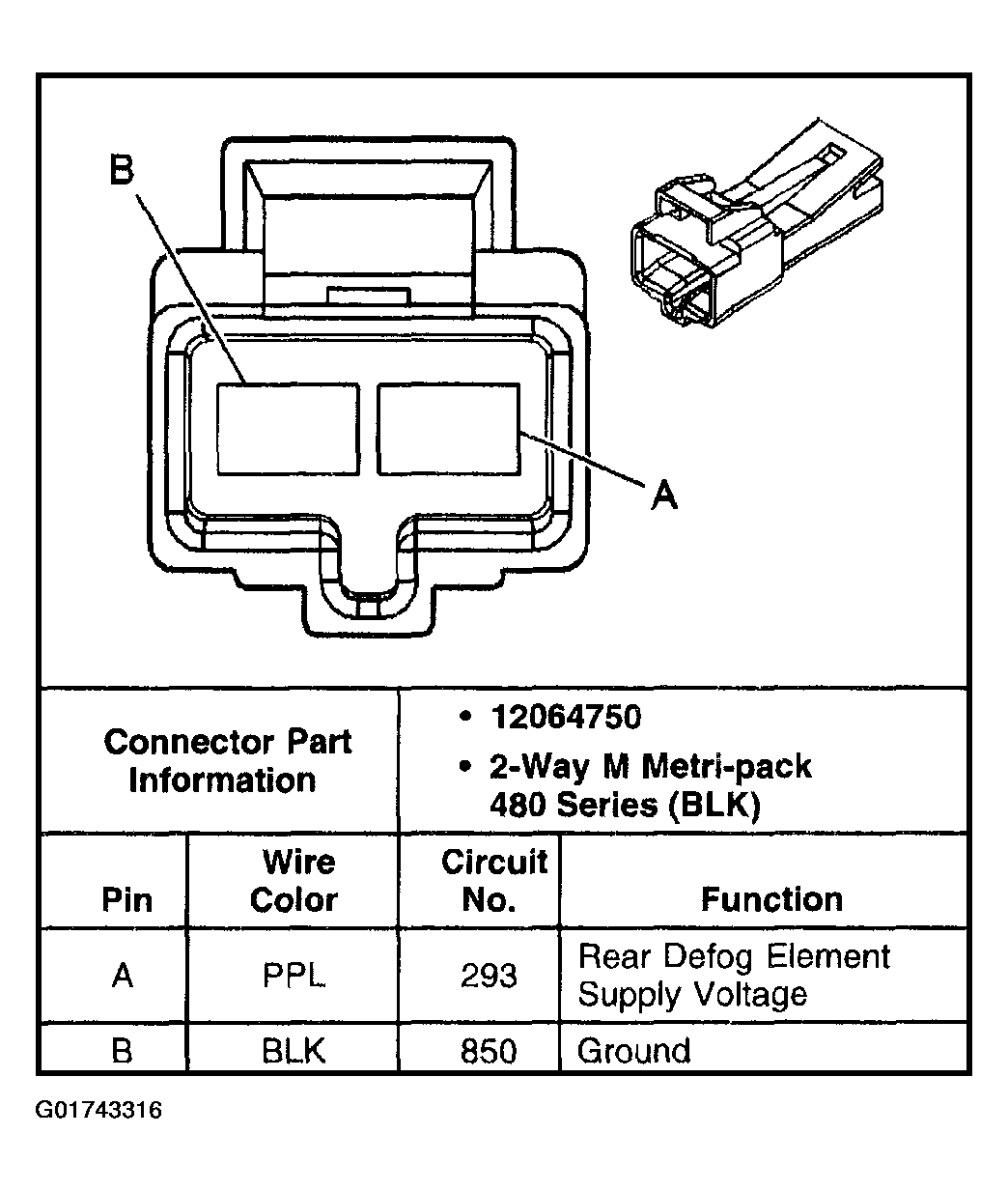

Fig 2: Rear Window Defogger Grid

Courtesy of GENERAL MOTORS CORP.

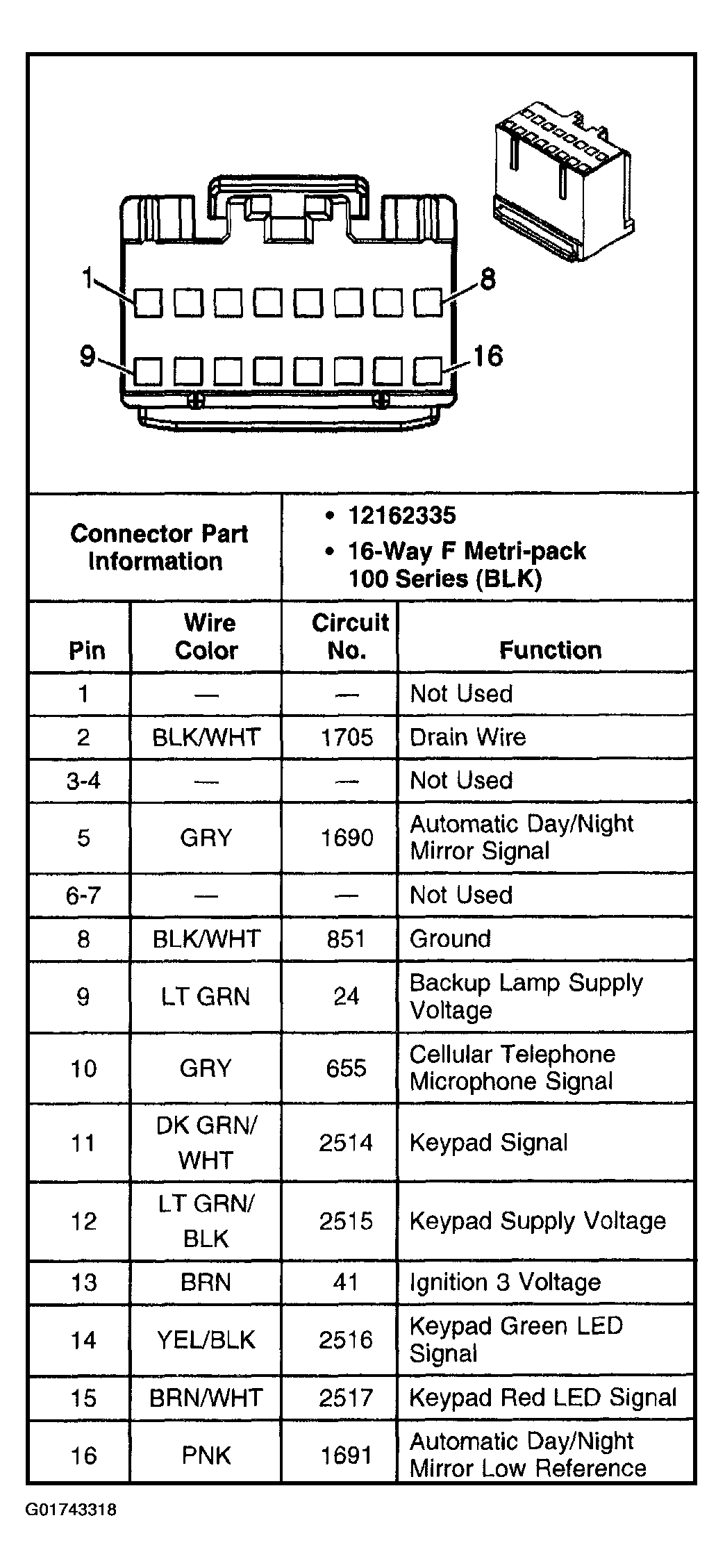

Fig 3: Inside Rear View Mirror w/DD7 Or DD8

Courtesy of GENERAL MOTORS CORP.
