Defogger Schematics

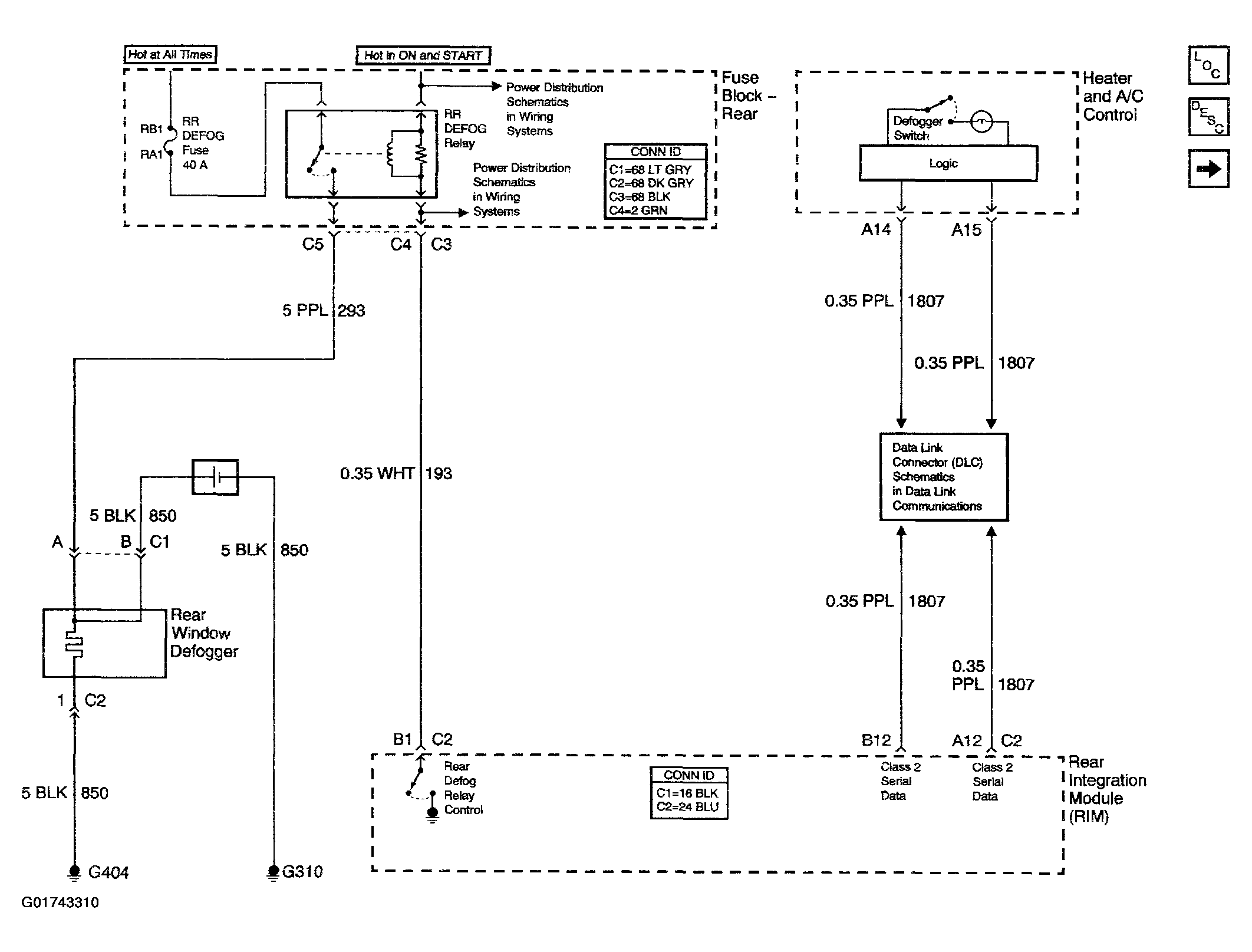

Fig 1: Rear Window Defogger
G01743310Courtesy of GENERAL MOTORS CORP.

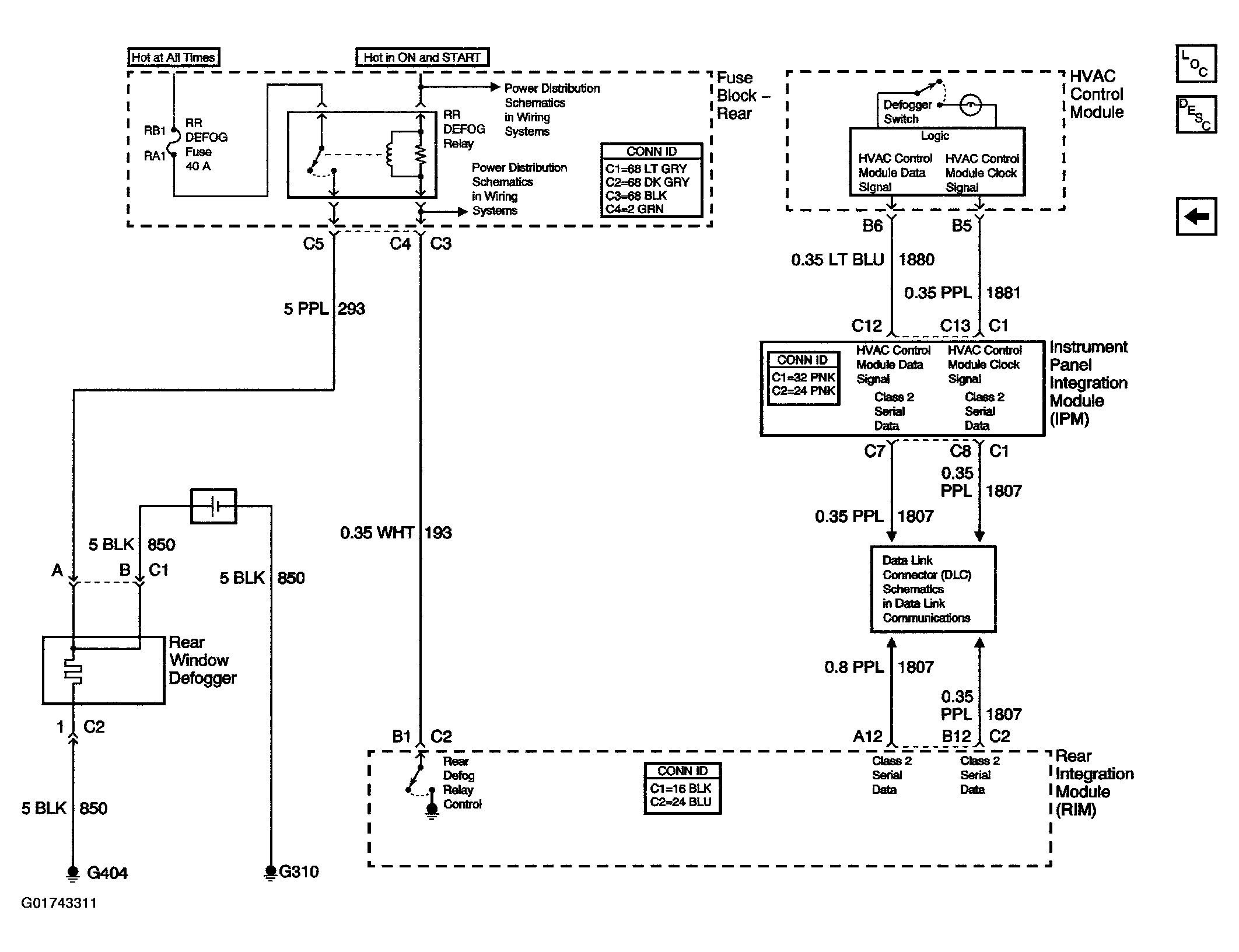

Fig 2: Defogger Schematics (w/CJ2)
G01743311Courtesy of GENERAL MOTORS CORP.
