Installation Procedure

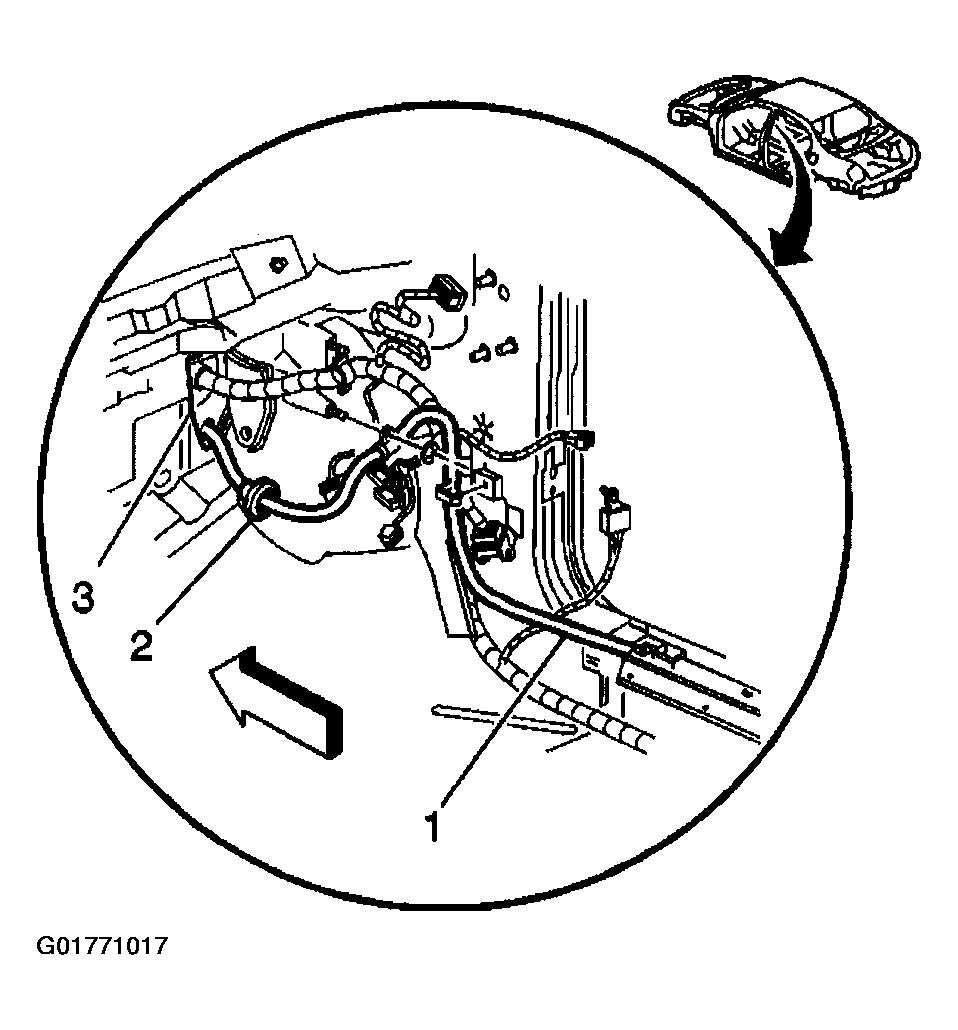

- Slide the battery cable (1) through the opening in the cowl panel (3) and seat the cable grommet (2) by pulling the cable forward into the engine compartment.

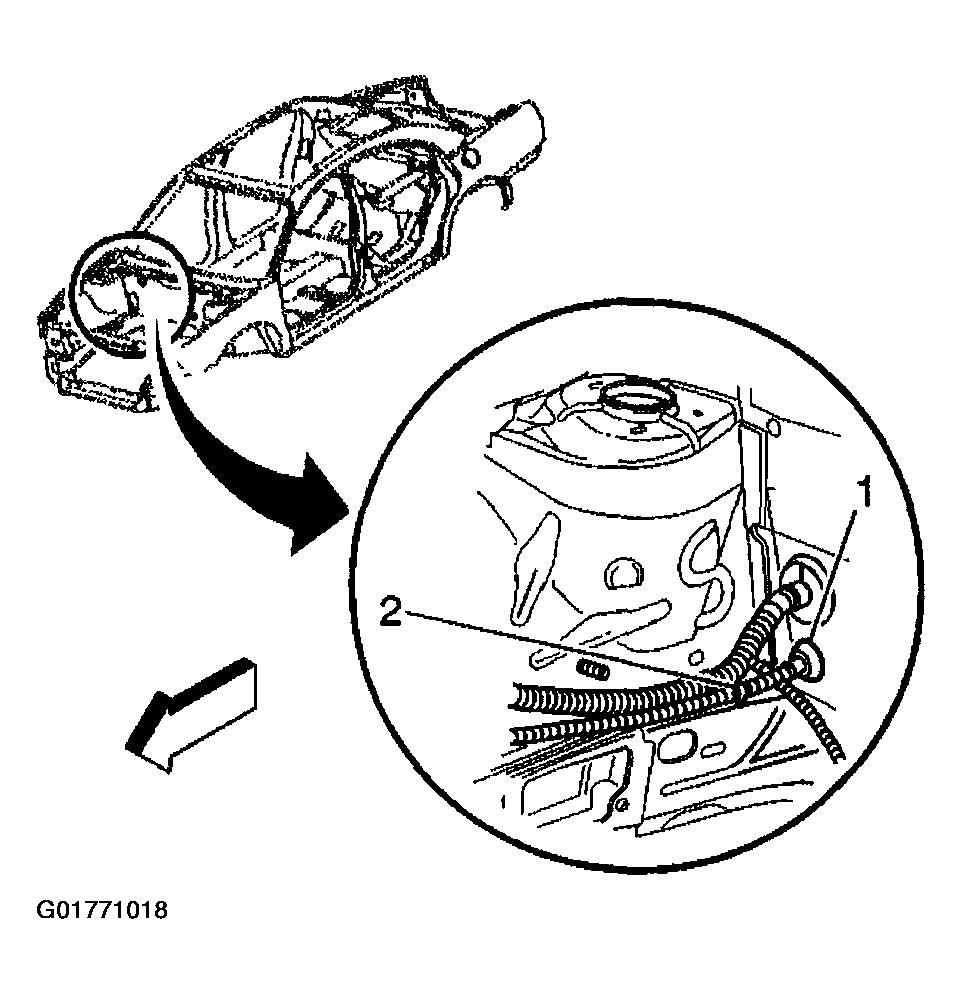

- Install the battery cable retainer to the body side rail (1).
CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

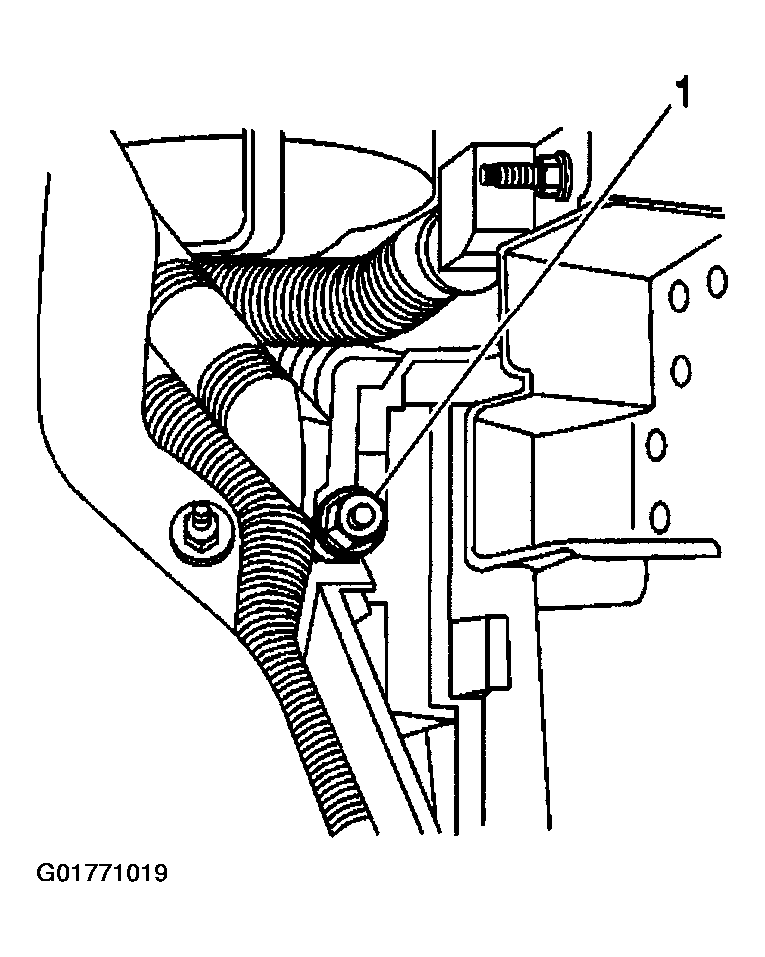

- Connect the cable to the under hood electrical center and install the nut (1). Tighten the battery cable to underhood fuse block nut to 15 N.m (11 ft lbs).

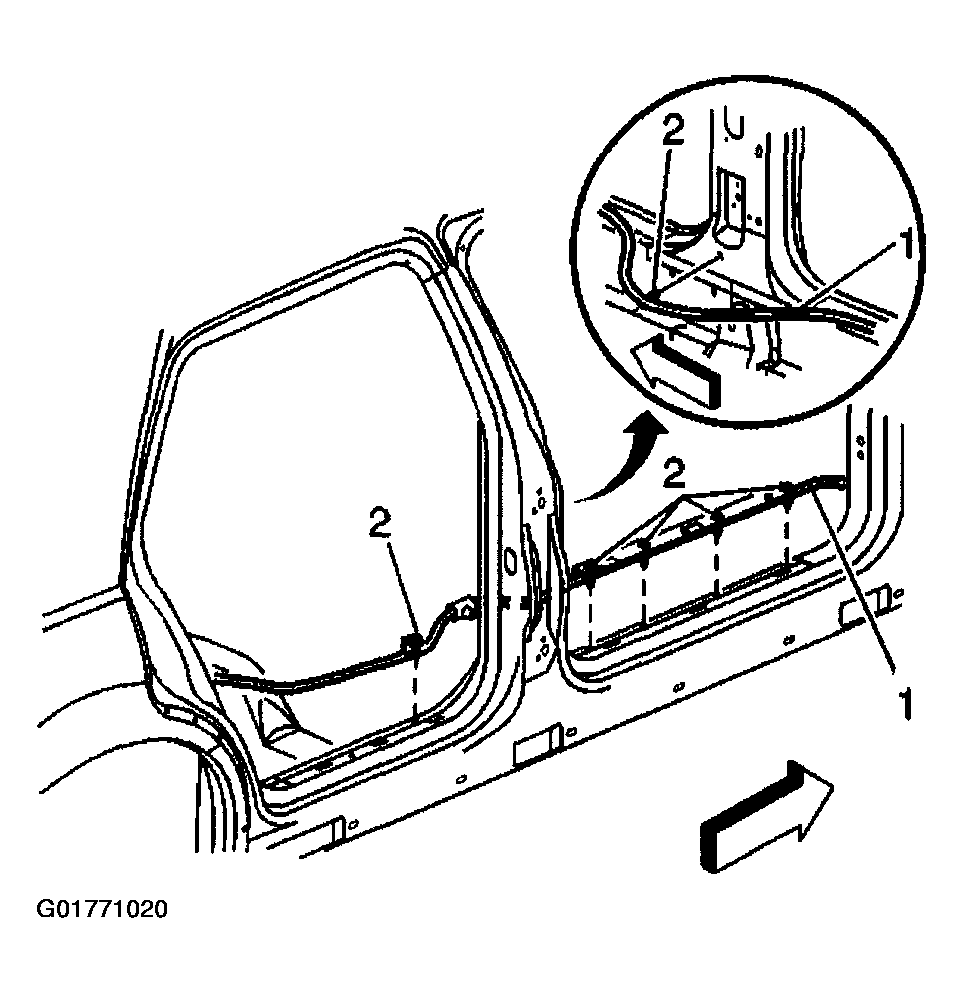

- Route the battery cable (1) along the rocker panel and install the cable retainers (2).
- Install the right closeout insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT-RIGHT in Instrument Panel, Gages and Console.
- Install the right front and rear carpet retainers. Refer to CARPET RETAINER REPLACEMENT in Interior Trim.
- Install the right side garnish molding. Refer to GARNISH MOLDING REPLACEMENT - CENTER PILLAR in Interior Trim.

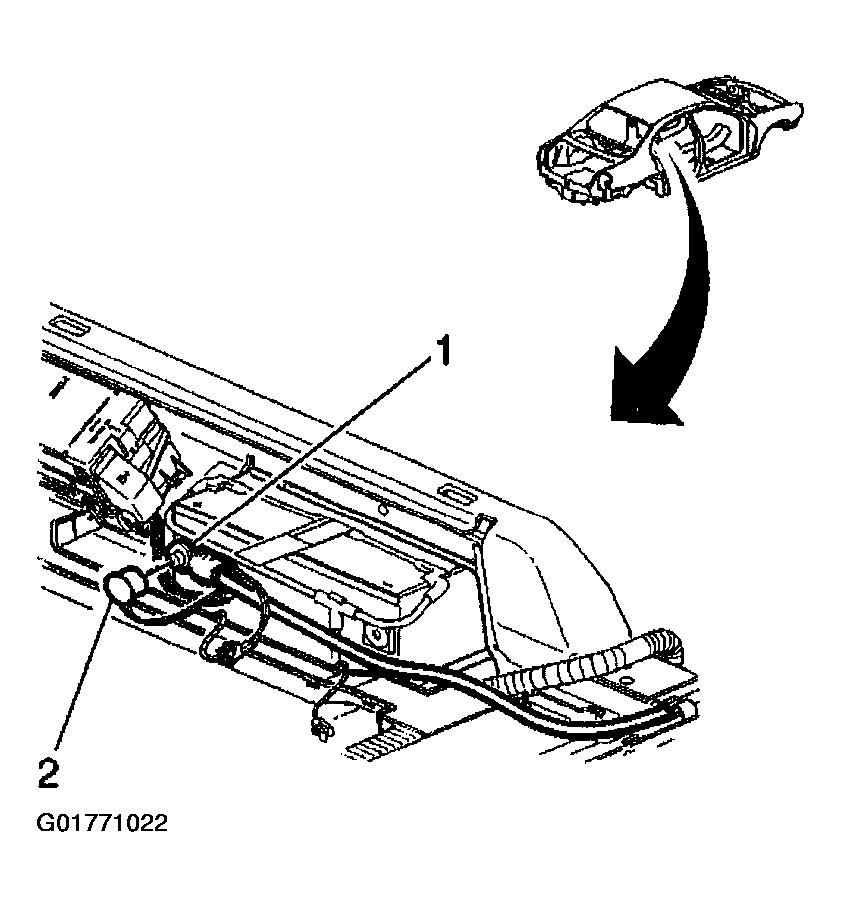

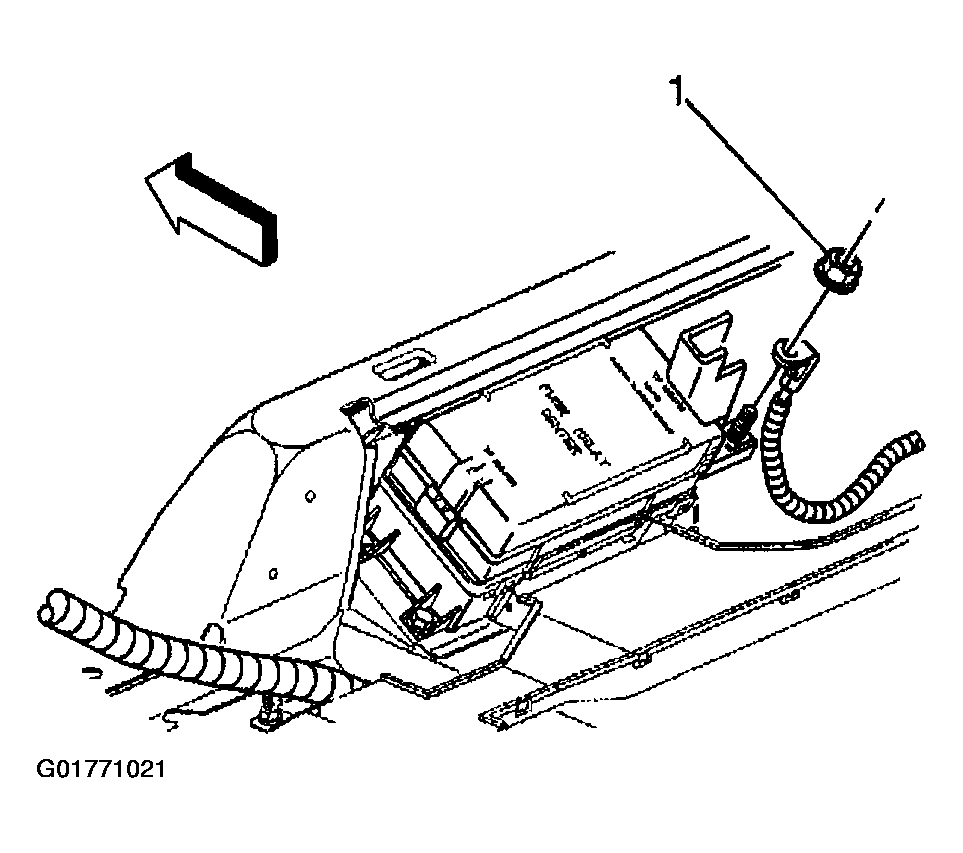

- Connect the positive battery cable to the rear fuse block. Tighten the battery cable to rear fuse block nut (1) to 15 N.m (11 ft lbs).
- Connect the positive battery cable (1) to the battery. Tighten the battery cable bolt to 17 N.m (13 ft lbs).
- Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
