Installation Procedure

  1. Install the battery.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the battery retainer and bolt. Tighten the battery retainer bolt to 17 N.m (13 ft lbs).

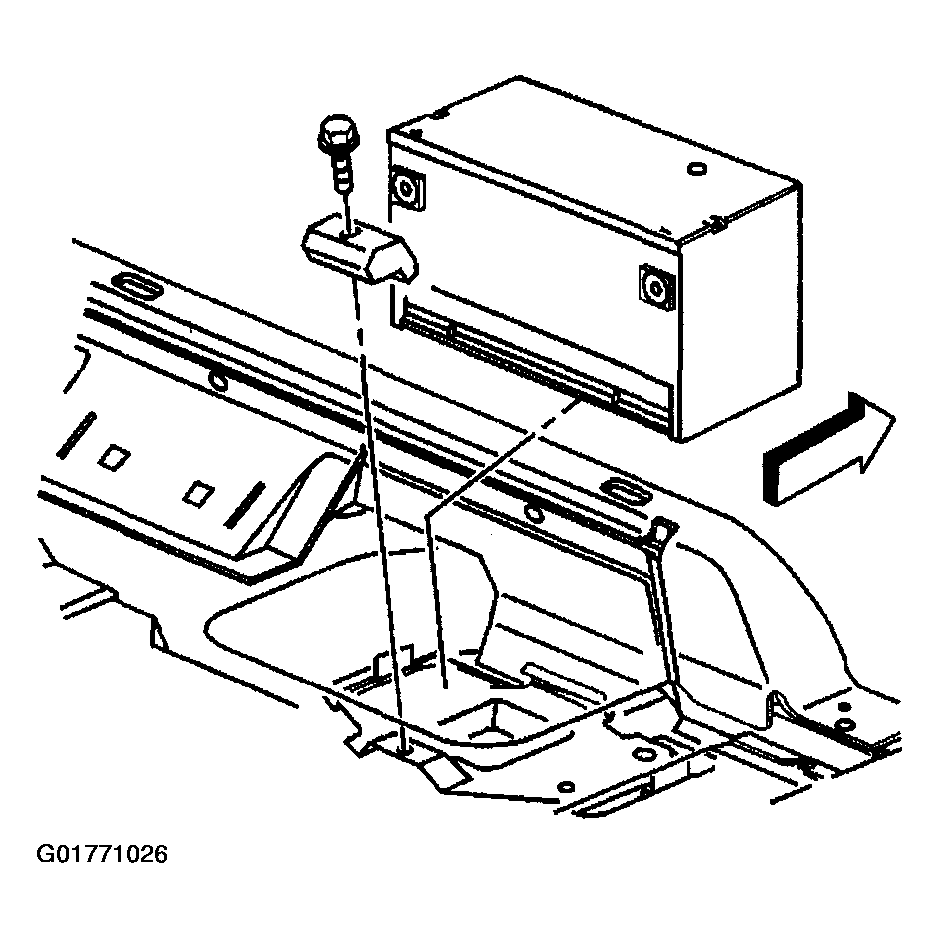

    Fig 1: Installing Battery Retainer & Bolt
    G01771026Courtesy of GENERAL MOTORS CORP.
    NOTE: Ensure the vent tube (1) is properly routed through the floor pan grommet.
  3. Install the battery vent tube (1) to the battery.

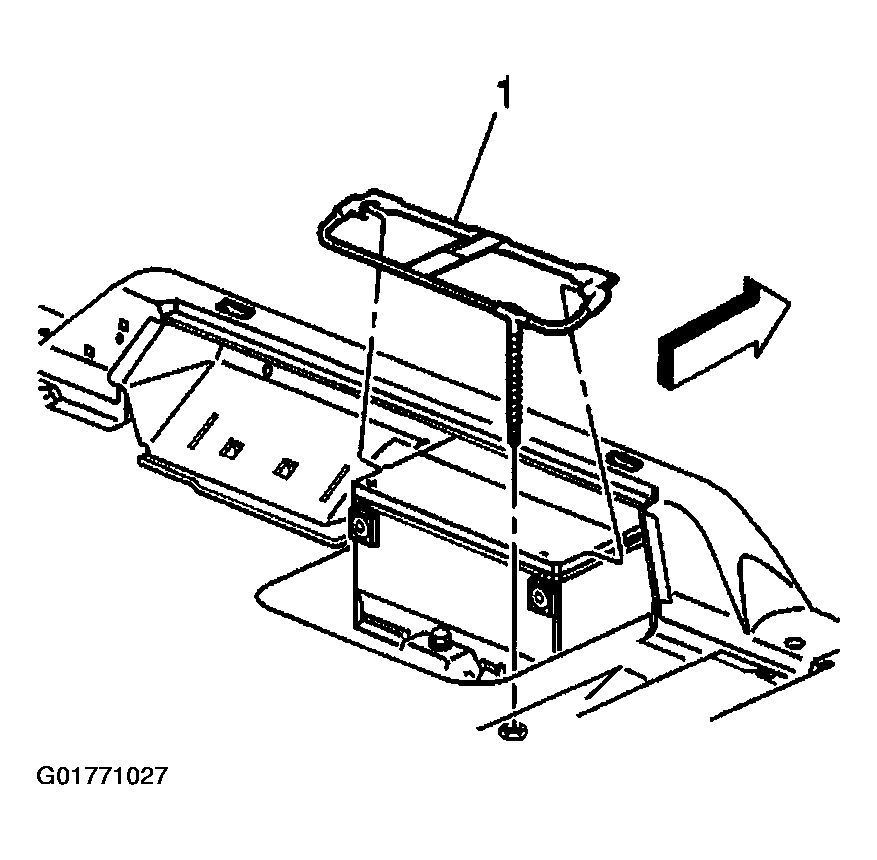

  4. Fig 2: Installing Battery Vent Tube
    G01771027Courtesy of GENERAL MOTORS CORP.
  5. Connect the battery positive cable (1) to the battery. Tighten the battery cable bolt to 17 N.m (13 ft lbs).

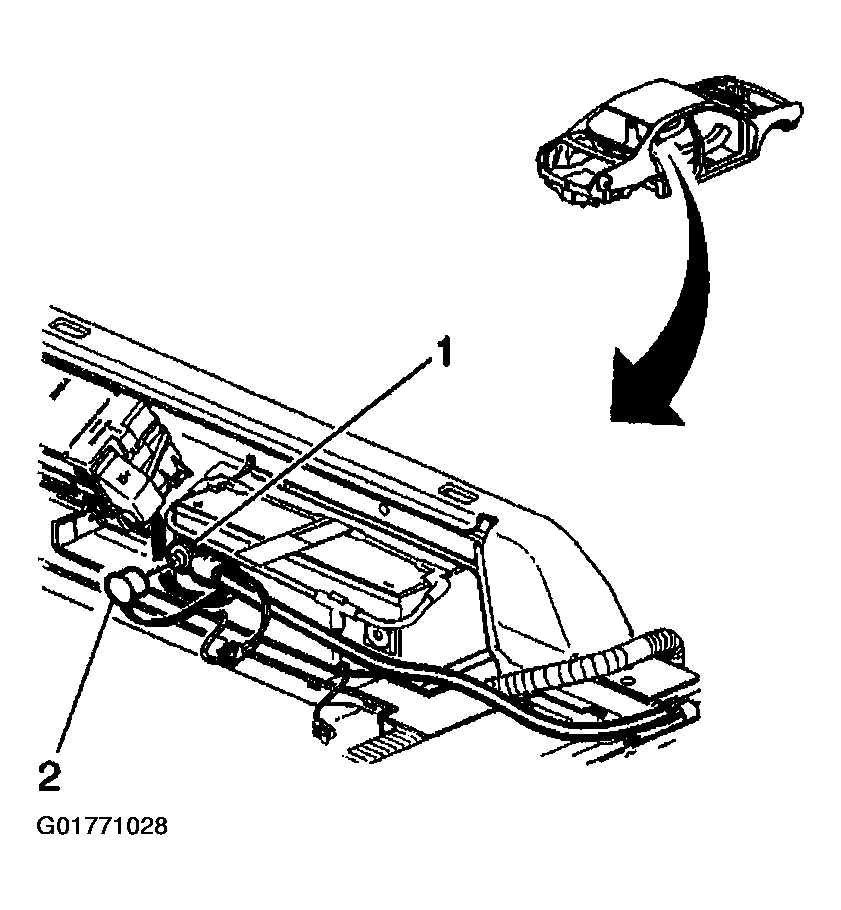

  6. Fig 3: Connecting Battery Positive Cable
    G01771028Courtesy of GENERAL MOTORS CORP.
  7. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
