Removal Procedure

  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats .
  2. Remove the rear seat belt and buckle anchor fastener.
  3. Slide the rear seat buckle anchor plate out from under the rear seat back hold-down.
  4. Remove the rear seat buckle.

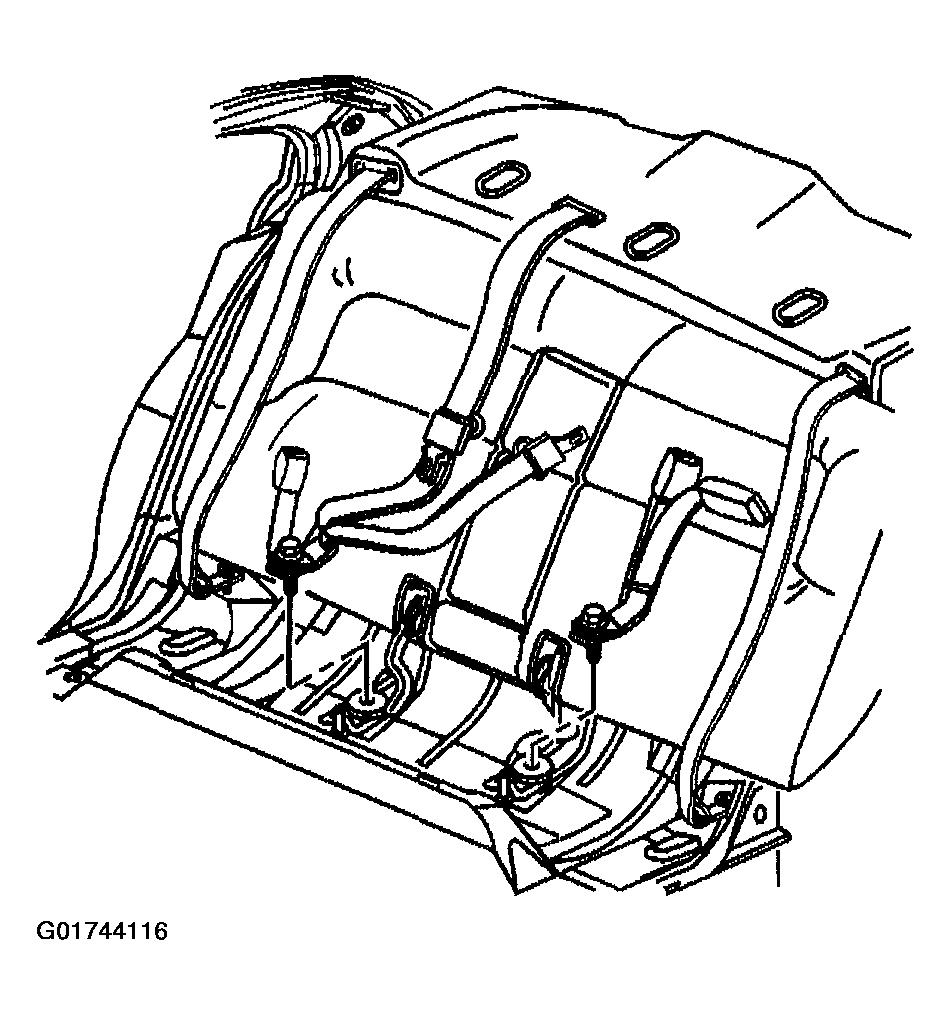

    Fig 1: Replacing Seat Belt Buckles
    G01744116Courtesy of GENERAL MOTORS CORP.
