Installation Procedure

  1. Install the power steering gear through the left wheel opening.

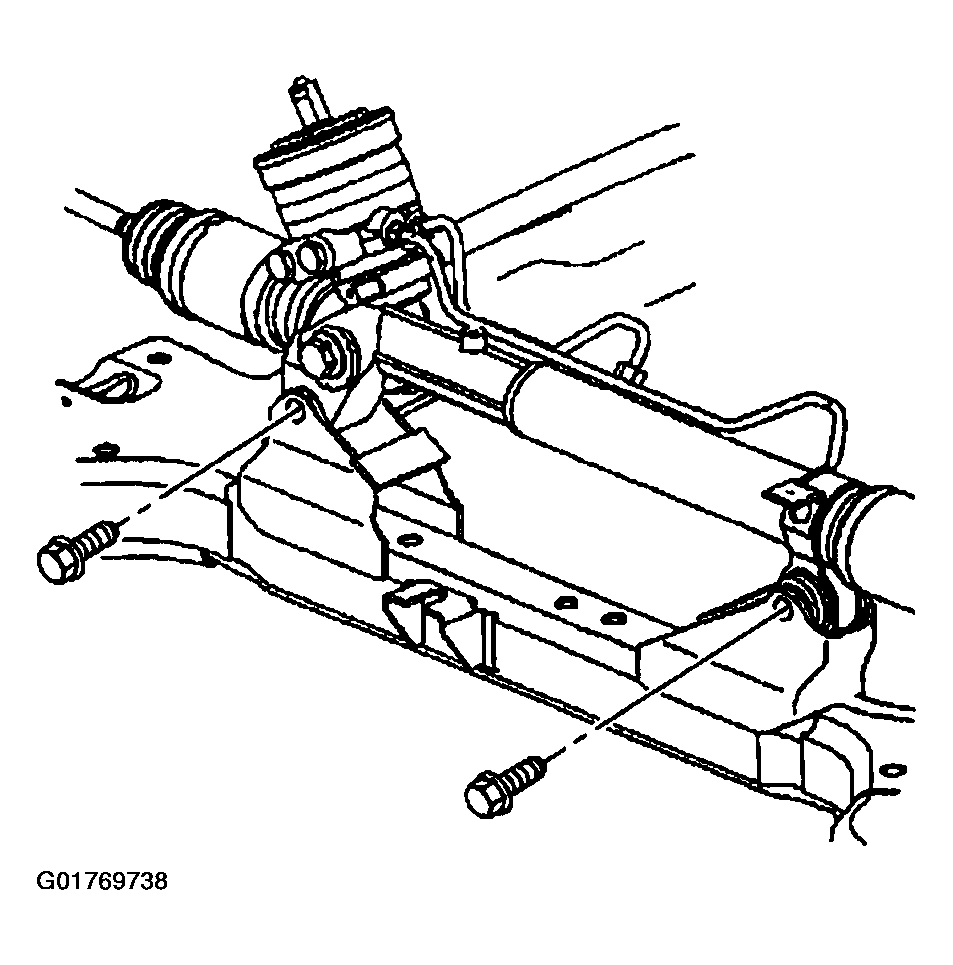

    Fig 1: Installing Power Steering Gear Through Left Wheel Opening
    G01769738Courtesy of GENERAL MOTORS CORP.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the power steering gear mounting bolts. Tighten the power steering gear mounting bolts to 95 N.m (70 ft lbs).
  3. Install the left stabilizer shaft insulator. Refer to STABILIZER SHAFT INSULATOR REPLACEMENT in Front Suspension.
  4. Install the power steering pressure and return hoses (1 & 2) to the power steering gear. Tighten the power steering pressure and return hoses to 30 N.m (22 ft lbs).

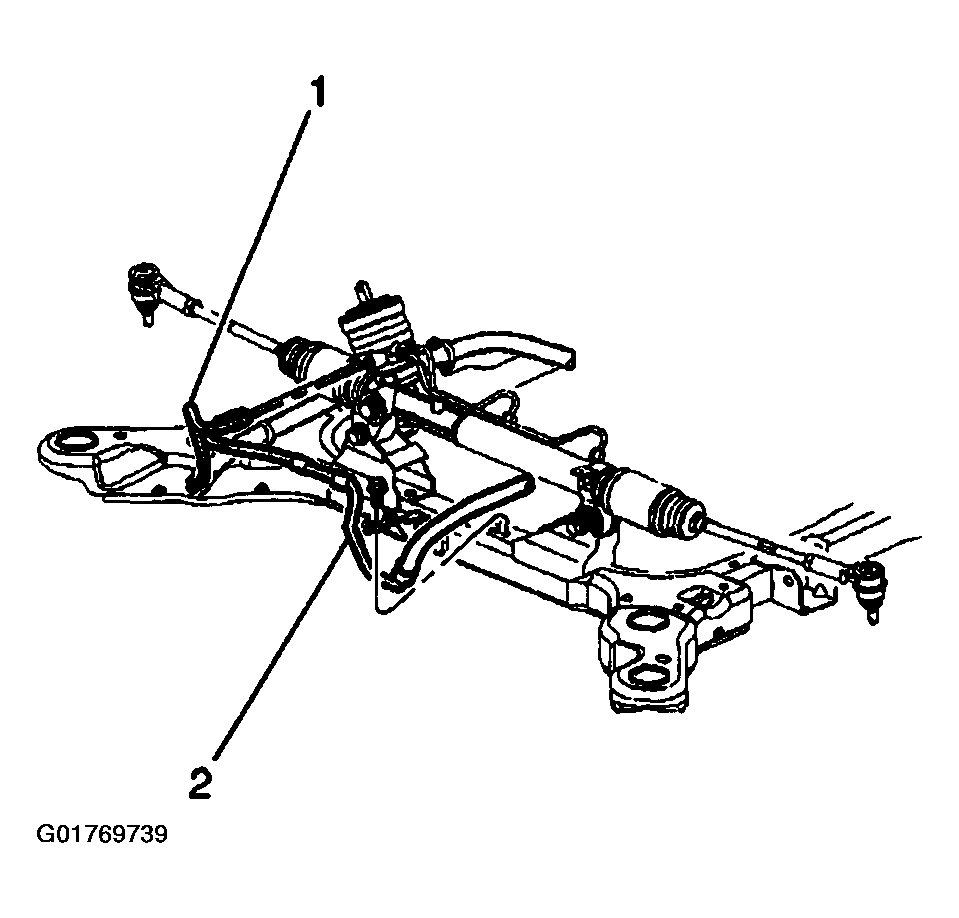

    5. Fig 2: Installing Power Steering Pressure & Return Hoses
    G01769739Courtesy of GENERAL MOTORS CORP.
  5. If equipped, connect the variable effort steering electrical connector.
  6. Install the outer tie rod (1) to the steering knuckles.
    7. Fig 3: Installing Outer Tie Rod To Steering Knuckles
    G01769740Courtesy of GENERAL MOTORS CORP.
  7. Install the outer tie rod retaining nuts. Tighten the outer tie rod retaining nuts to 70 N.m (52 ft lbs).
  8. Connect the intermediate shaft to the power steering gear.

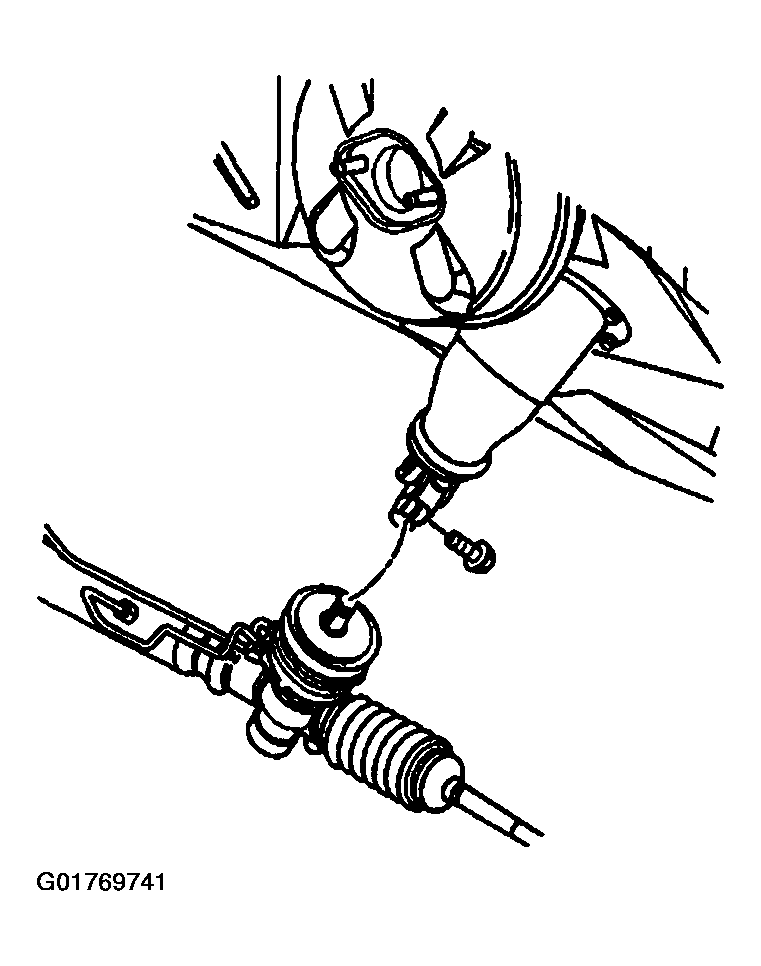

    9. Fig 4: Connecting Intermediate Shaft To Power Steering Gear
    G01769741Courtesy of GENERAL MOTORS CORP.
  9. Install the intermediate shaft lower pinch bolt. Tighten the intermediate shaft lower pinch bolt to 45 N.m (33 ft lbs).
  10. Install the tires and wheels.
  11. Lower the vehicle.
  12. Remove the J 42640 from the steering column.

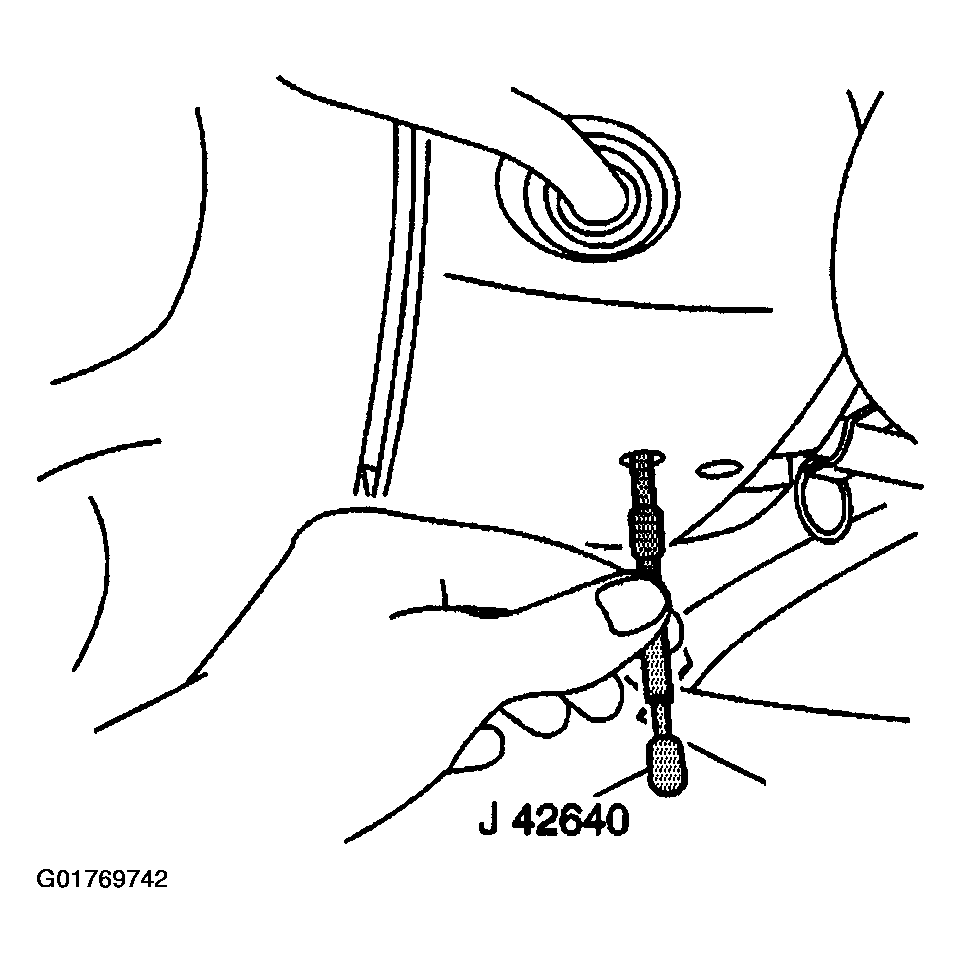

    13. Fig 5: Removing J 42640 From Steering Column
    G01769742Courtesy of GENERAL MOTORS CORP.
  13. Bleed the power steering system. Refer to BLEEDING POWER STEERING SYSTEM .
  14. Check the power steering system for leaks.
  15. Adjust the front toe. Refer to FRONT TOE ADJUSTMENT in Wheel Alignment.
