Removal Procedure
- Remove the drive belt. Refer to DRIVE BELT REPLACEMENT
in Engine Mechanical - 3.8 L.
- Raise and support the vehicle.
- Install a drain pan under the vehicle.

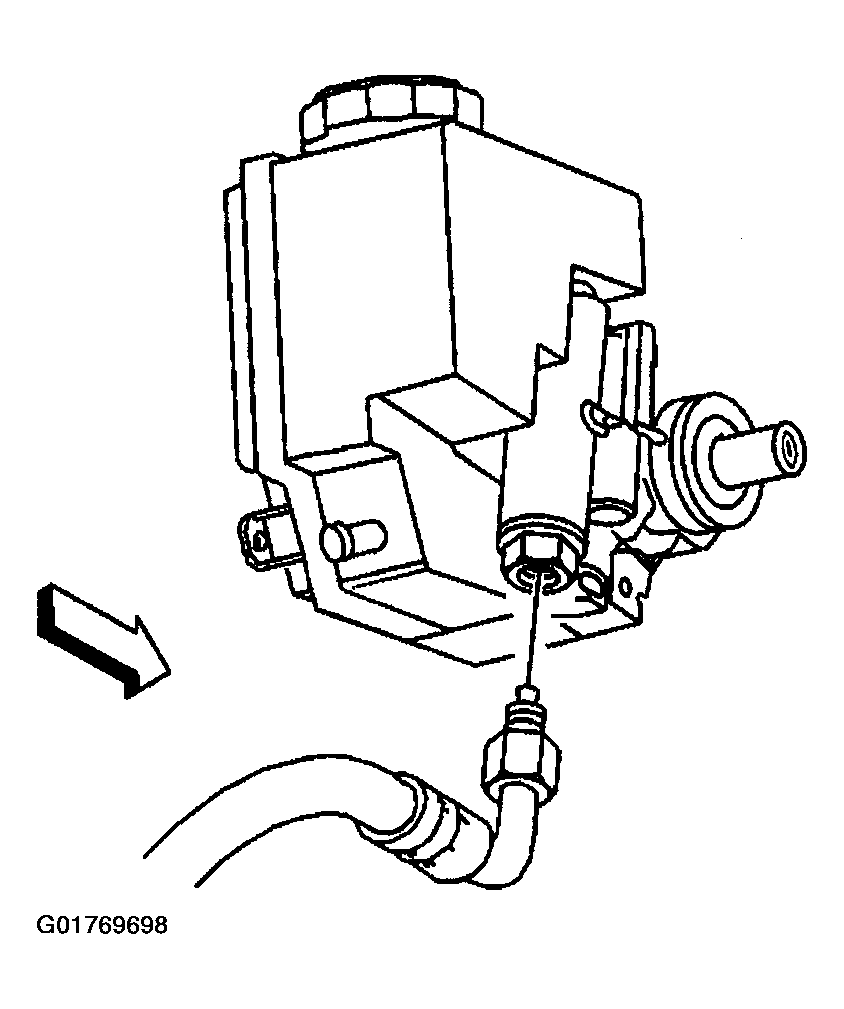

- Disconnect the power steering pressure hose from the power steering pump.
Courtesy of GENERAL MOTORS CORP.

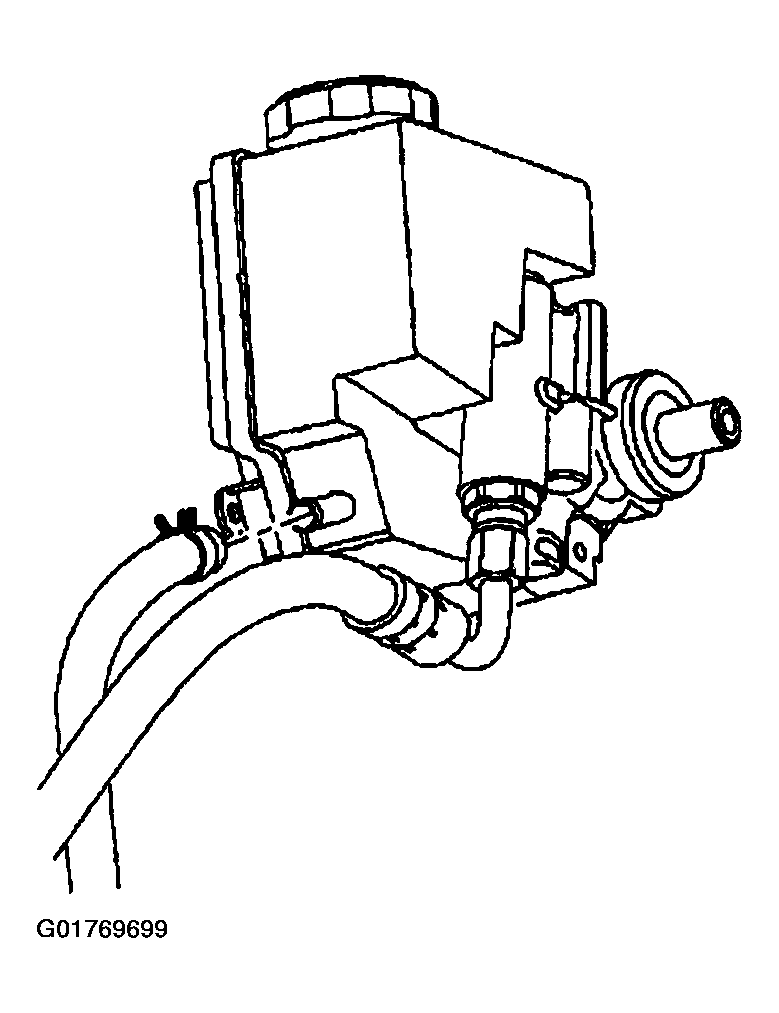

- Disconnect the power steering return hose from the power steering pump.
Courtesy of GENERAL MOTORS CORP.
- Disconnect the wiring harness from the power steering pump.
- Lower the vehicle.
- Remove the coolant recovery reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT
in Engine Cooling.

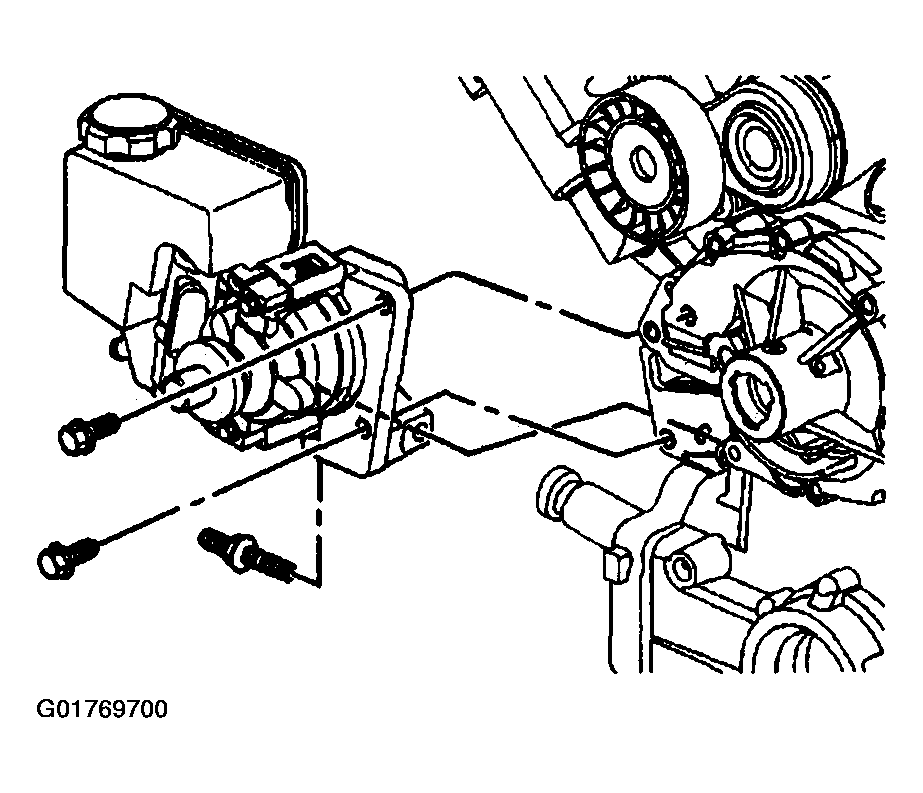

- Remove the power steering pump retaining bolts.
Courtesy of GENERAL MOTORS CORP.
- Remove the power steering pump.
- Transfer the power steering pulley as needed. Refer to POWER STEERING PULLEY REPLACEMENT .
