Automatic Level Control Suspension Connector End Views

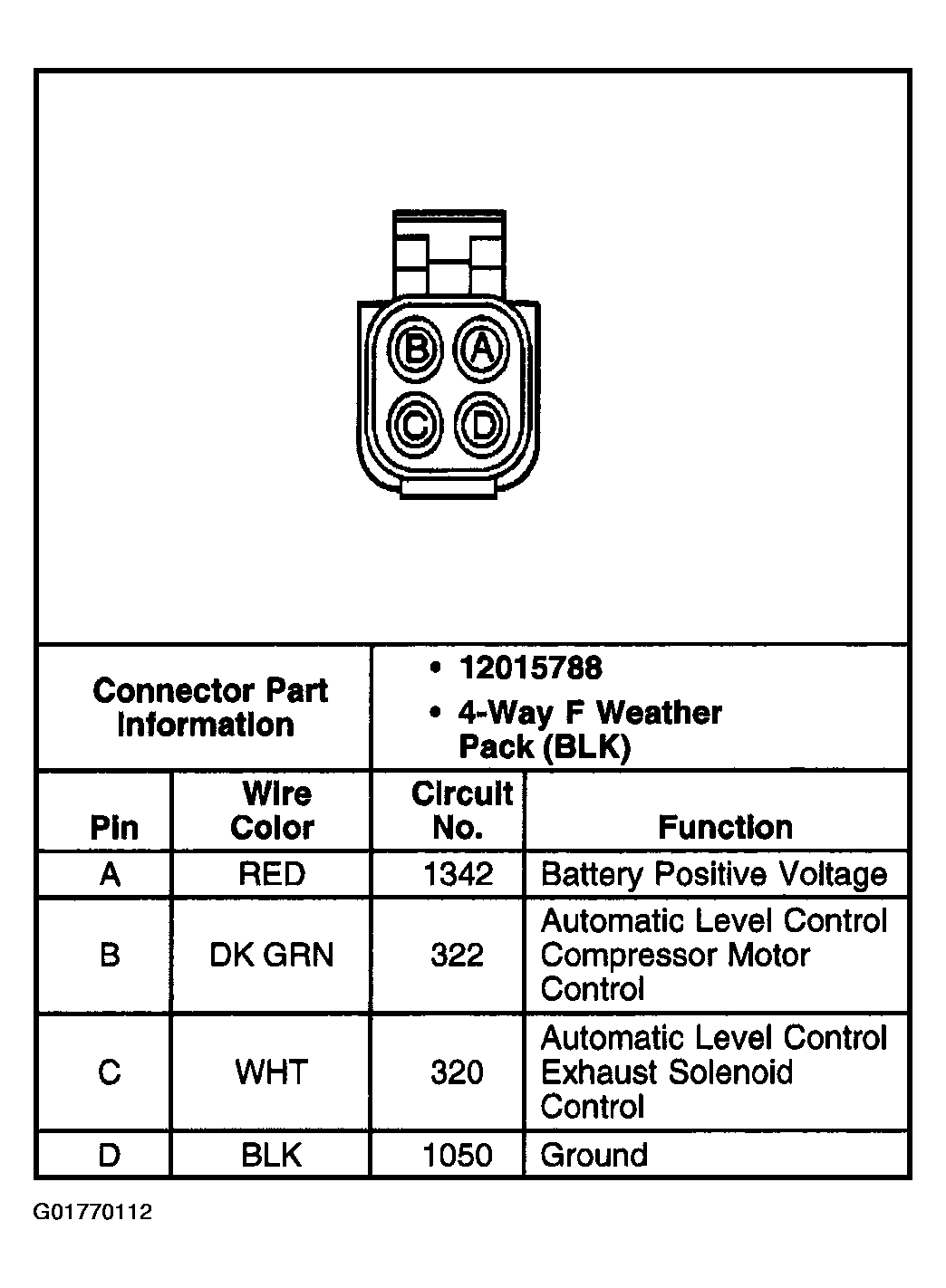

Fig 1: Automatic Level Control (ALC) Compressor
G01770112Courtesy of GENERAL MOTORS CORP.

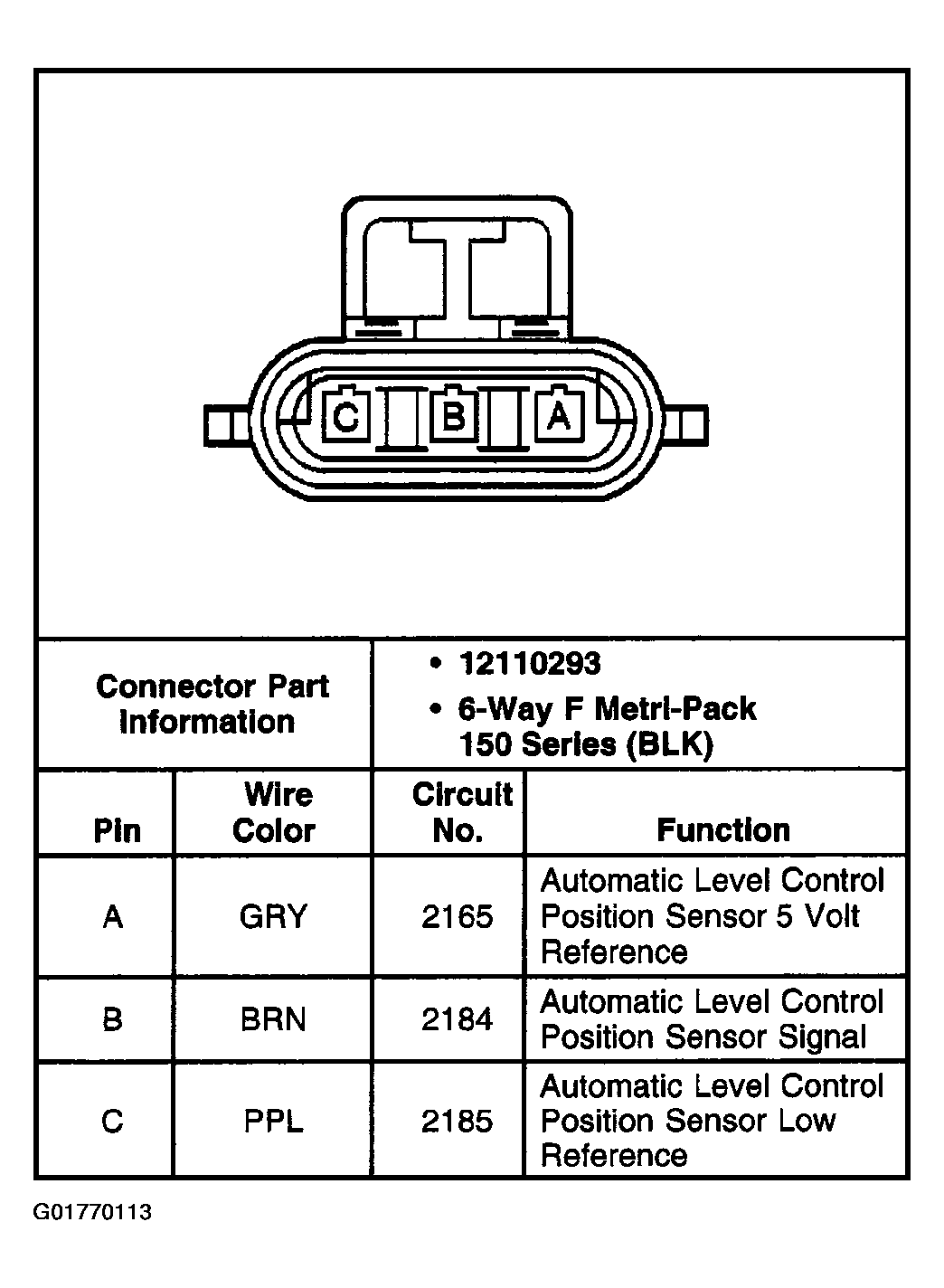

Fig 2: Automatic Level Control (ALC) Sensor
G01770113Courtesy of GENERAL MOTORS CORP.
